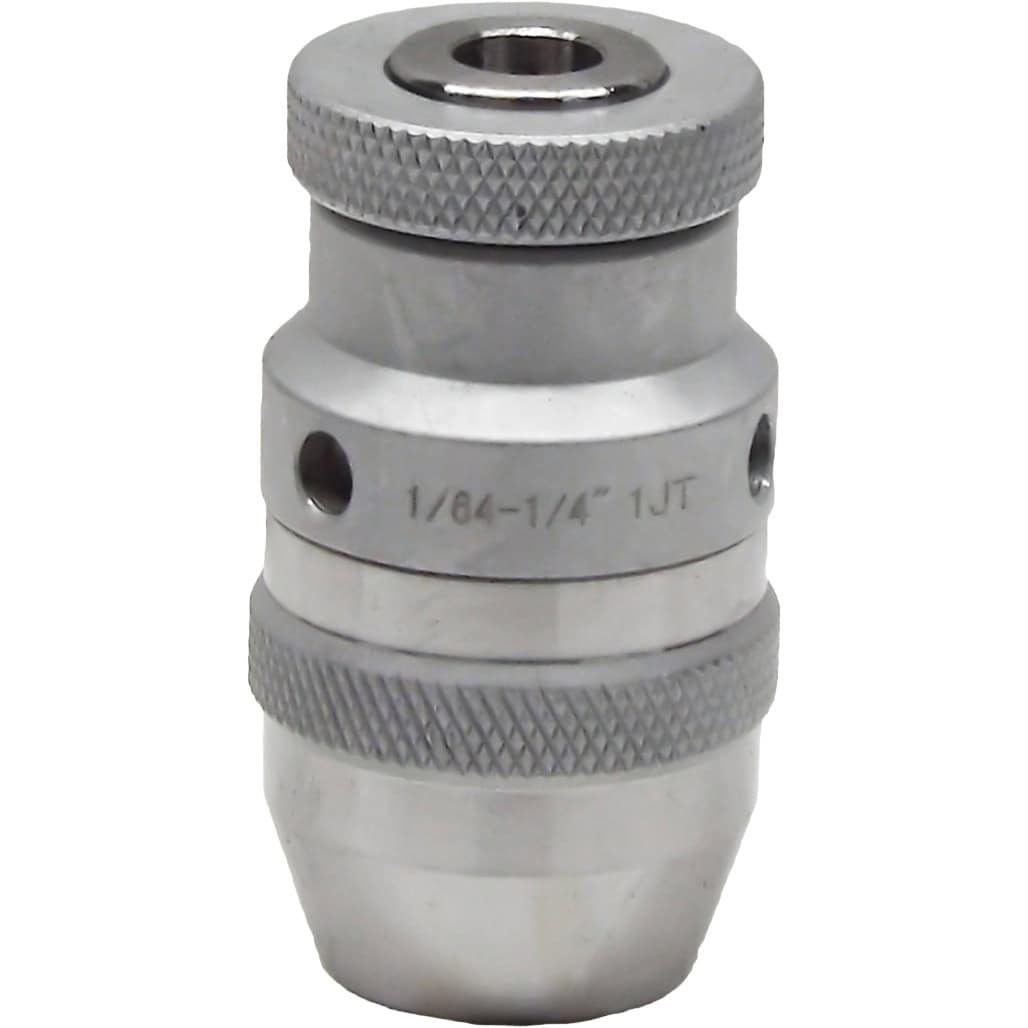

High Precision Coated Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 10,000 RPM

High Precision Coated Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 10,000 RPM - Image 2

High Precision Coated Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 10,000 RPM - Image 3

High Precision Coated Keyless Drill Chuck, 1/64″-1/4″ Capacity, JT1 Jacobs Taper, 10,000 RPM

$112.42

SKU: D0042

Availability: 5 in stock

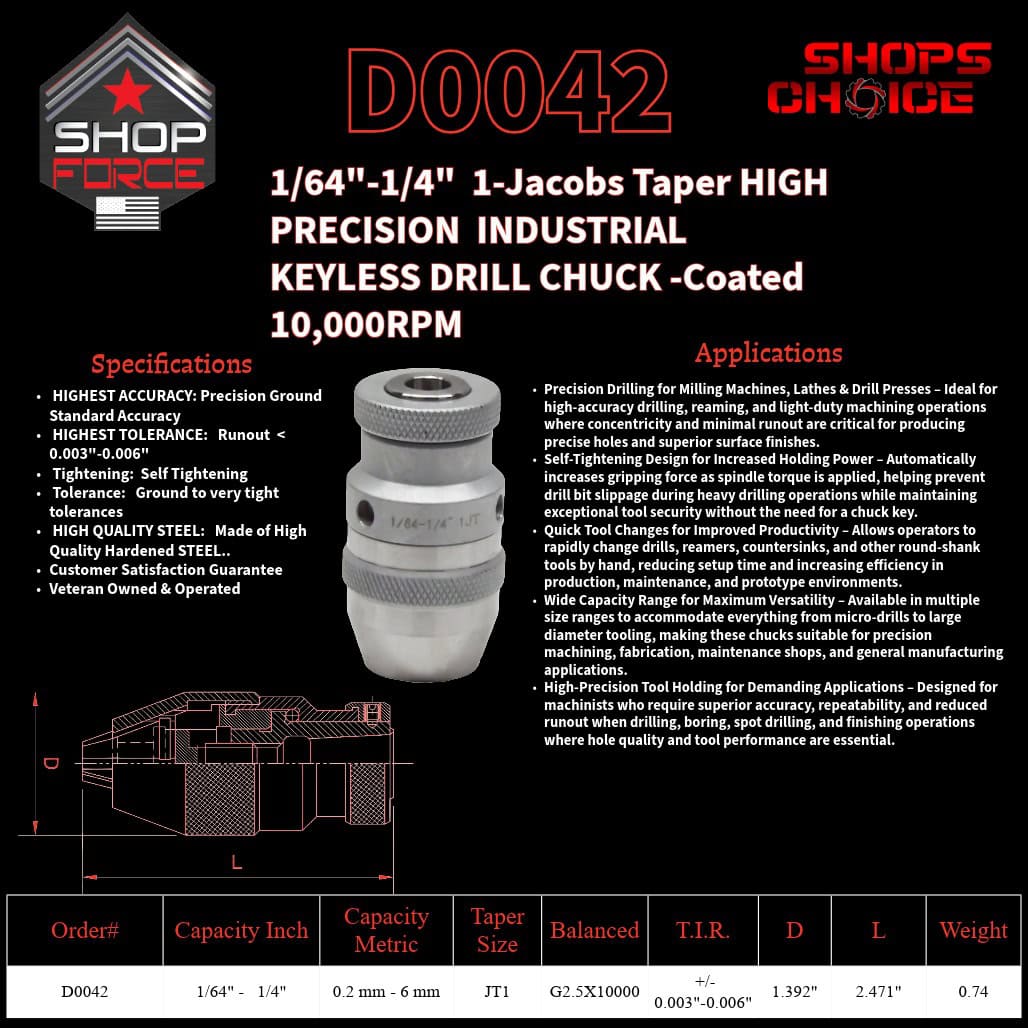

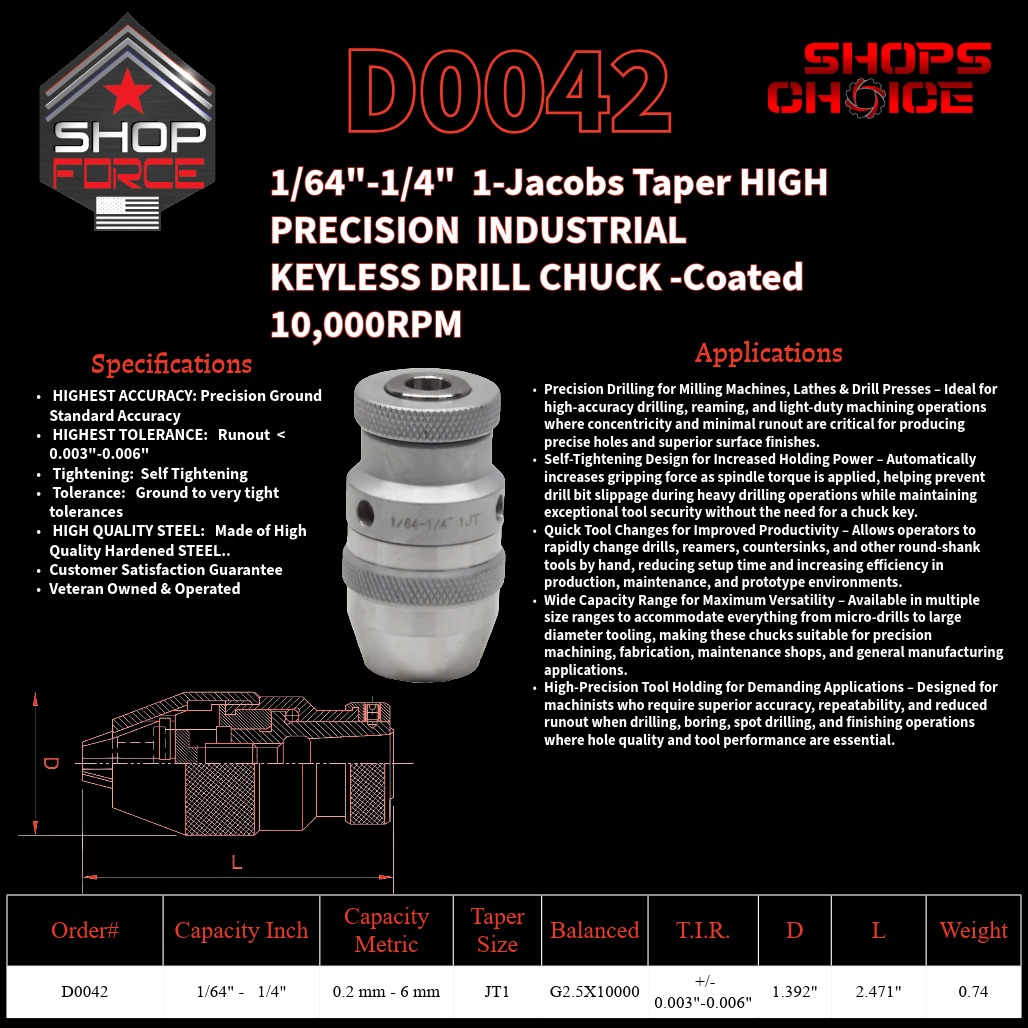

Shop-Force High Precision Coated Industrial Keyless Drill Chuck (D0042). 1/64″-1/4″ 1-Jacobs Taper HIGH PRECISION INDUSTRIAL KEYLESS DRILL CHUCK -Coated 10,000RPM. Designed for reliable, keyless tool gripping and drilling operations. See the product specifications and full high precision coated comparison chart for capacities, mounting taper and dimensions.

Specifications & Tolerances

HIGHEST ACCURACY: Precision Ground Standard Accuracy
HIGHEST TOLERANCE: Runout < 0.003"-0.006"
Coated: Nickel Coated
Tightening: Self Tightening
Tolerance: Ground to very tight tolerances
HIGH QUALITY STEEL: Made of High Quality Hardened STEEL..
custom Satisfaction Guarantee
Veteran Owned Business

Applications

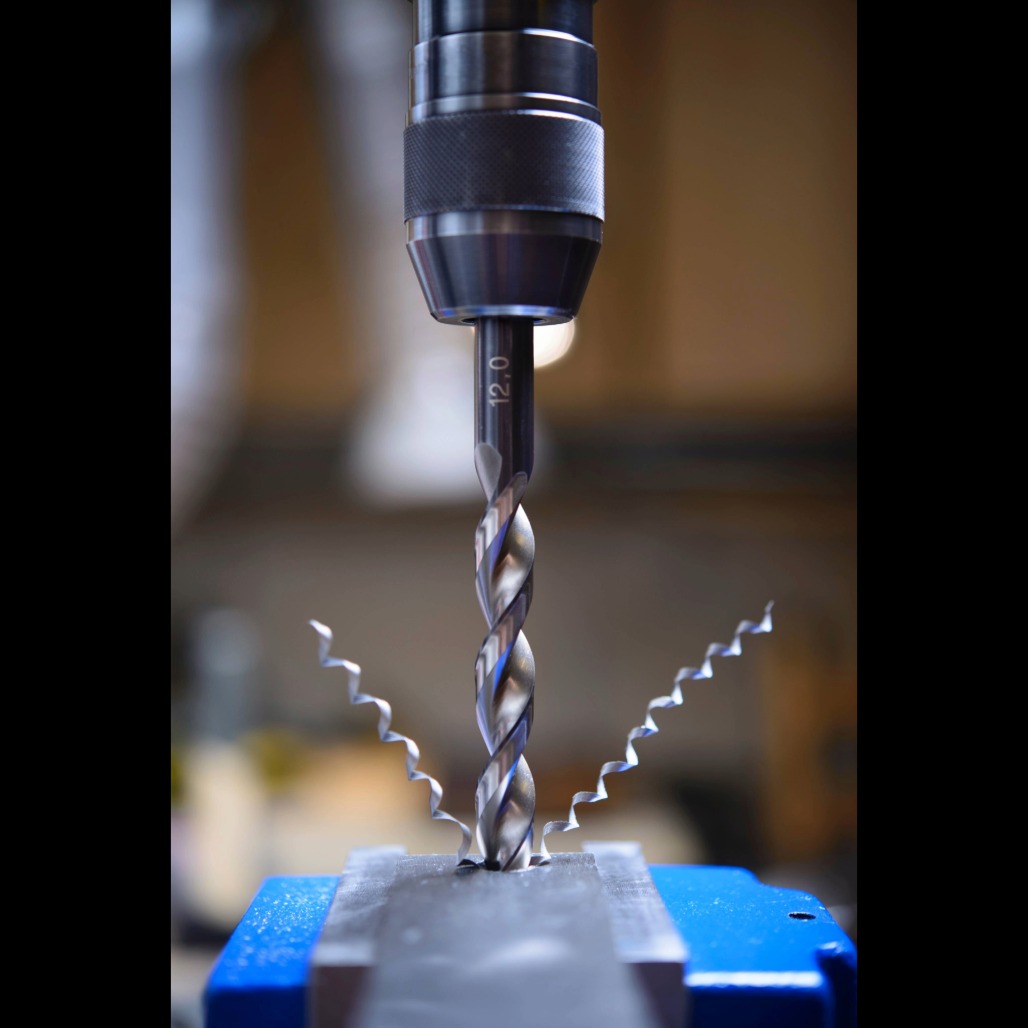

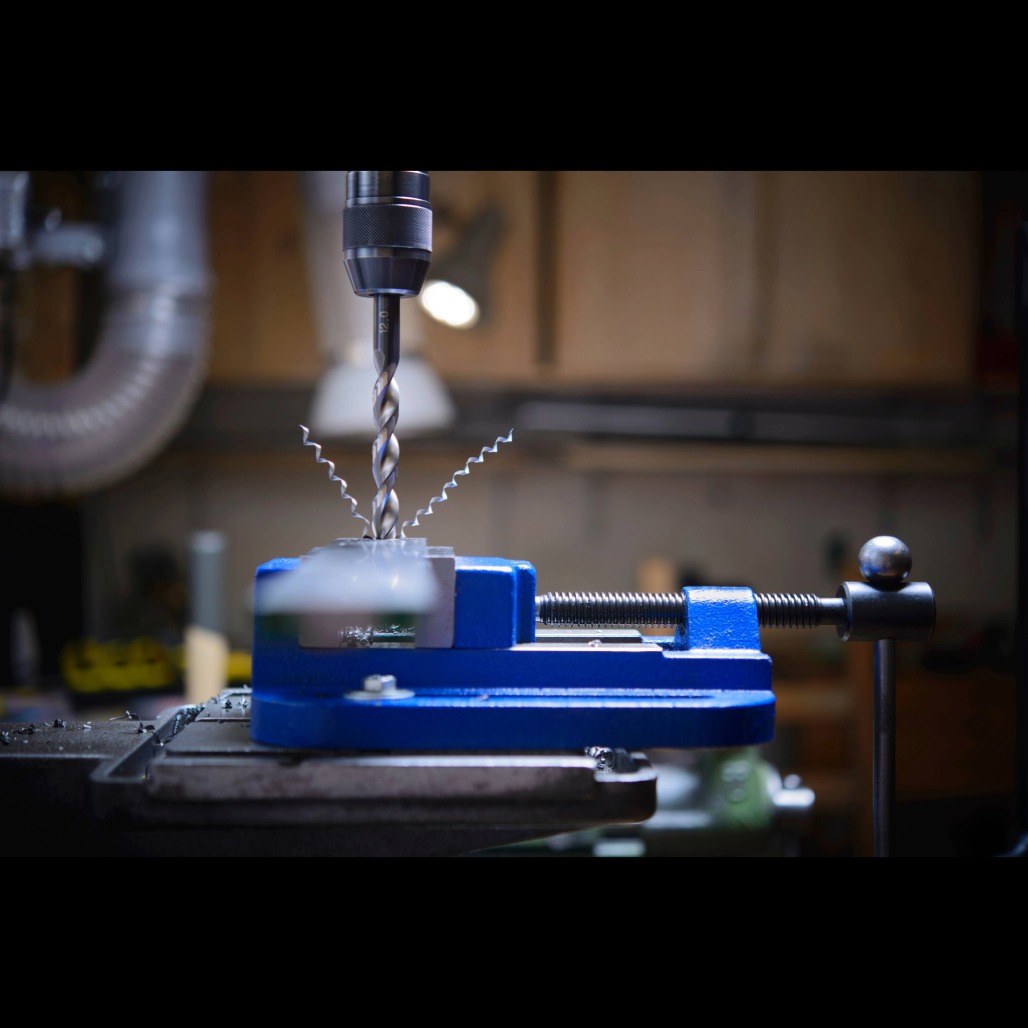

Precision Drilling for Milling Machines, Lathes & Drill Presses – Ideal for high-accuracy drilling, reaming, and light-duty machining operations where concentricity and minimal runout are critical for producing precise holes and superior surface finishes.
Self-Tightening Design for Increased Holding Power – Automatically increases gripping force as spindle torque is applied, helping prevent drill bit slippage during heavy drilling operations while maintaining exceptional tool security without the need for a chuck key.
Quick Tool Changes for Improved Productivity – Allows operators to rapidly change drills, reamers, countersinks, and other round-shank tools by hand, reducing setup time and increasing efficiency in production, maintenance, and prototype environments.
Wide Capacity Range for Maximum Versatility – Available in multiple size ranges to accommodate everything from micro-drills to large diameter tooling, making these chucks suitable for precision machining, fabrication, maintenance shops, and general manufacturing applications.
High-Precision Tool Holding for Demanding Applications – Designed for machinists who require superior accuracy, repeatability, and reduced runout when drilling, boring, spot drilling, and finishing operations where hole quality and tool performance are essential.

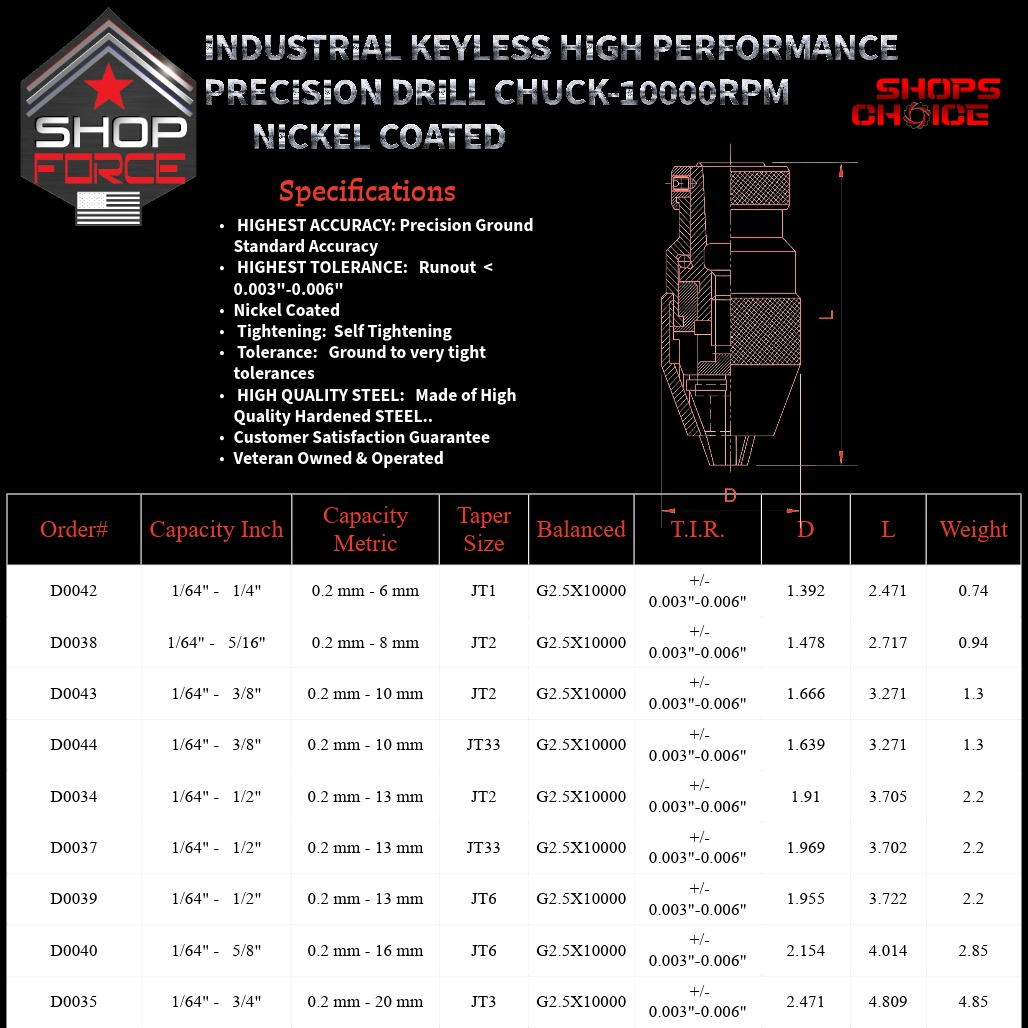

Order#	Capacity Inch	Capacity Metric	Taper Size	Balanced	T.I.R.	D	L	Weight
D0042	1/64" – 1/4"	0.2 mm – 6 mm	JT1	G2.5X10000	+/- 0.003"-0.006"	1.392	2.471	0.74
D0038	1/64" – 5/16"	0.2 mm – 8 mm	JT2	G2.5X10000	+/- 0.003"-0.006"	1.478	2.717	0.94
D0043	1/64" – 3/8"	0.2 mm – 10 mm	JT2	G2.5X10000	+/- 0.003"-0.006"	1.666	3.271	1.3
D0044	1/64" – 3/8"	0.2 mm – 10 mm	JT33	G2.5X10000	+/- 0.003"-0.006"	1.639	3.271	1.3
D0034	1/64" – 1/2"	0.2 mm – 13 mm	JT2	G2.5X10000	+/- 0.003"-0.006"	1.91	3.705	2.2
D0037	1/64" – 1/2"	0.2 mm – 13 mm	JT33	G2.5X10000	+/- 0.003"-0.006"	1.969	3.702	2.2
D0039	1/64" – 1/2"	0.2 mm – 13 mm	JT6	G2.5X10000	+/- 0.003"-0.006"	1.955	3.722	2.2
D0040	1/64" – 5/8"	0.2 mm – 16 mm	JT6	G2.5X10000	+/- 0.003"-0.006"	2.154	4.014	2.85
D0035	1/64" – 3/4"	0.2 mm – 20 mm	JT3	G2.5X10000	+/- 0.003"-0.006"	2.471	4.809	4.85

Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
