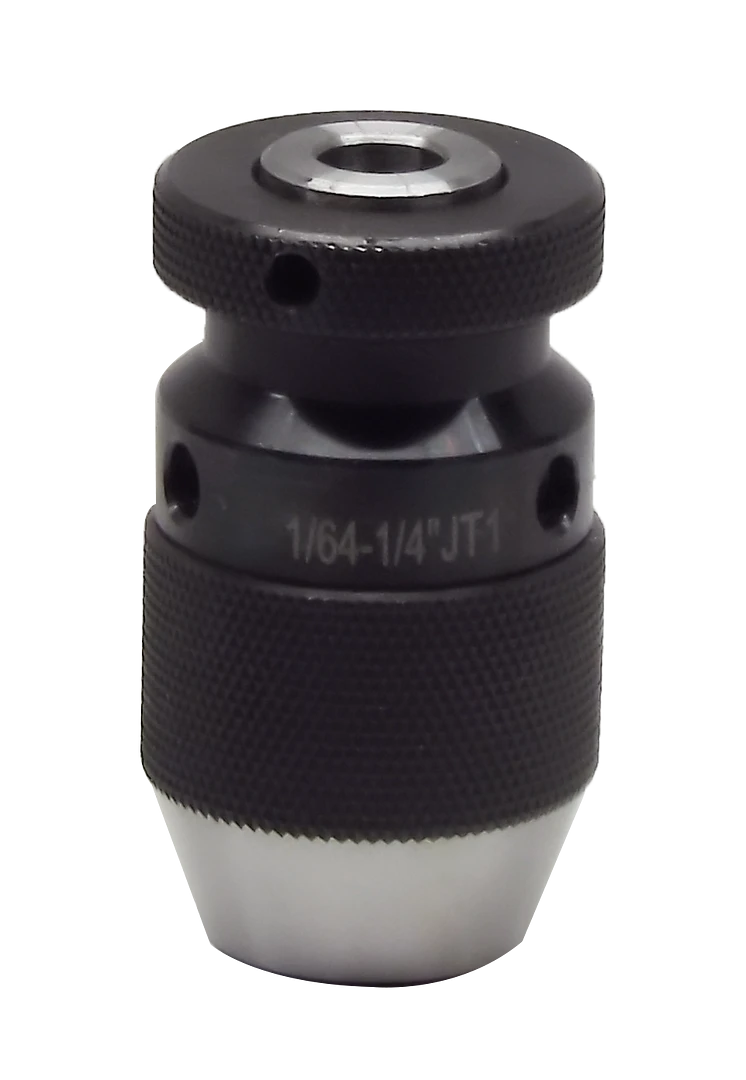

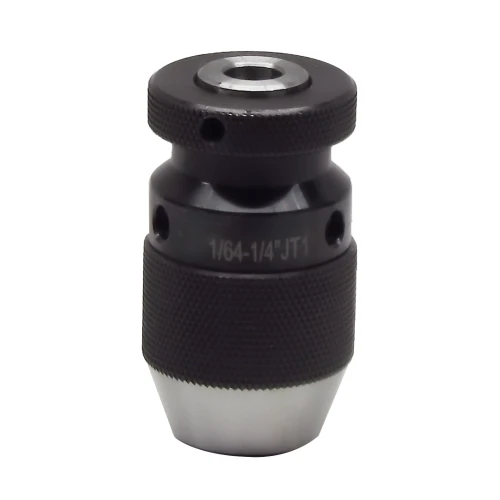

High Precision Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 4,000 RPM

High Precision Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 4,000 RPM - Image 2

High Precision Keyless Drill Chuck, 1/64"-1/4" Capacity, JT1 Jacobs Taper, 4,000 RPM - Image 3

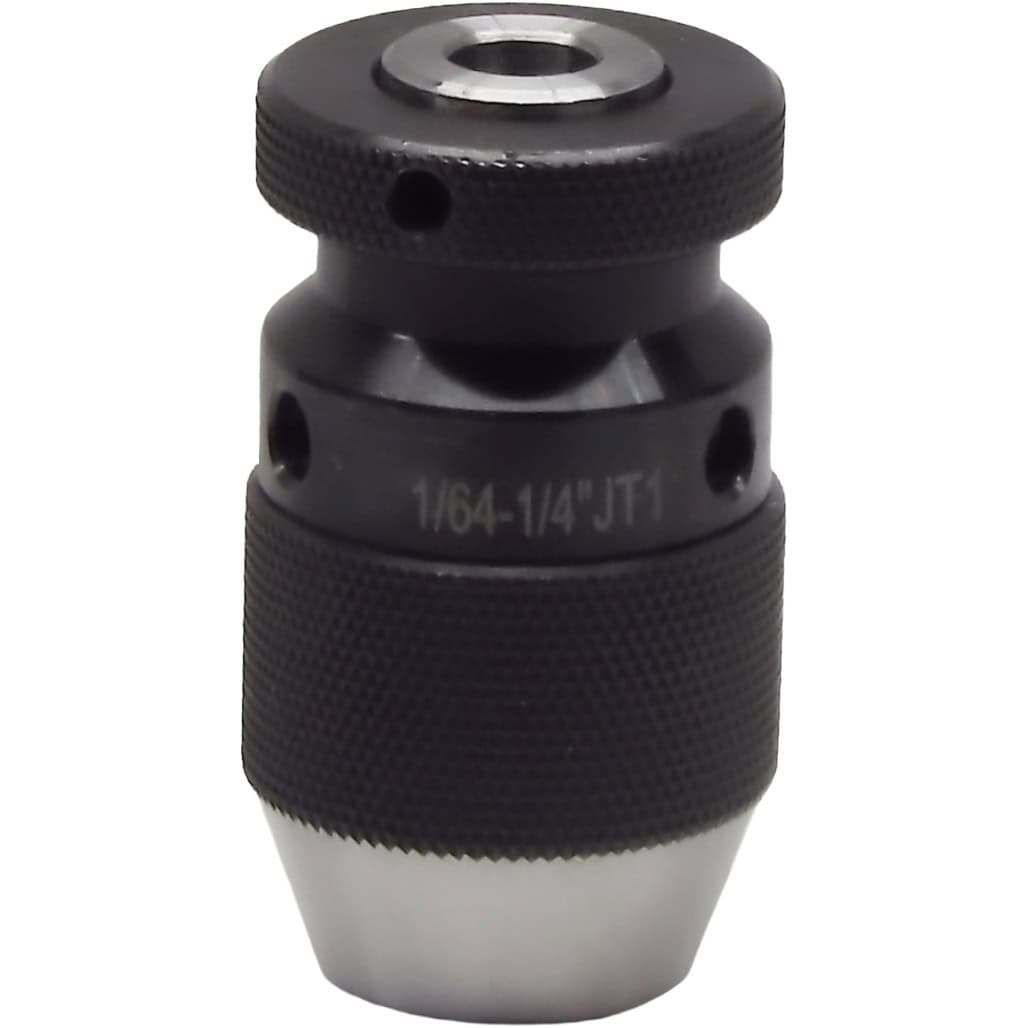

High Precision Keyless Drill Chuck, 1/64″-1/4″ Capacity, JT1 Jacobs Taper, 4,000 RPM

$81.80

SKU: D0026

Availability: 12 in stock

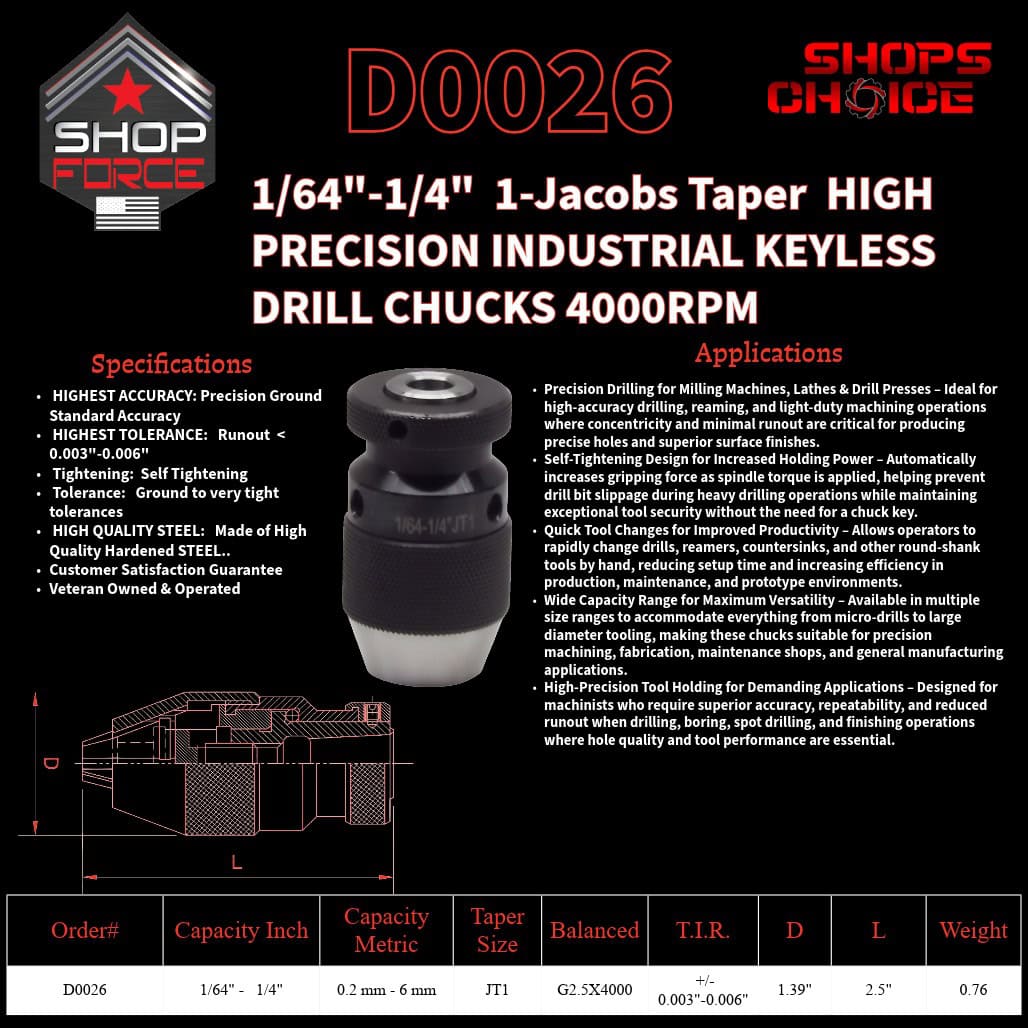

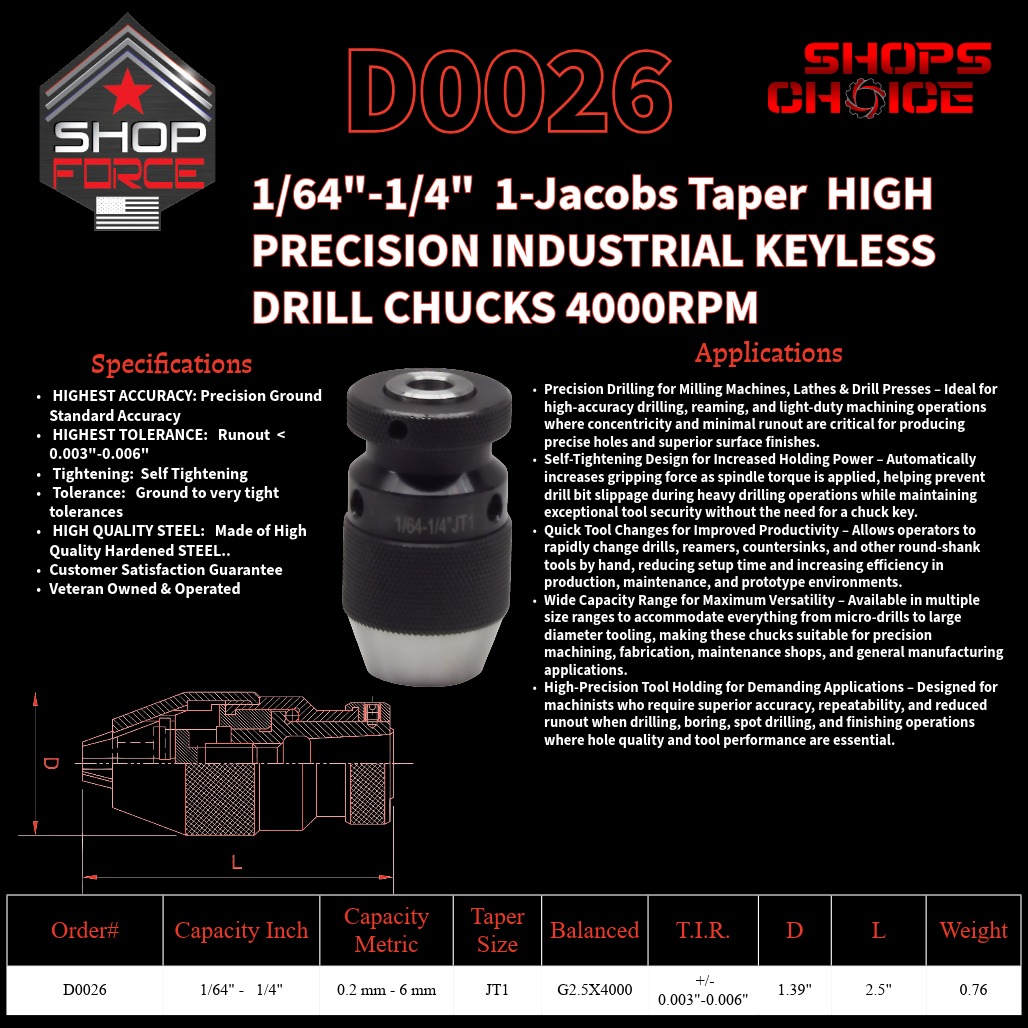

Shop-Force High Precision Industrial Keyless Drill Chuck (D0026). 1/64″-1/4″ 1-Jacobs Taper HIGH PRECISION INDUSTRIAL KEYLESS DRILL CHUCKS 4000RPM. Designed for reliable, keyless tool gripping and drilling operations. See the product specifications and full high precision comparison chart for capacities, mounting taper and dimensions.

Specifications & Tolerances

HIGHEST ACCURACY: Precision Ground Standard Accuracy
HIGHEST TOLERANCE: Runout < 0.003"-0.006"
Tightening: Self Tightening
Tolerance: Ground to very tight tolerances
HIGH QUALITY STEEL: Made of High Quality Hardened STEEL..
custom Satisfaction Guarantee
Veteran Owned Business

Applications

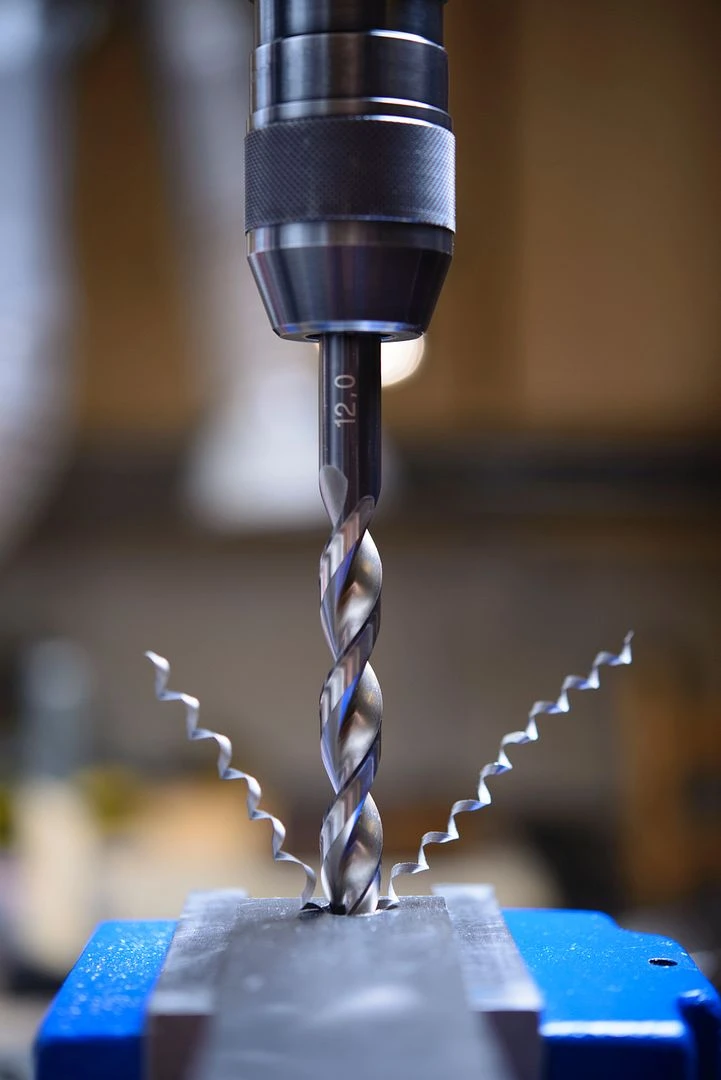

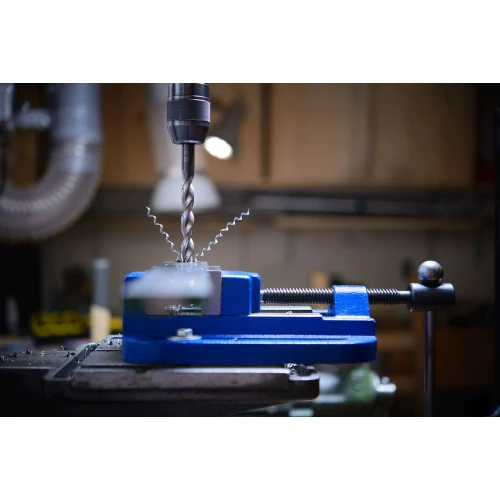

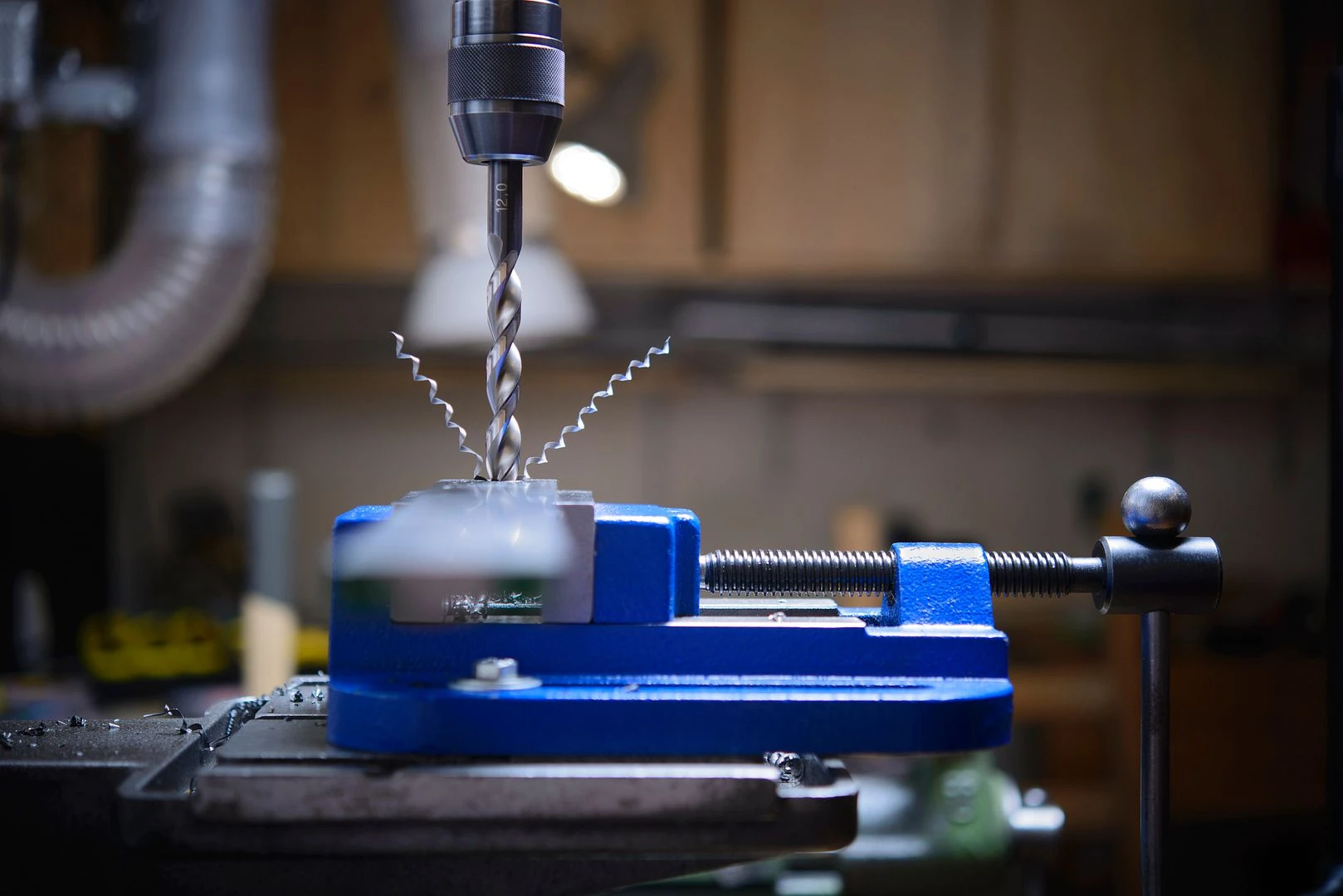

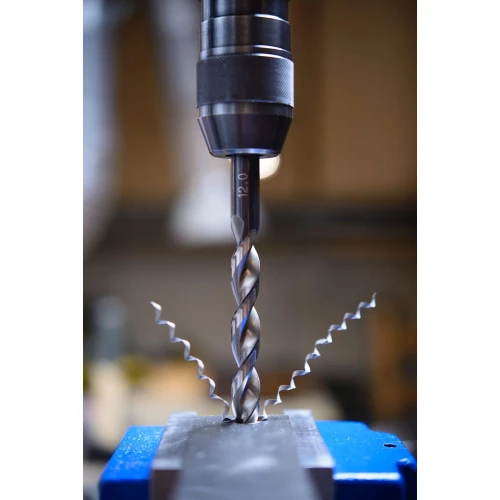

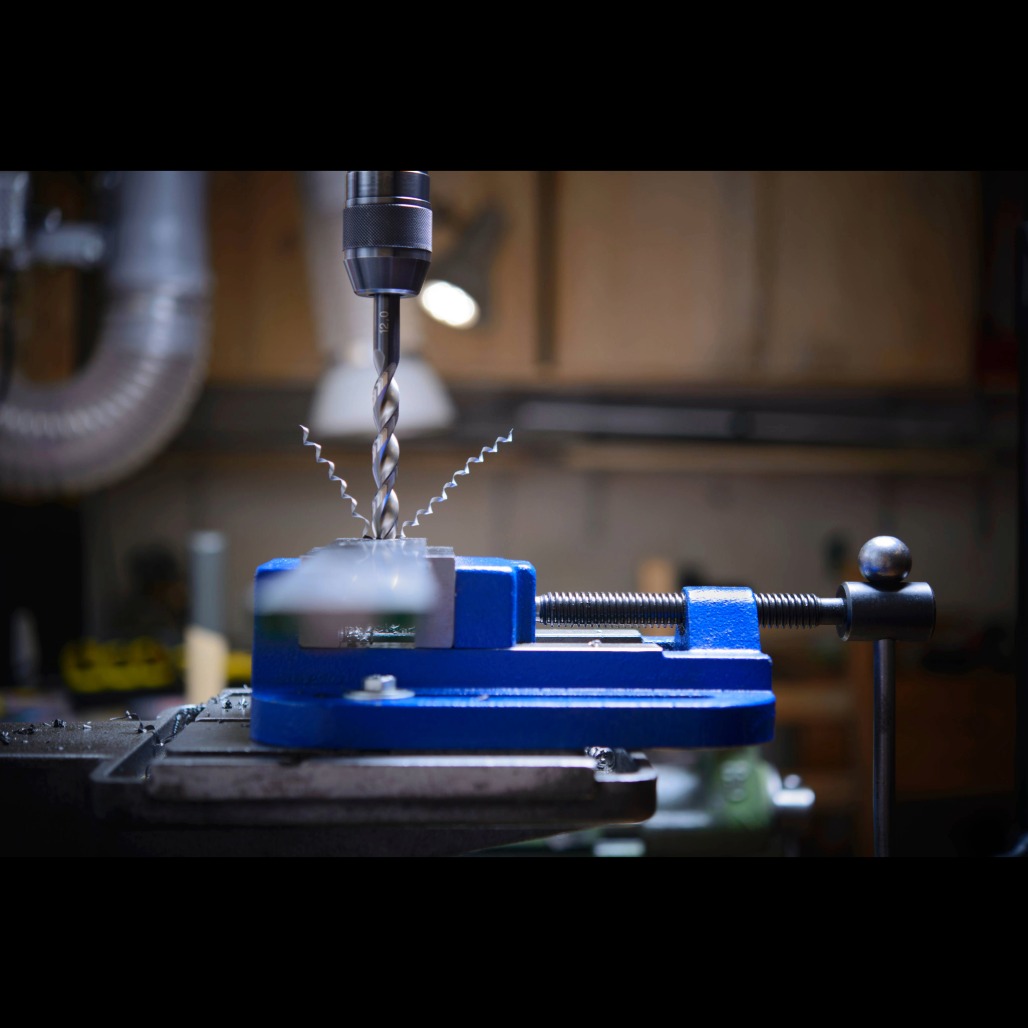

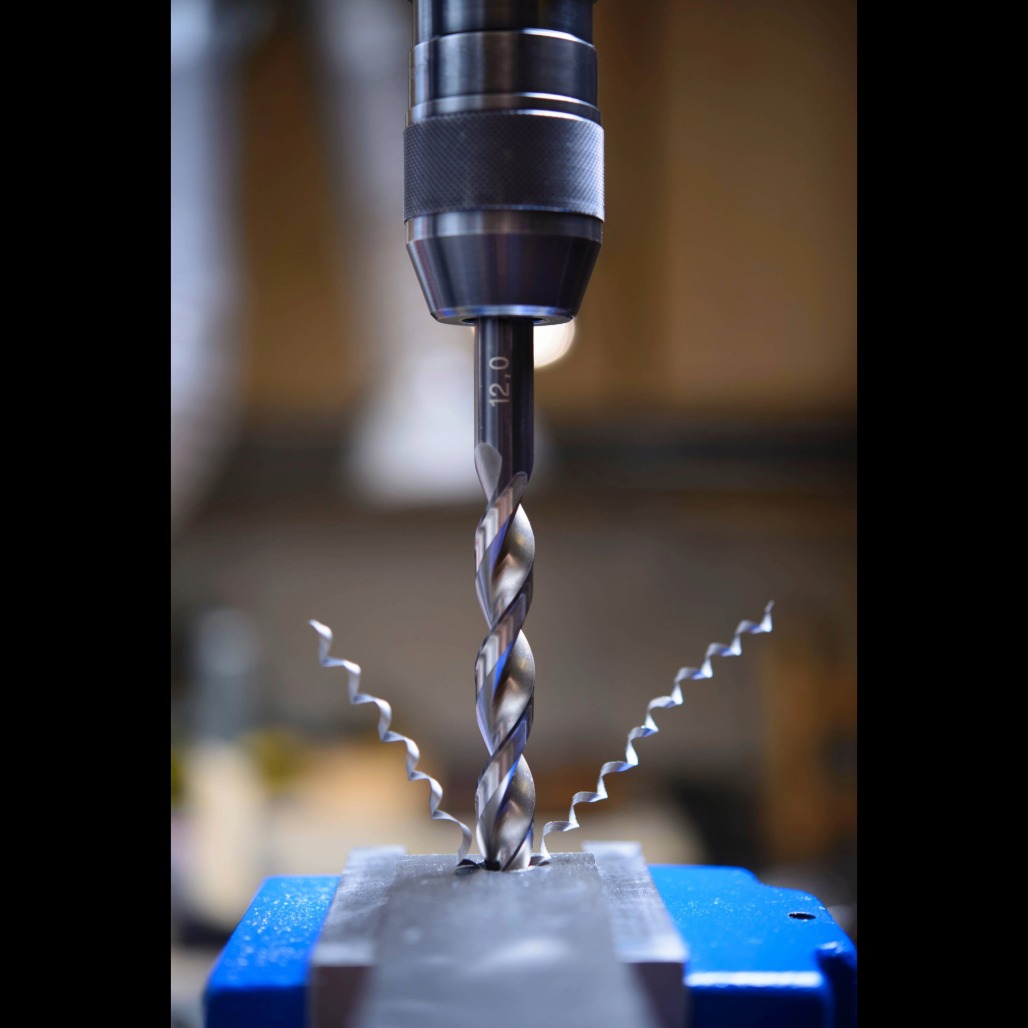

Precision Drilling for Milling Machines, Lathes & Drill Presses – Ideal for high-accuracy drilling, reaming, and light-duty machining operations where concentricity and minimal runout are critical for producing precise holes and superior surface finishes.
Self-Tightening Design for Increased Holding Power – Automatically increases gripping force as spindle torque is applied, helping prevent drill bit slippage during heavy drilling operations while maintaining exceptional tool security without the need for a chuck key.
Quick Tool Changes for Improved Productivity – Allows operators to rapidly change drills, reamers, countersinks, and other round-shank tools by hand, reducing setup time and increasing efficiency in production, maintenance, and prototype environments.
Wide Capacity Range for Maximum Versatility – Available in multiple size ranges to accommodate everything from micro-drills to large diameter tooling, making these chucks suitable for precision machining, fabrication, maintenance shops, and general manufacturing applications.
High-Precision Tool Holding for Demanding Applications – Designed for machinists who require superior accuracy, repeatability, and reduced runout when drilling, boring, spot drilling, and finishing operations where hole quality and tool performance are essential.

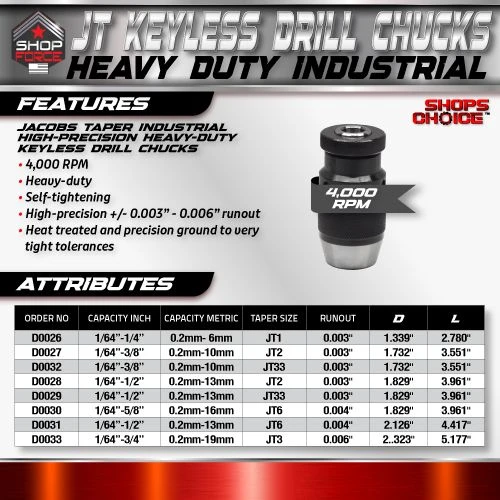

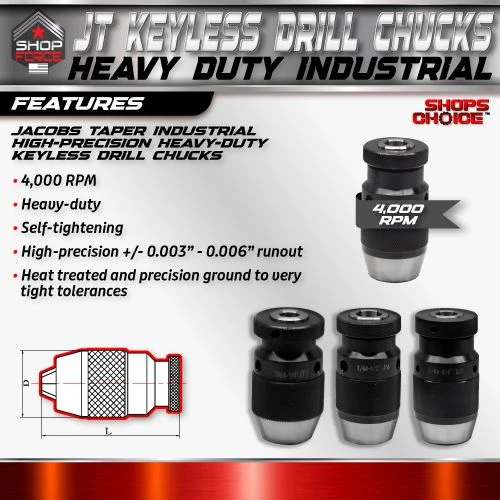

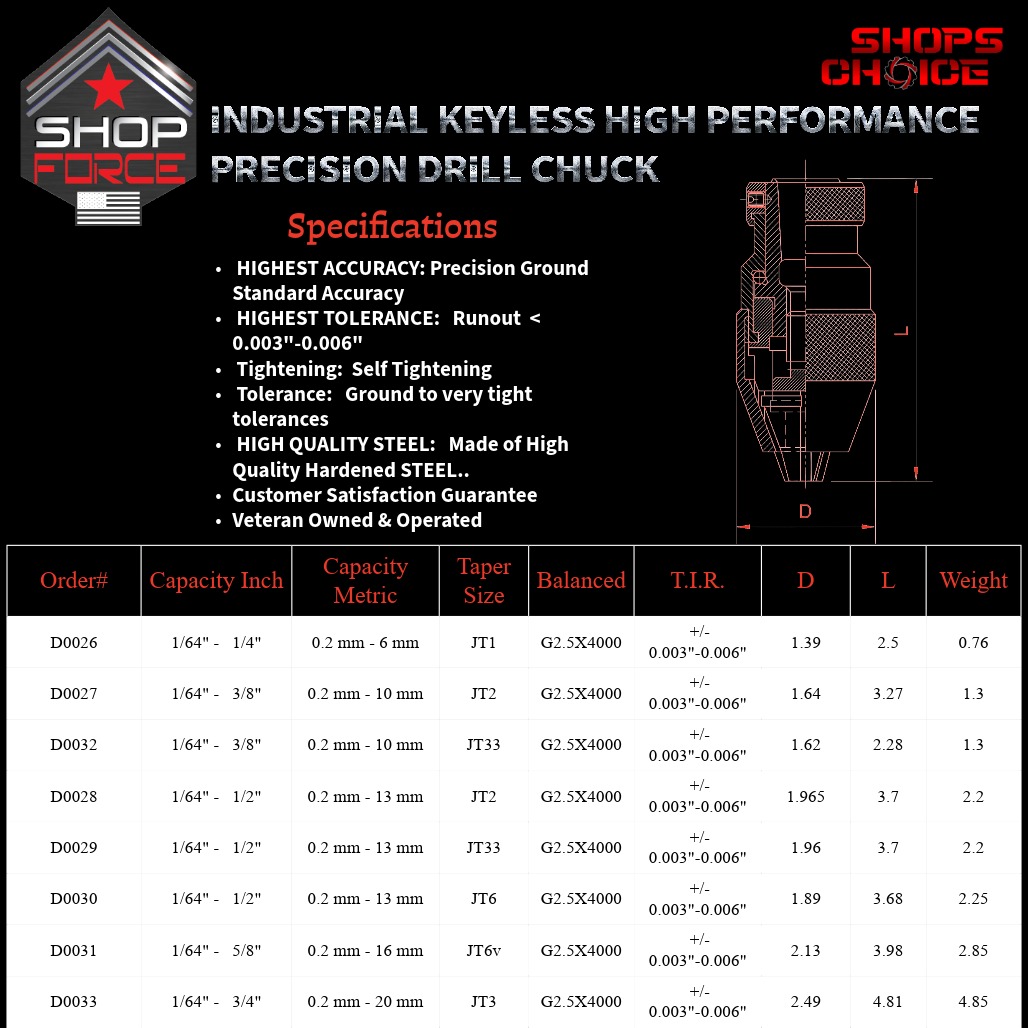

Order#	Capacity Inch	Capacity Metric	Taper Size	Balanced	T.I.R.	D	L	Weight
D0026	1/64" – 1/4"	0.2 mm – 6 mm	JT1	G2.5X4000	+/- 0.003"-0.006"	1.39	2.5	0.76
D0027	1/64" – 3/8"	0.2 mm – 10 mm	JT2	G2.5X4000	+/- 0.003"-0.006"	1.64	3.27	1.3
D0032	1/64" – 3/8"	0.2 mm – 10 mm	JT33	G2.5X4000	+/- 0.003"-0.006"	1.62	2.28	1.3
D0028	1/64" – 1/2"	0.2 mm – 13 mm	JT2	G2.5X4000	+/- 0.003"-0.006"	1.965	3.7	2.2
D0029	1/64" – 1/2"	0.2 mm – 13 mm	JT33	G2.5X4000	+/- 0.003"-0.006"	1.96	3.7	2.2
D0030	1/64" – 1/2"	0.2 mm – 13 mm	JT6	G2.5X4000	+/- 0.003"-0.006"	1.89	3.68	2.25
D0031	1/64" – 5/8"	0.2 mm – 16 mm	JT6v	G2.5X4000	+/- 0.003"-0.006"	2.13	3.98	2.85
D0033	1/64" – 3/4"	0.2 mm – 20 mm	JT3	G2.5X4000	+/- 0.003"-0.006"	2.49	4.81	4.85

Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
