100LB PUSH/PULL (STRAIGHT LINE) CLAMP – 30300 – Shop-Force

$11.37

SKU: 30300

Availability: 449 in stock

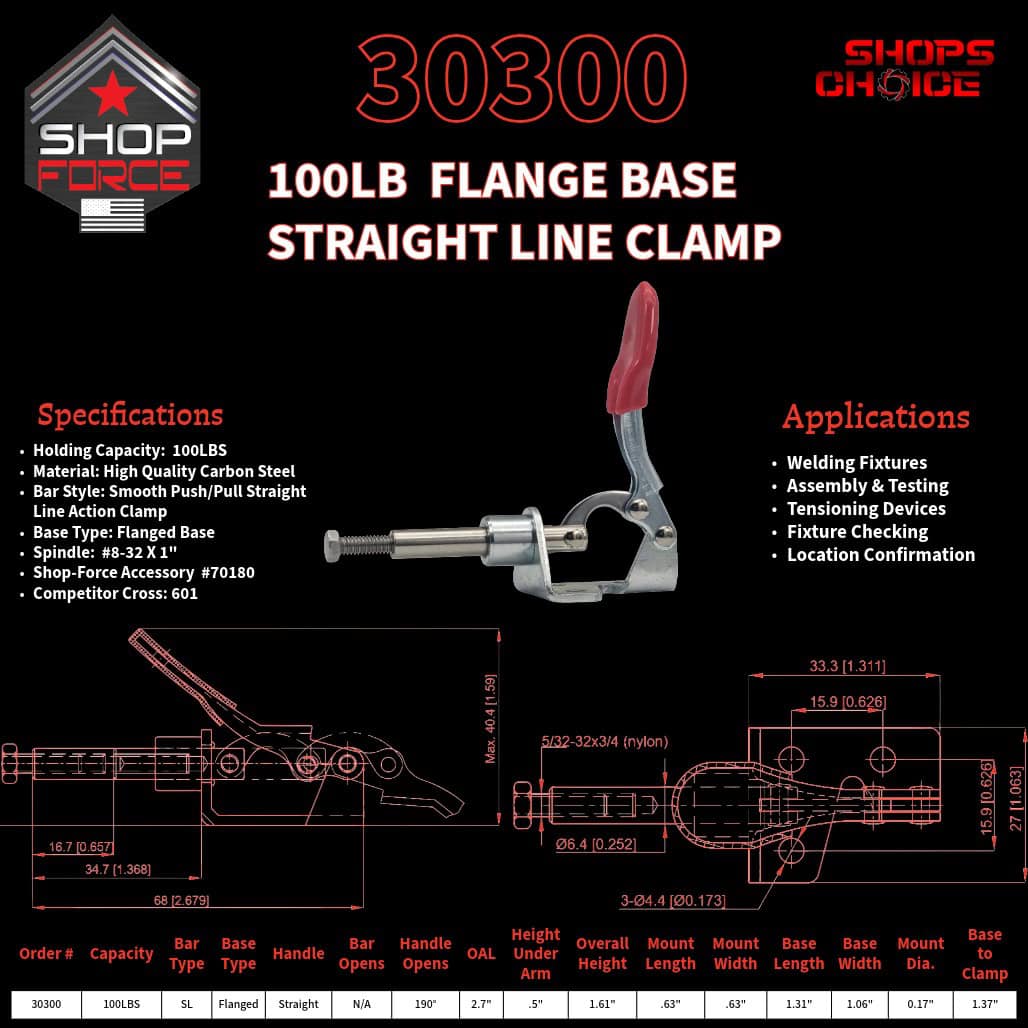

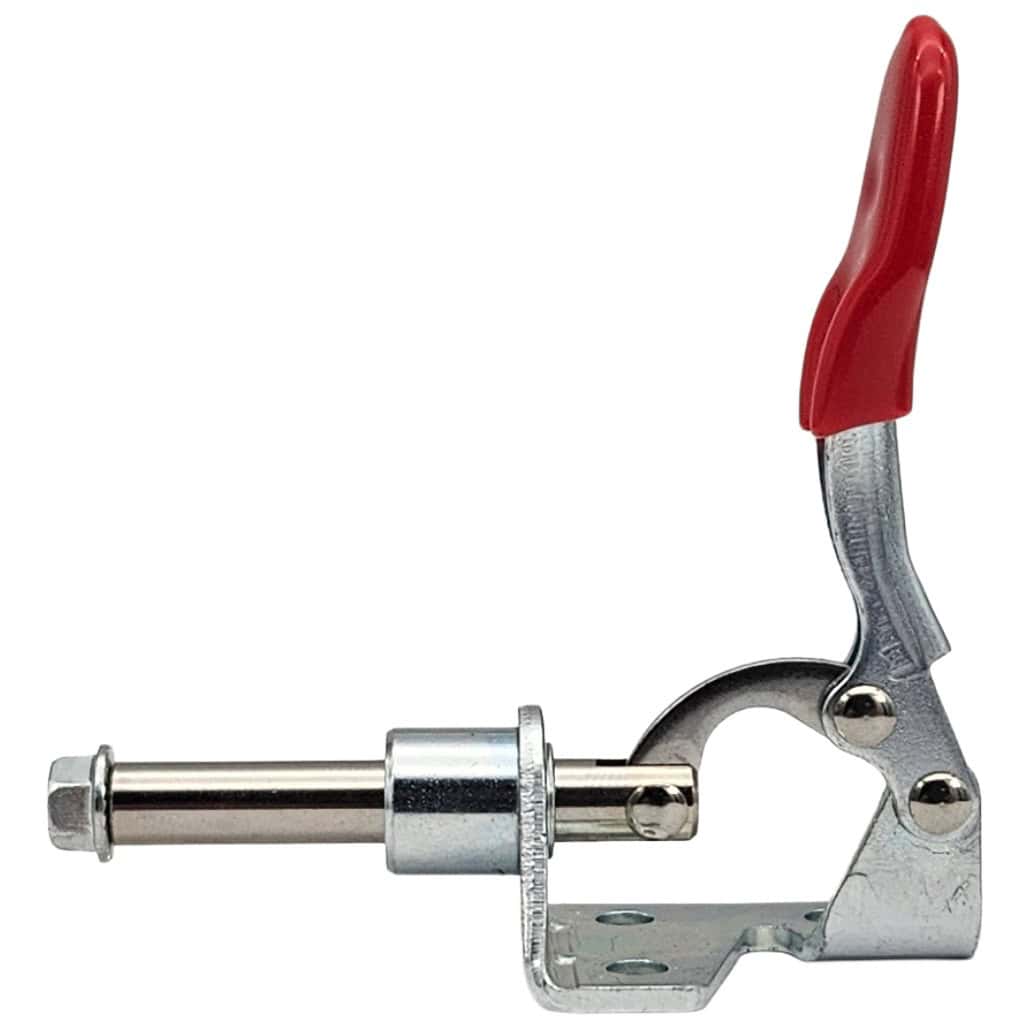

Shop-Force 100 lb straight-line push/pull toggle clamp provides linear clamping action for workholding, fixtures, positioning, and inspection applications. This steel clamp features a flanged base configuration and an over-center locking mechanism for repeatable plunger positioning. Spindle specification: #8-32 X .625″ HEX FULL THREAD SPINDLE ASSEMBLY.

Specifications & Tolerances

Competitor:601
Holding Capacity: 100 LBS Clamping Pressure
Material: Made of High Quality Steel
Bar Style: Smooth Push/Pull Straight line Action Clamp
Base Type: Flanged
Spindle Size: #8-32 X .625″ HEX FULL THREAD SPINDLE ASSEMBLY
Shop-Force Accessory # 70180
Customer Satisfaction Guarantee
Veteran-Owned and Operated

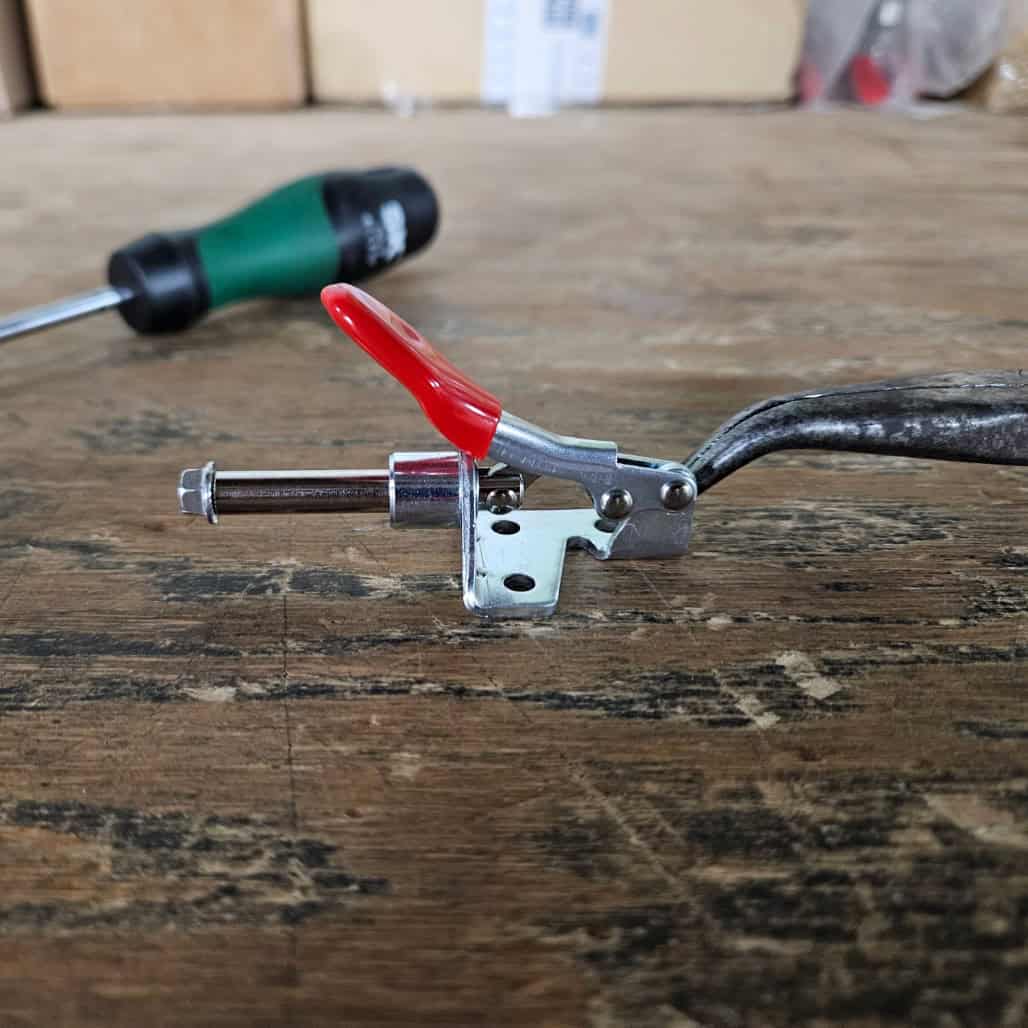

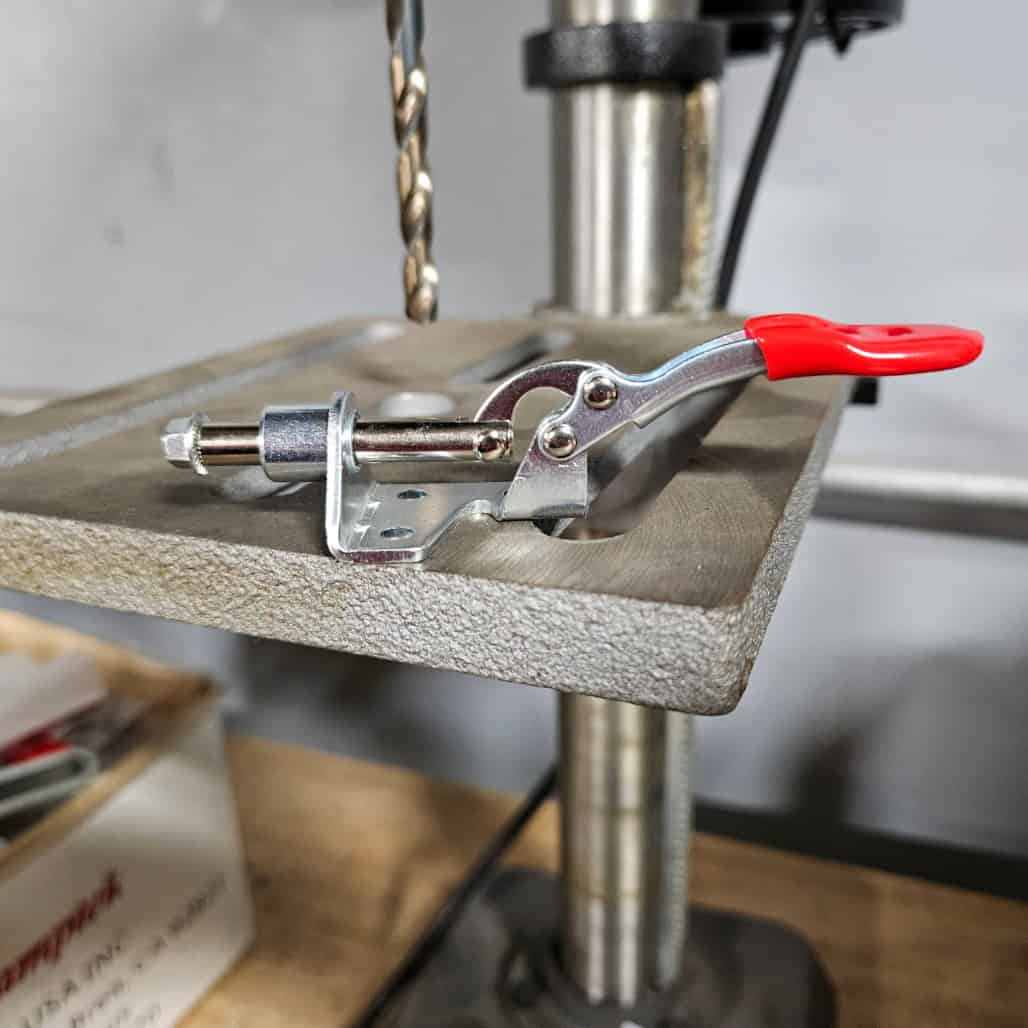

Applications

Assembly
Welding Fixtures
Tensioning devices
Checking Fixtures
Location Confirmation

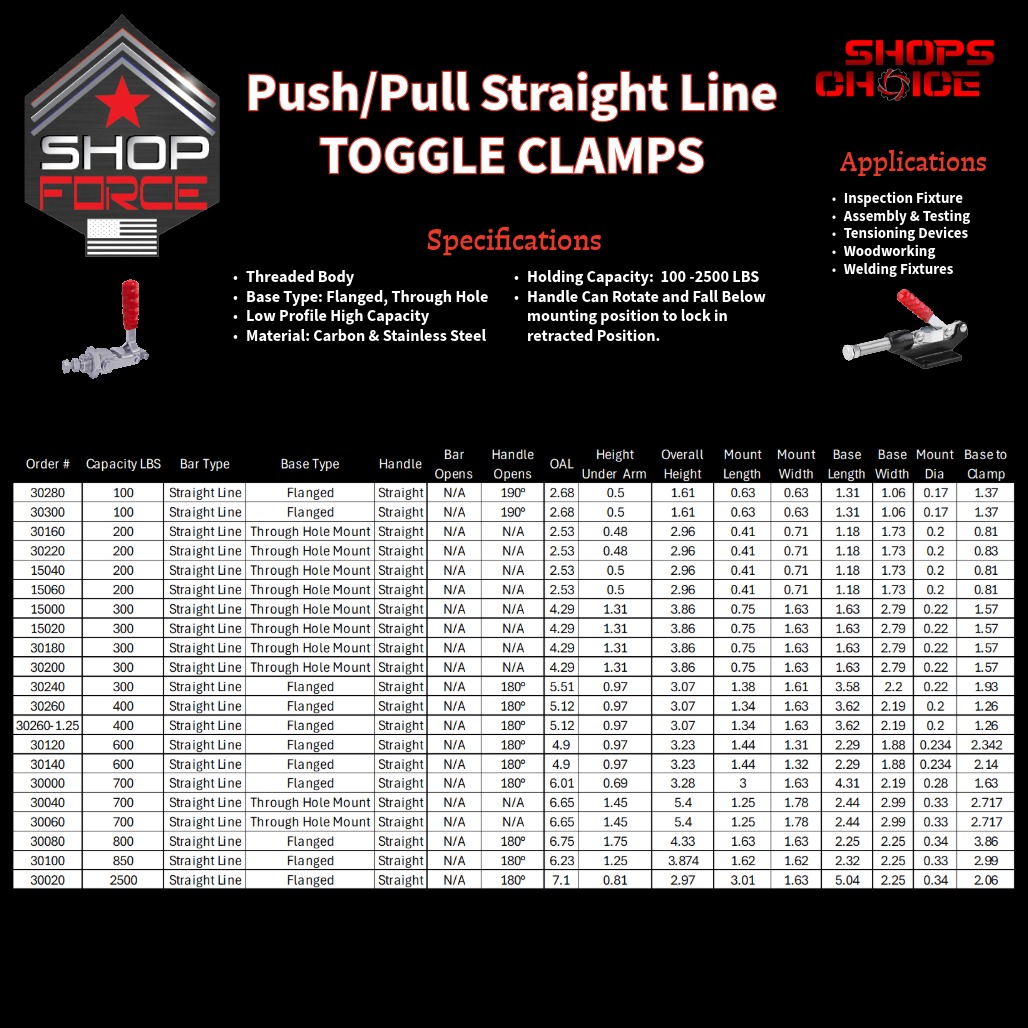

Push/Pull Straight Line Toggle Clamp Comparison Chart

Compare models, holding capacities, mounting configurations, and dimensions.

Order #	Capacity LBS	Bar Type	Base Type	Handle	Bar Opens	Handle Opens	OAL	Height Under Arm	Overall Height	Mount Length	Mount Width	Base Length	Base Width	Mount Dia	Base to Clamp
30280	100	Straight Line	Flanged	Straight	N/A	190°	2.68	0.5	1.61	0.63	0.63	1.31	1.06	0.17	1.37
30300	100	Straight Line	Flanged	Straight	N/A	190°	2.68	0.5	1.61	0.63	0.63	1.31	1.06	0.17	1.37
30160	200	Straight Line	Through Hole Mount	Straight	N/A	N/A	2.53	0.48	2.96	0.41	0.71	1.18	1.73	0.2	0.81
30220	200	Straight Line	Through Hole Mount	Straight	N/A	N/A	2.53	0.48	2.96	0.41	0.71	1.18	1.73	0.2	0.83
15040	200	Straight Line	Through Hole Mount	Straight	N/A	N/A	2.53	0.5	2.96	0.41	0.71	1.18	1.73	0.2	0.81
15060	200	Straight Line	Through Hole Mount	Straight	N/A	N/A	2.53	0.5	2.96	0.41	0.71	1.18	1.73	0.2	0.81
15000	300	Straight Line	Through Hole Mount	Straight	N/A	N/A	4.29	1.31	3.86	0.75	1.63	1.63	2.79	0.22	1.57
15020	300	Straight Line	Through Hole Mount	Straight	N/A	N/A	4.29	1.31	3.86	0.75	1.63	1.63	2.79	0.22	1.57
30180	300	Straight Line	Through Hole Mount	Straight	N/A	N/A	4.29	1.31	3.86	0.75	1.63	1.63	2.79	0.22	1.57
30200	300	Straight Line	Through Hole Mount	Straight	N/A	N/A	4.29	1.31	3.86	0.75	1.63	1.63	2.79	0.22	1.57
30240	300	Straight Line	Flanged	Straight	N/A	180°	5.51	0.97	3.07	1.38	1.61	3.58	2.2	0.22	1.93
30260	400	Straight Line	Flanged	Straight	N/A	180°	5.12	0.97	3.07	1.34	1.63	3.62	2.19	0.2	1.26
30260-1.25	400	Straight Line	Flanged	Straight	N/A	180°	5.12	0.97	3.07	1.34	1.63	3.62	2.19	0.2	1.26
30120	600	Straight Line	Flanged	Straight	N/A	180°	4.9	0.97	3.23	1.44	1.31	2.29	1.88	0.234	2.342
30140	600	Straight Line	Flanged	Straight	N/A	180°	4.9	0.97	3.23	1.44	1.32	2.29	1.88	0.234	2.14
30000	700	Straight Line	Flanged	Straight	N/A	180°	6.01	0.69	3.28	3	1.63	4.31	2.19	0.28	1.63
30040	700	Straight Line	Through Hole Mount	Straight	N/A	N/A	6.65	1.45	5.4	1.25	1.78	2.44	2.99	0.33	2.717
30060	700	Straight Line	Through Hole Mount	Straight	N/A	N/A	6.65	1.45	5.4	1.25	1.78	2.44	2.99	0.33	2.717
30080	800	Straight Line	Flanged	Straight	N/A	180°	6.75	1.75	4.33	1.63	1.63	2.25	2.25	0.34	3.86
30100	850	Straight Line	Flanged	Straight	N/A	180°	6.23	1.25	3.874	1.62	1.62	2.32	2.25	0.33	2.99
30020	2500	Straight Line	Flanged	Straight	N/A	180°	7.1	0.81	2.97	3.01	1.63	5.04	2.25	0.34	2.06

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
