MT2 Super-Precision Live Center – CNC Lathe | Shop’sChoice™
$87.94
SKU: L0012
Availability: 3 in stock

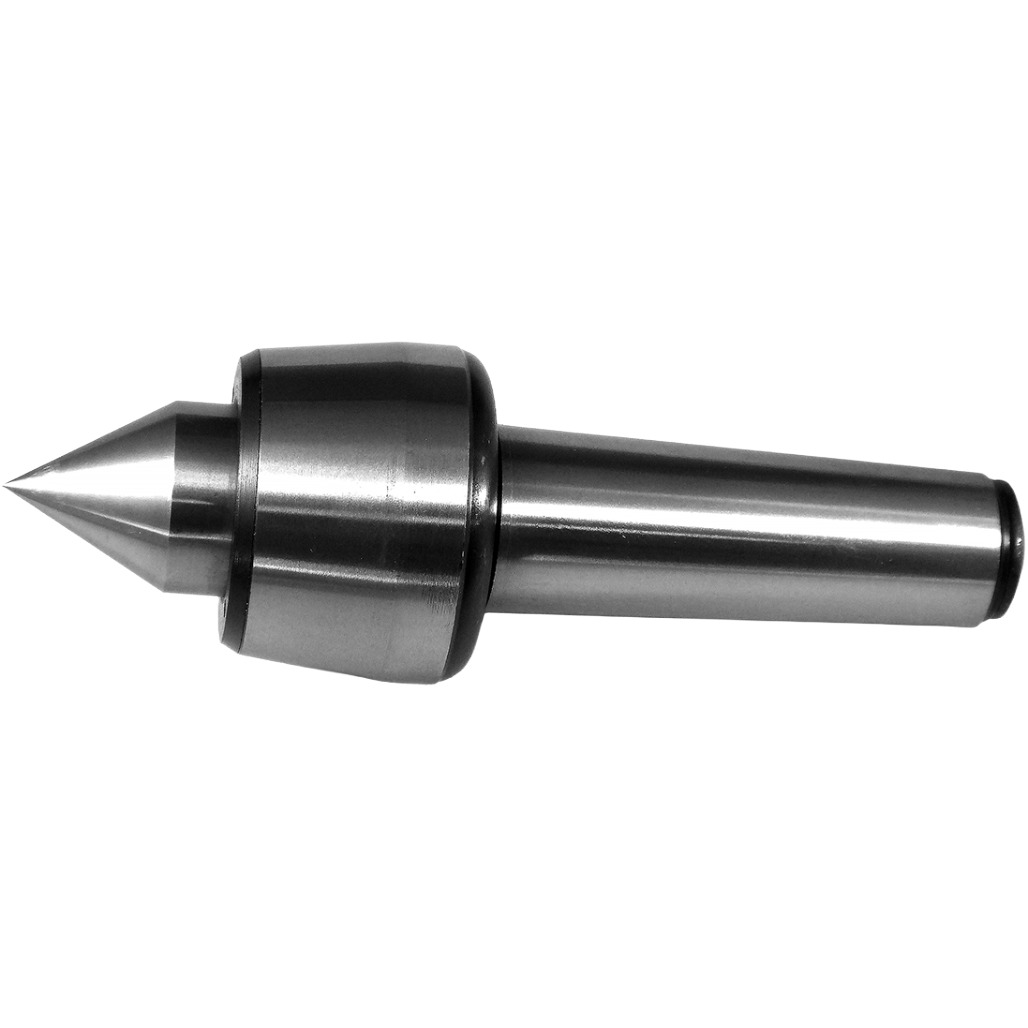

Shop-Force Shop’sChoice™ super precision live centers for precision CNC and manual lathe tailstock applications. MT2 Morse taper.
Specifications & Features
* HIGH PRECISION HIGH SPEED DESIGN: +/- 0.0004″ T.I.R.
* CONSTRUCTION: One-Piece body & spindle Design made of high quality forged alloy steel.
* MAXIMUM LOAD: 330 LBS
* Included Point: 60° Included Standard Point Style
* RIGIDITY & ACCURACY: Triple Bearing design for maximum Rigidity and accuracy/
* Veteran Owned Business
Applications
* Supports long workpieces with exceptional concentricity, minimizing deflection while maintaining up to ±0.0004″ T.I.R. for accurate turning operations.
* Ideal for CNC lathes, engine lathes, and precision machining applications where consistent part accuracy and superior surface finish are required.
* Precision bearings provide smooth, low-friction rotation, reducing vibration and improving dimensional accuracy throughout the machining process.
* Excellent choice for general-purpose production, toolroom, and maintenance machining, offering high precision at an economical price.
* Designed for turning, facing, grinding, and finishing operations where reliable workpiece support increases tool life, improves part quality, and reduces scrap.
Specifications & Features
* HIGH PRECISION HIGH SPEED DESIGN: +/- 0.0004″ T.I.R.
* CONSTRUCTION: One-Piece body & spindle Design made of high quality forged alloy steel.
* MAXIMUM LOAD: 330 LBS
* Included Point: 60° Included Standard Point Style
* RIGIDITY & ACCURACY: Triple Bearing design for maximum Rigidity and accuracy/
* Veteran Owned Business
Applications
* Supports long workpieces with exceptional concentricity, minimizing deflection while maintaining up to ±0.0004″ T.I.R. for accurate turning operations.
* Ideal for CNC lathes, engine lathes, and precision machining applications where consistent part accuracy and superior surface finish are required.
* Precision bearings provide smooth, low-friction rotation, reducing vibration and improving dimensional accuracy throughout the machining process.
* Excellent choice for general-purpose production, toolroom, and maintenance machining, offering high precision at an economical price.
* Designed for turning, facing, grinding, and finishing operations where reliable workpiece support increases tool life, improves part quality, and reduces scrap.
Specifications & Tolerances
- HIGH PRECISION HIGH SPEED DESIGN: +/- 0.0004" T.I.R.
- CONSTRUCTION: One-Piece body & spindle Design made of high quality forged alloy steel.
- MAXIMUM LOAD: 330 LBS
- Included Point: 60° Included Standard Point Style
- RIGIDITY & ACCURACY: Triple Bearing design for maximum Rigidity and accuracy/
- Veteran Owned Business
Applications
- Supports long workpieces with exceptional concentricity, minimizing deflection while maintaining up to ±0.0004" T.I.R. for accurate turning operations.
- Ideal for CNC lathes, engine lathes, and precision machining applications where consistent part accuracy and superior surface finish are required.
- Precision bearings provide smooth, low-friction rotation, reducing vibration and improving dimensional accuracy throughout the machining process.
- Excellent choice for general-purpose production, toolroom, and maintenance machining, offering high precision at an economical price.
- Designed for turning, facing, grinding, and finishing operations where reliable workpiece support increases tool life, improves part quality, and reduces scrap.

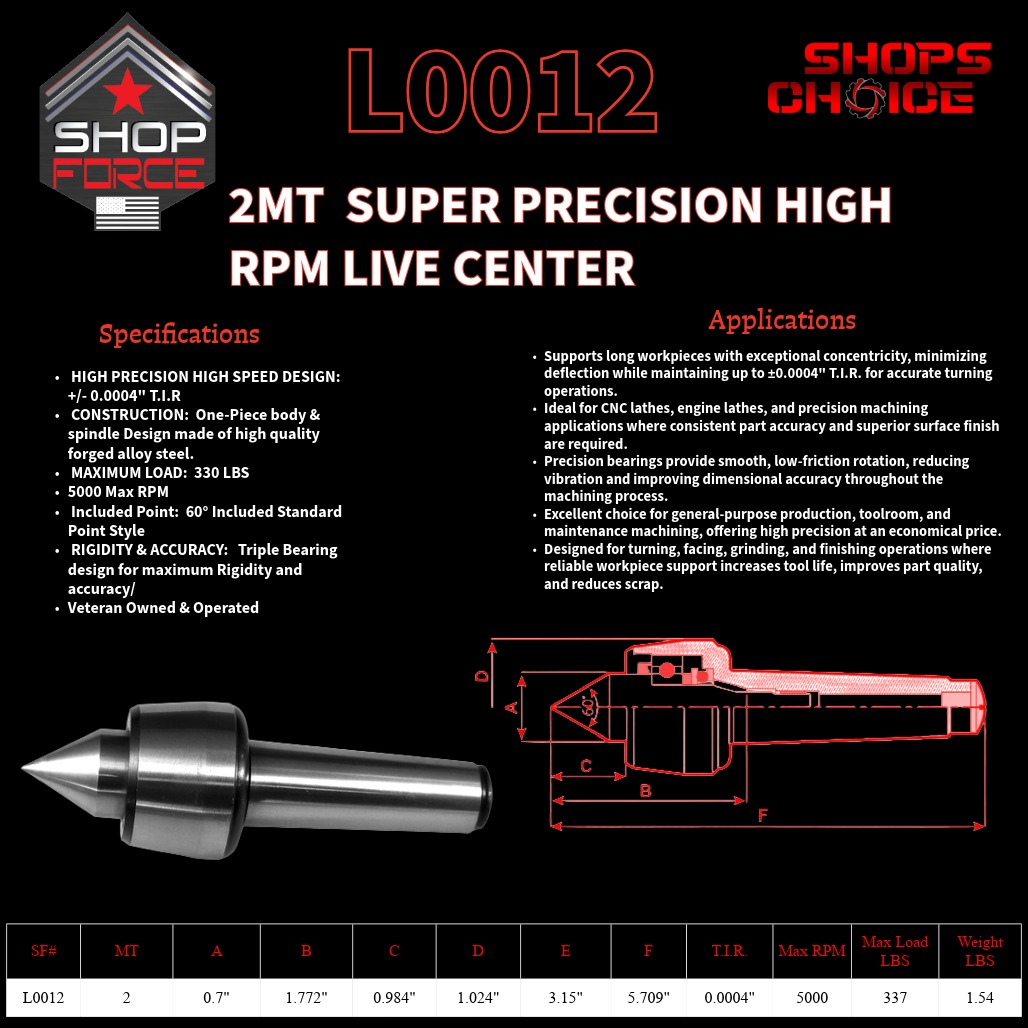

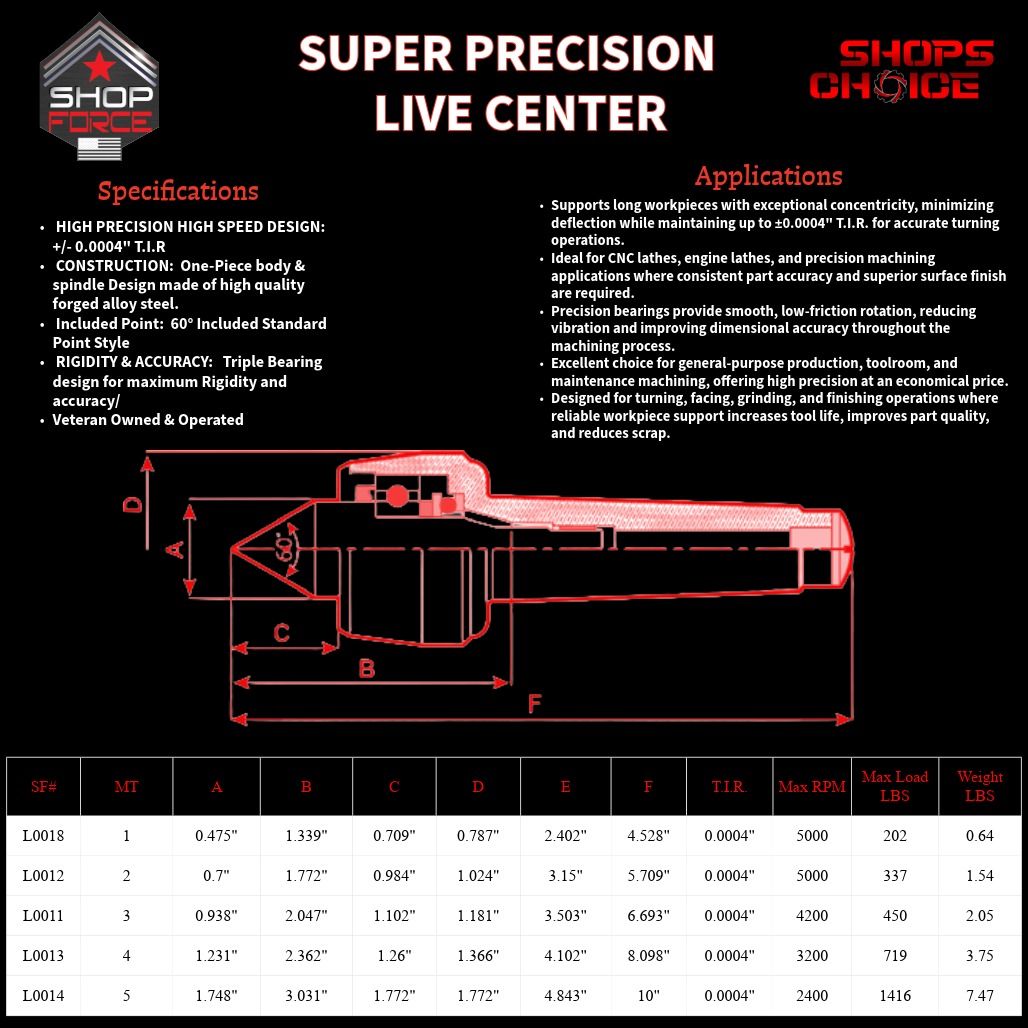

| SF SKU | MT | A | B | C | D | E | F | T.I.R. | Max RPM | Max Load (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L0018 | 1 | 0.475" | 1.339" | 0.709" | 0.787" | 2.402" | 4.528" | 0.0004" | 5000 | 202.328 | 0.639 |
| L0012 | 2 | 0.7" | 1.772" | 0.984" | 1.024" | 3.15" | 5.709" | 0.0004" | 5000 | 337.214 | 1.543 |
| L0011 | 3 | 0.938" | 2.047" | 1.102" | 1.181" | 3.503" | 6.693" | 0.0004" | 4200 | 449.618 | 2.05 |
| L0013 | 4 | 1.231" | 2.362" | 1.26" | 1.366" | 4.102" | 8.098" | 0.0004" | 3200 | 719.389 | 3.748 |
| L0014 | 5 | 1.748" | 3.031" | 1.772" | 1.772" | 4.843" | 10" | 0.0004" | 2400 | 1416.297 | 7.474 |
| L0019 | 6 | 2.494" | 4.921" | 2.953" | 2.697" | 7.221" | 14.252" | 0.0004" | 1600 | 2248.09 | 26.455 |
Dimensional Disclaimer: Product dimensions are subject to change without notice. If a specific dimension is critical to your application, please contact Shop-Force to confirm the current specifications before ordering.
