500LB U-BAR FLG BASE HORIZONTAL CLAMP - 60100 - Shop-Force

500LB U-BAR FLG BASE HORIZONTAL CLAMP - 60100 - Shop-Force - Image 2

500LB U-BAR FLG BASE HORIZONTAL CLAMP - 60100 - Shop-Force - Image 3

500LB U-BAR FLG BASE HORIZONTAL CLAMP – 60100 – Shop-Force

$12.60

SKU: 60100

Out of stock

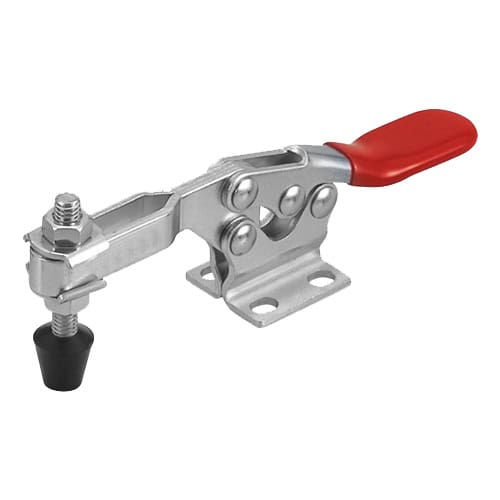

Shop-Force 500 lb horizontal hold-down toggle clamp provides secure, repeatable over-center clamping for machining fixtures, assembly, and workholding applications. This steel clamp features a u-bar clamping arm, flanged mounting base, and low-profile horizontal handle action. Spindle specification: M8 X 2.48″ Flat Tip Bonded Neoprene Cap Full Thread Zinc Plated SPINDLE ACCESSORY.

Specifications & Tolerances

Competitor: 225-U
Holding Capacity: 500 LBS Clamping Pressure
Material: Made of High Quality Carbon Steel
Bar Style: Smooth Horizontal U-Bar Action Clamp
Base Type: Flanged
Spindle Size: M8 X 2.48" Flat Tip Bonded Neoprene Cap Full Thread Zinc Plated SPINDLE ACCESSORY
Shop-Force Accessory# 70160
Customer Satisfaction Guarantee
Veteran Owned and Operated

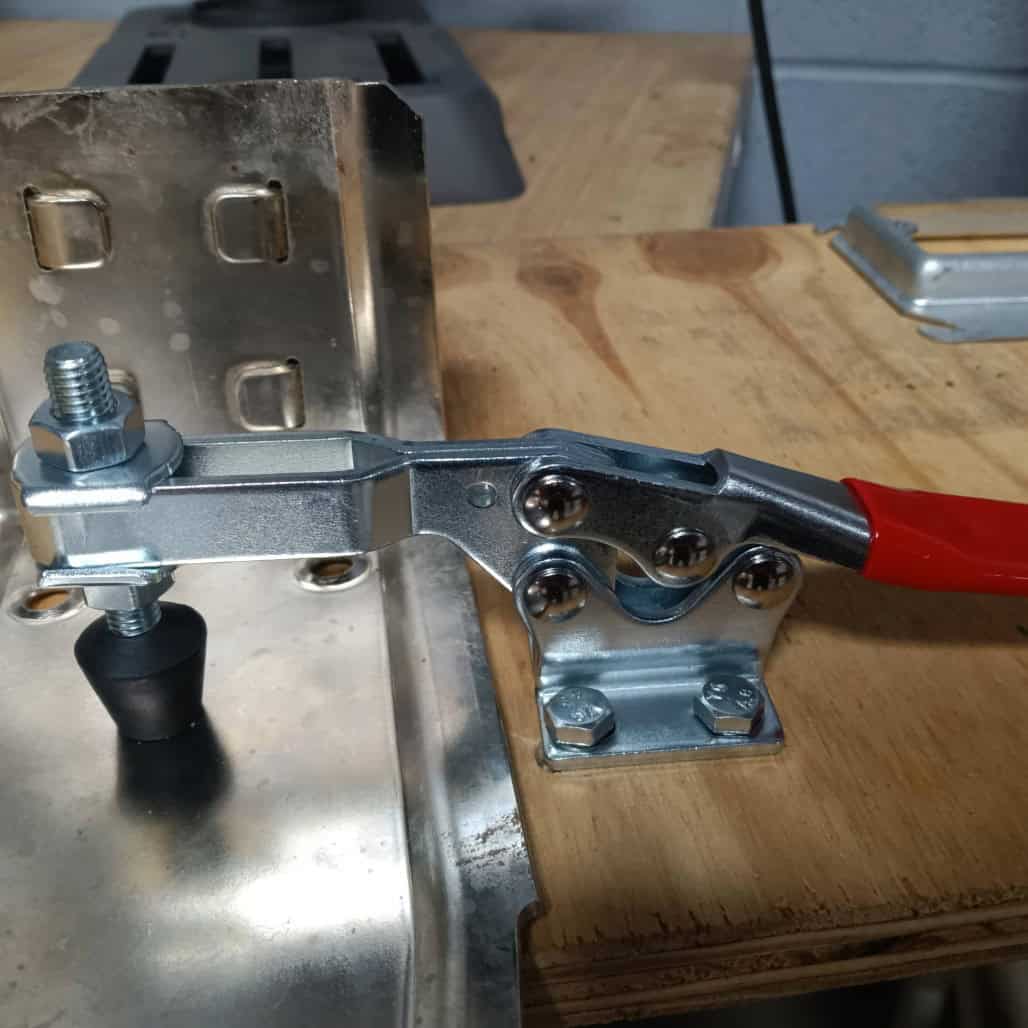

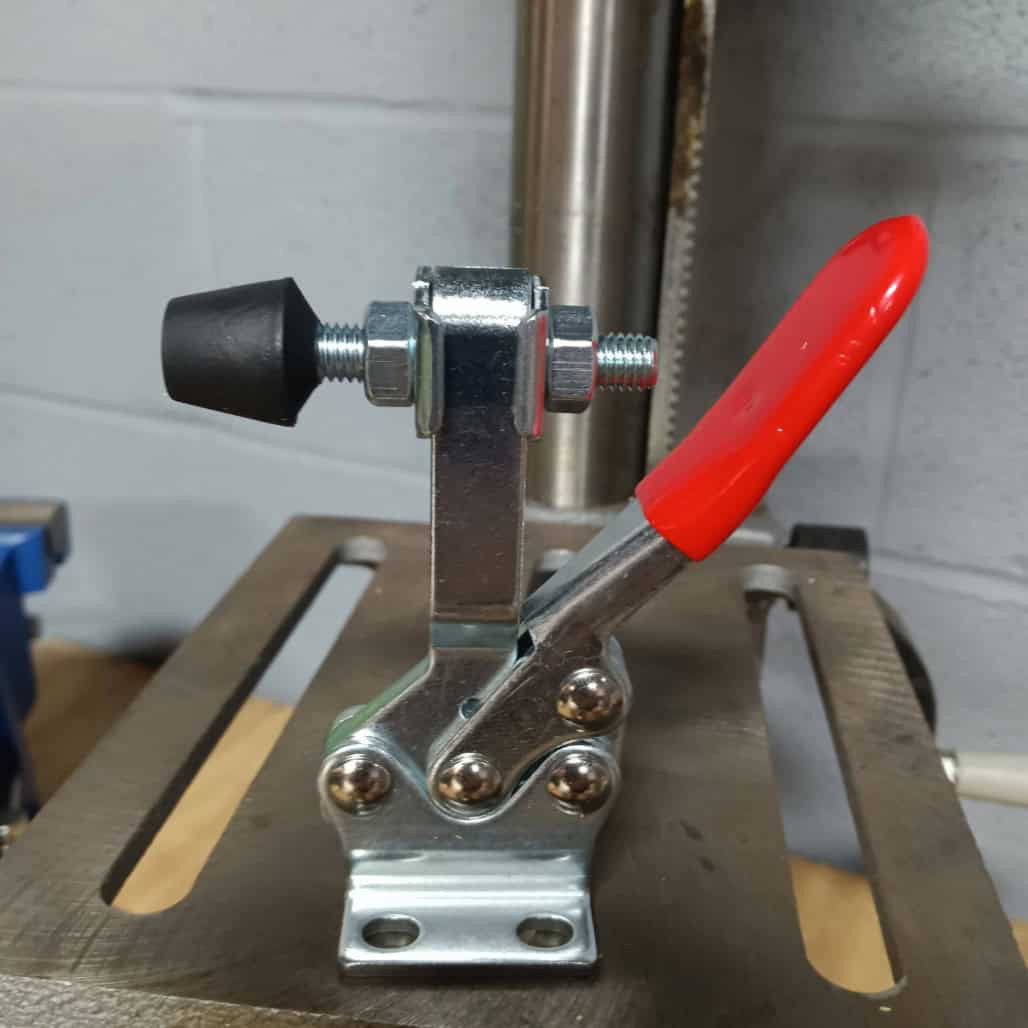

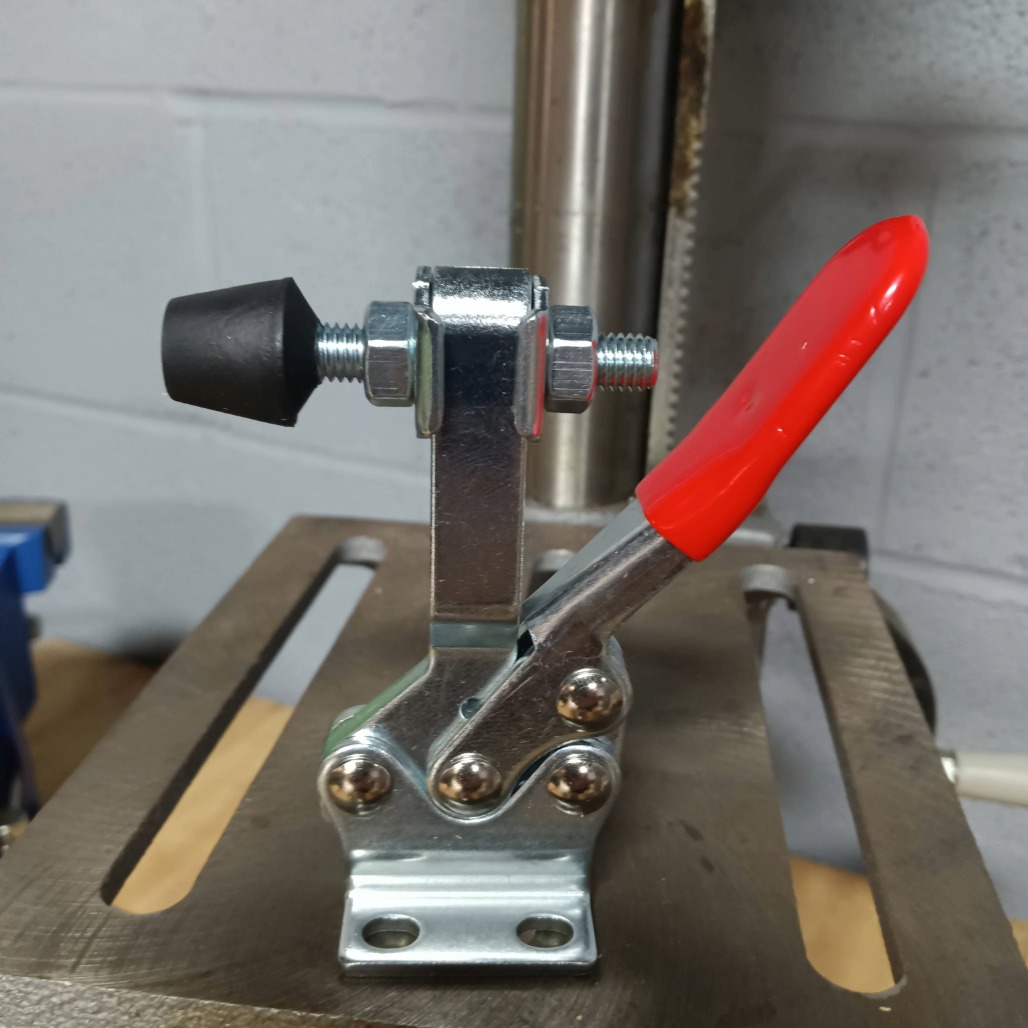

Applications

Light Machining
Assembly & Testing
Light Machine Fuxtures
Woodowrking
Light Duty Clamping
Welding

Horizontal Hold-Down Toggle Clamp Comparison Chart

Compare models, holding capacities, mounting configurations, and dimensions.

Order #	Capacity LBS	Bar Type	Base Type	Handle	Bar Opens	Handle Opens	OAL	Height Under Arm	Overall Height	Mount Length	Mount Width	Base Length	Base Width	Mount Dia	Base to Clamp
19000	60	U-Bar	Flanged	Straight	90°	80°	3.11	0.31	0.7	0.44	0.63	0.94	0.94	0.17	0.591
19000P	60	U-Bar	Flanged	Straight	90°	80°	3.11	0.31	0.7	0.44	0.63	0.94	0.94	0.17	0.591
60240	60	U-Bar	Flanged	Straight	90°	80°	3.11	0.31	0.7	0.44	0.63	0.94	0.94	0.17	0.7
60260	60	S-Bar	Flanged	Straight	90°	80°	3.11	0.31	0.7	0.44	0.63	0.94	0.94	0.17	0.886
60280	60	S-Bar	Straight	Straight	90°	80°	3.11	0.63	1.02	0.44	0.63	0.94	0.23	0.17	0.886
60300	60	U-Bar	Straight	Straight	90°	80°	3.11	0.63	1.02	0.44	0.63	0.94	0.23	0.17	0.7
18000	150	U-Bar	Flanged	T-Handle	90°	170°	2.25	0.58	1.39	0.53	0.63	1.03	1	0.17	1.21
18000P	150	U-Bar	Flanged	T-Handle	90°	170°	2.25	0.58	1.39	0.53	0.63	1.03	1	0.17	1.21
60060	150	U-Bar	Flanged	Straight	94°	76°	4.41	0.75	1.5	0.53	0.66	0.99	1.06	0.2	1.46
60220	150	U-Bar	Flanged	T-Handle	90°	170°	2.25	0.58	1.39	0.53	0.63	1.03	1	0.17	1.21
60140	200	U-Bar	Straight	Straight	85°	60°	5.59	1.49	1.99	1	0.16	1.46	0.31	0.236	2.21
60160	200	U-Bar	Flanged	Straight	85°	60°	5.59	1	1.5	1	0.87	1.46	1.42	0.236	2.21
60180	200	S-Bar	Flanged	Straight	85°	60°	5.59	1	1.5	1	0.87	1.46	1.42	0.236	2.21
60200	200	U-Bar	Straight	Straight	85°	60°	5.59	1.49	1.99	1	0.16	1.46	0.31	0.236	2.21
60080	300	U-Bar	Flanged	T-Handle	90°	170°	3.69	0.87	2.31	0.75	1.16	1.73	1.81	0.28	1.97
17020	300	U-Bar	Flanged	T-Handle	90°	170°	3.69	0.87	2.31	0.75	1.16	1.73	1.81	0.28	1.97
19060	500	U-Bar	Flanged	Straight	90°	65°	6.62	1.37	1.87	1	0.87	1.5	1.38	0.26	2.76
60100	500	U-Bar	Flanged	Straight	90°	65°	6.62	1.37	1.87	0.82	0.87	1.5	1.38	0.26	2.76
60120	500	U-Bar	Straight	Straight	90°	65°	6.62	1.91	2.42	0.82	0.16	1.5	0.47	0.26	2.76
60020	700	U-Bar	Flanged	T-Handle	90°	170°	5.32	1.31	3.47	1.22	1.5	2.53	2.47	0.31	2.78
60000	750	U-Bar	Flanged	Straight	85°	50°	11.5	1.75	2.5	1.63	1.63	2.27	2.25	0.33	4.21
60040	750	U-Bar	Straight	Straight	85°	50°	11.5	2.48	3.23	1.63	0.16	2.27	0.62	0.33	4.21

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
