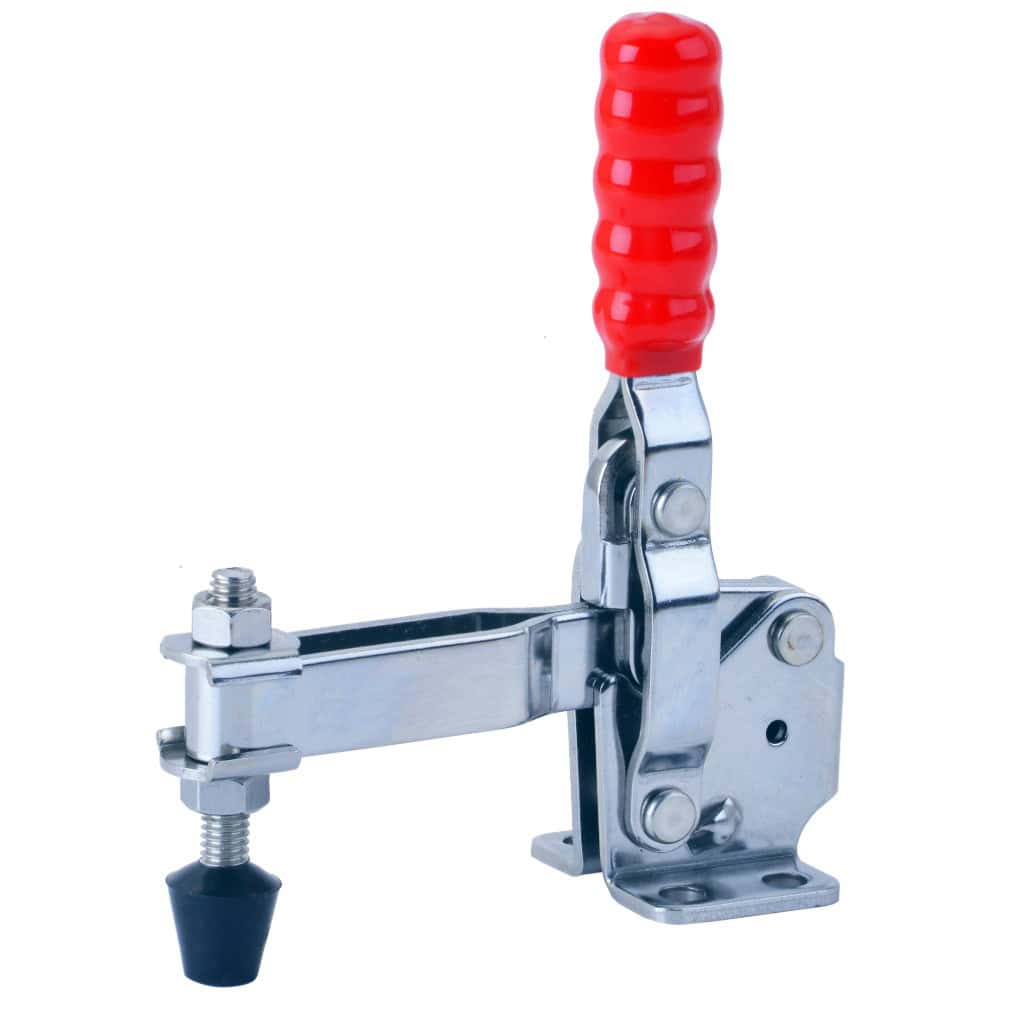

500LB U-BAR FLG BASE VERTICAL CLAMP (PLUNGER) STAINLESS STEEL - 17060P - Shop-Force

500LB U-BAR FLG BASE VERTICAL CLAMP (PLUNGER) STAINLESS STEEL - 17060P - Shop-Force - Image 2

500LB U-BAR FLG BASE VERTICAL CLAMP (PLUNGER) STAINLESS STEEL - 17060P - Shop-Force - Image 3

500LB U-BAR FLG BASE VERTICAL CLAMP (PLUNGER) STAINLESS STEEL – 17060P – Shop-Force

$35.55

SKU: 17060P

Availability: 51 in stock

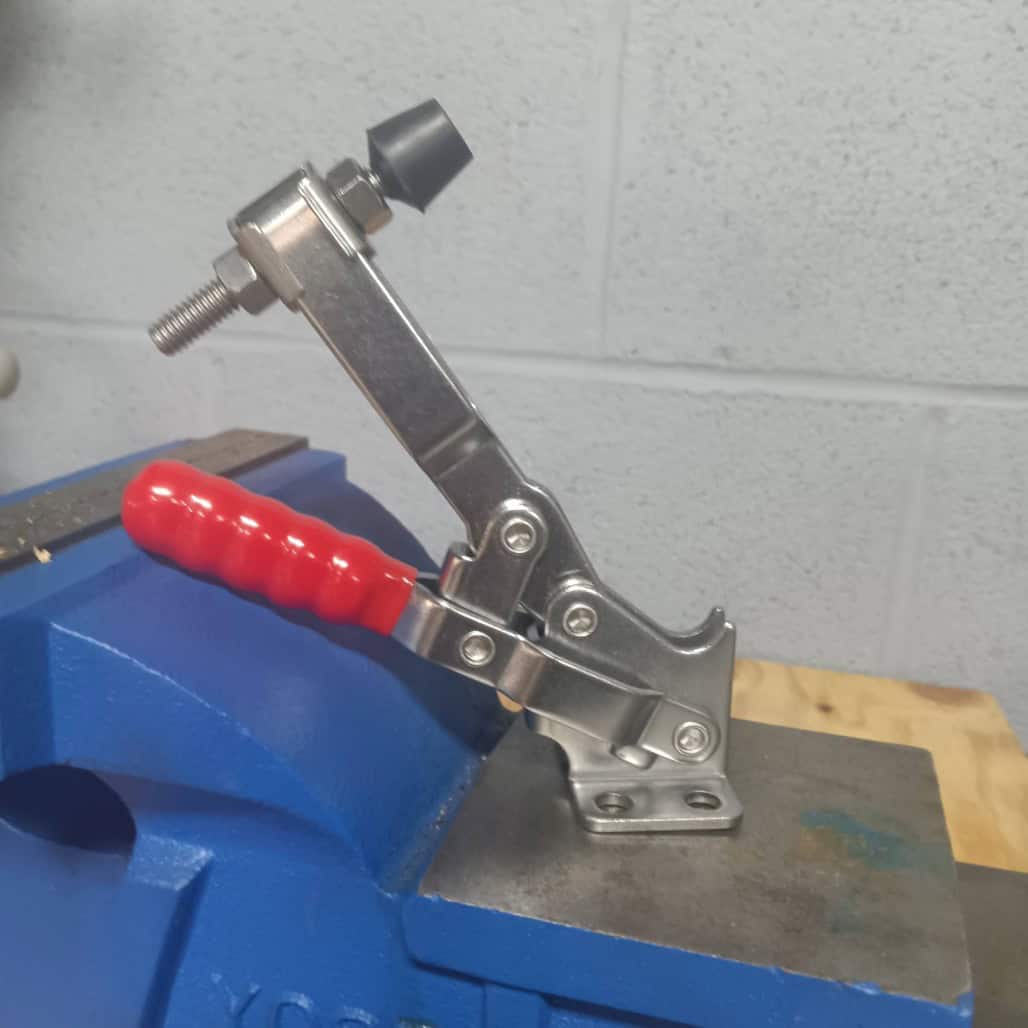

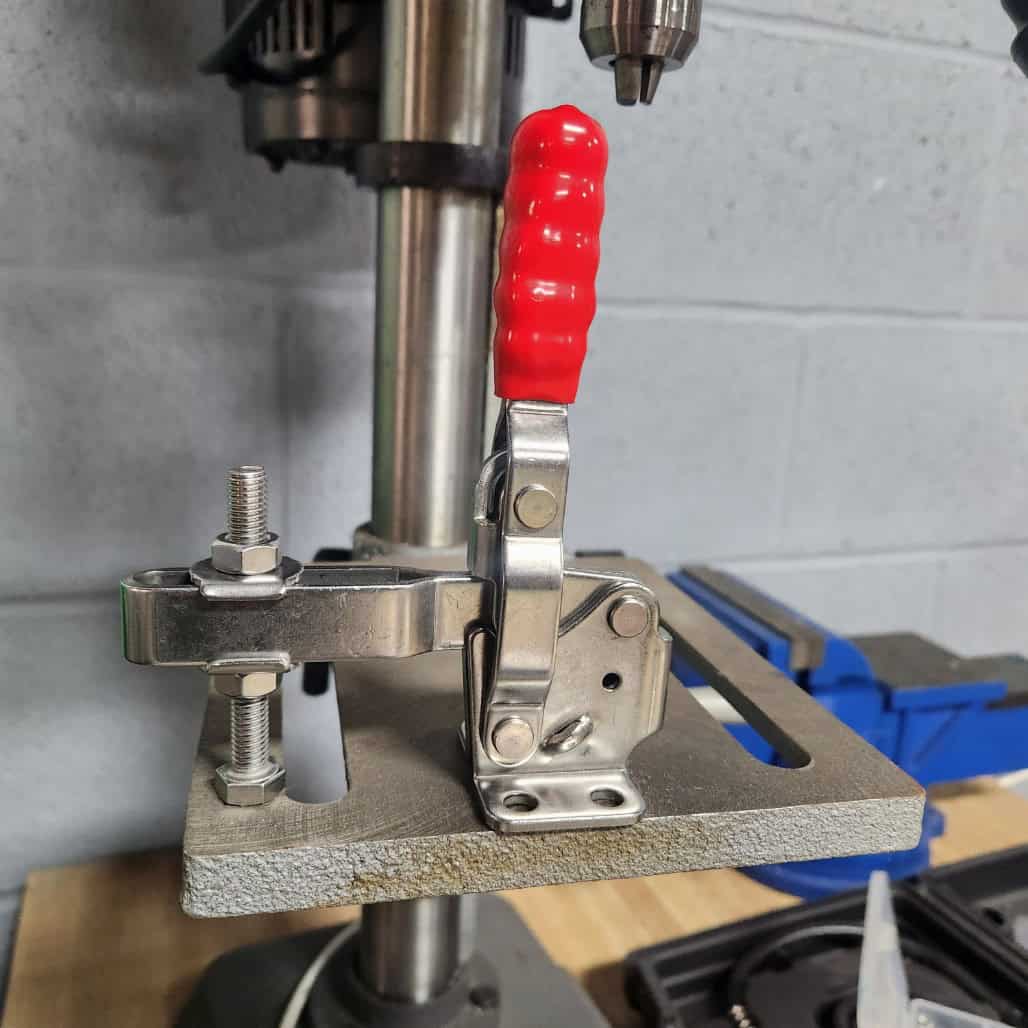

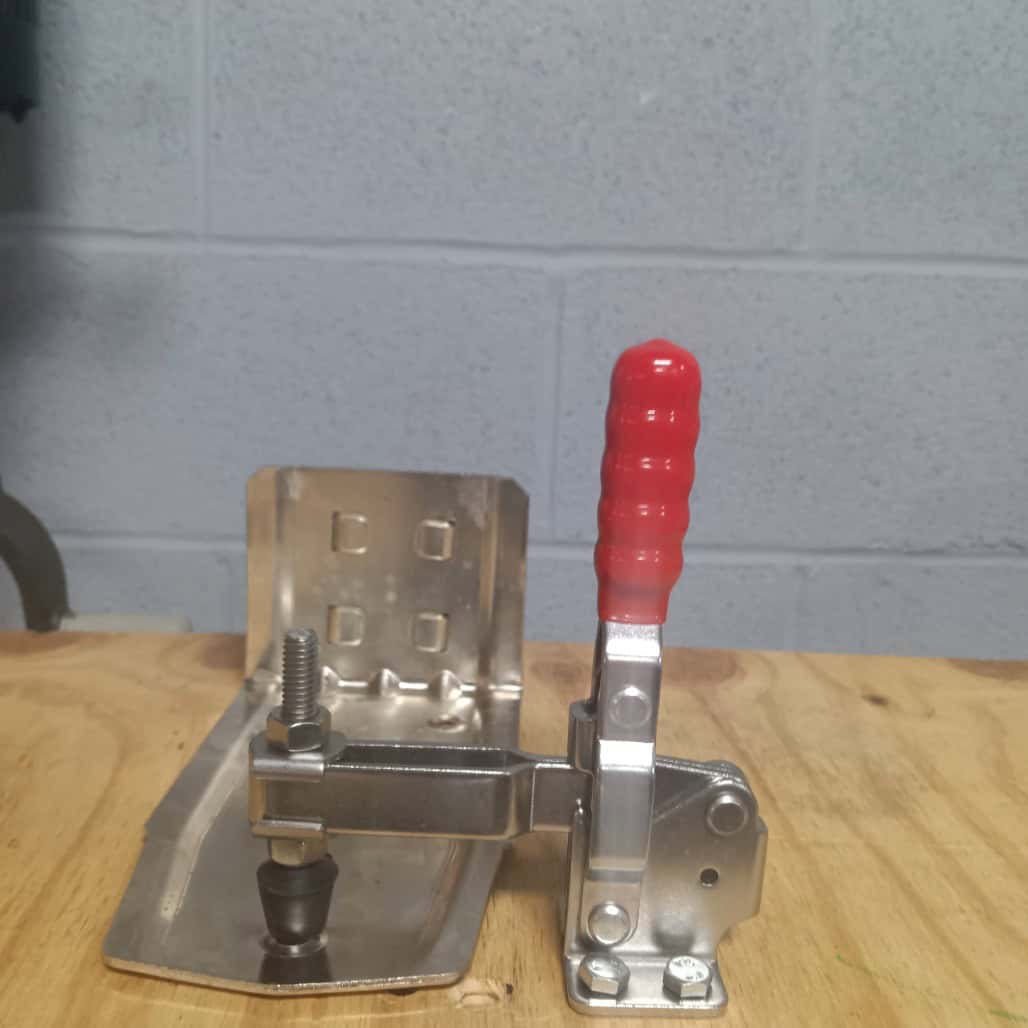

This Shop-Force 500lb u-bar flg base vertical hold-down toggle clamp (plunger) stainless is designed for repeatable hold-down clamping in machining fixtures, assembly stations, and production workholding. Its vertical over-center action helps hold workpieces securely during setup and operation. Holding capacity: 500 LBS Clamping Pressue; Construction: Made of 304 Stainless Steel; Base: Flanged.

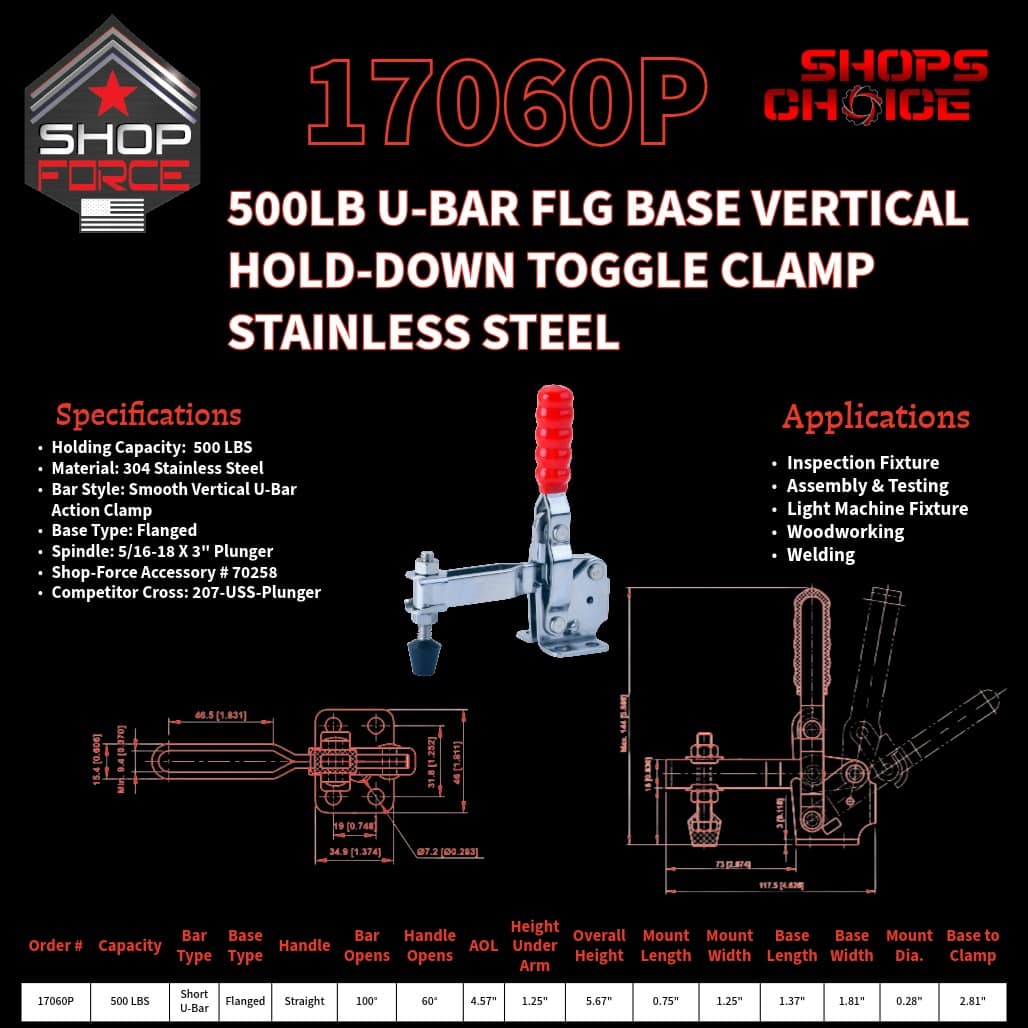

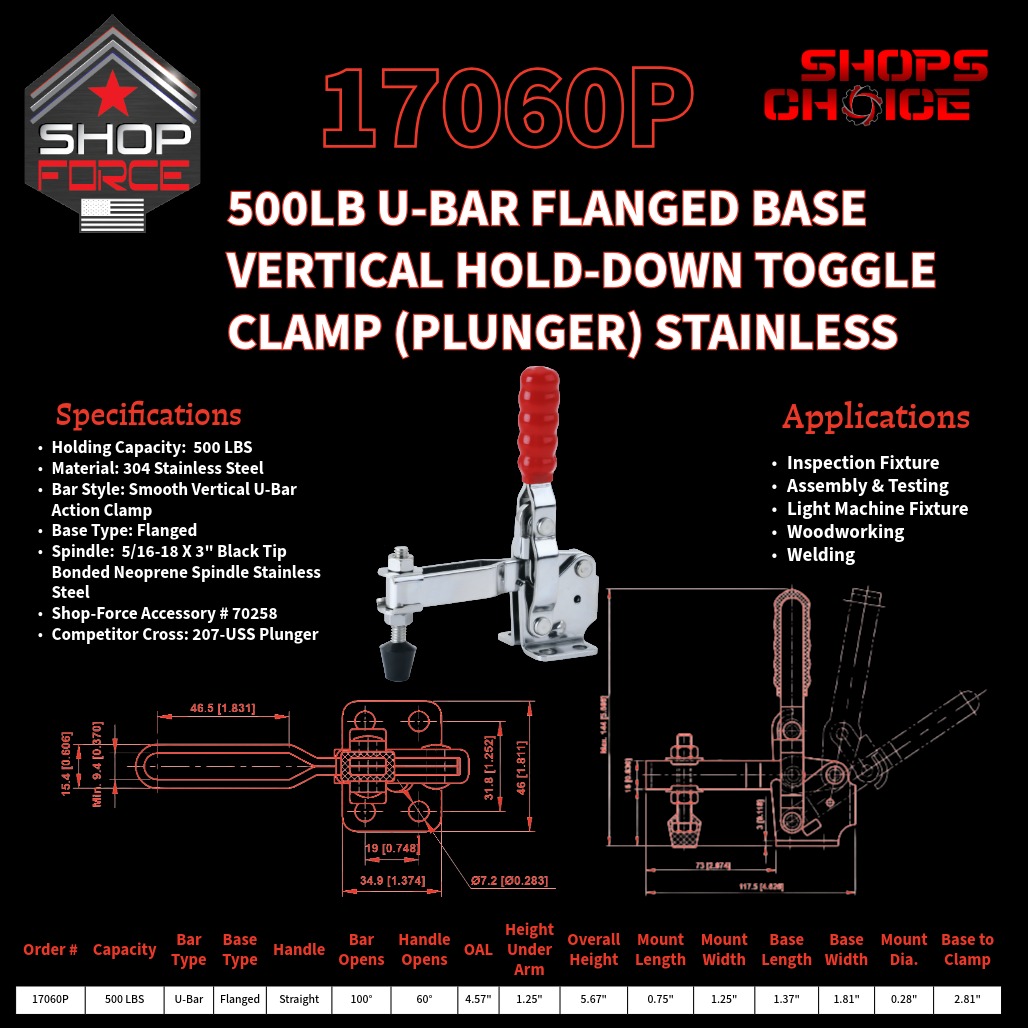

Specifications & Tolerances

Competitor: 207-USS (Plunger)
Holding Capacity: 500 LBS Clamping Pressue
Material: Made of 304 Stainless Steel
Bar Style: Smooth Vertical U-Bar Action Clamp
Base Type: Flanged
Spindle: 5/16-18 X 3" Black Tip Bonded Neoprene Spindle Stainless Steel
Shop-Force Accessory #: 70258
Customer Satisfaction Guarantee
Veteran Owned and Operated

Applications

Inspection Fixture
Assembly & Testing
Light Machine Fixture
Woodworking
Welding

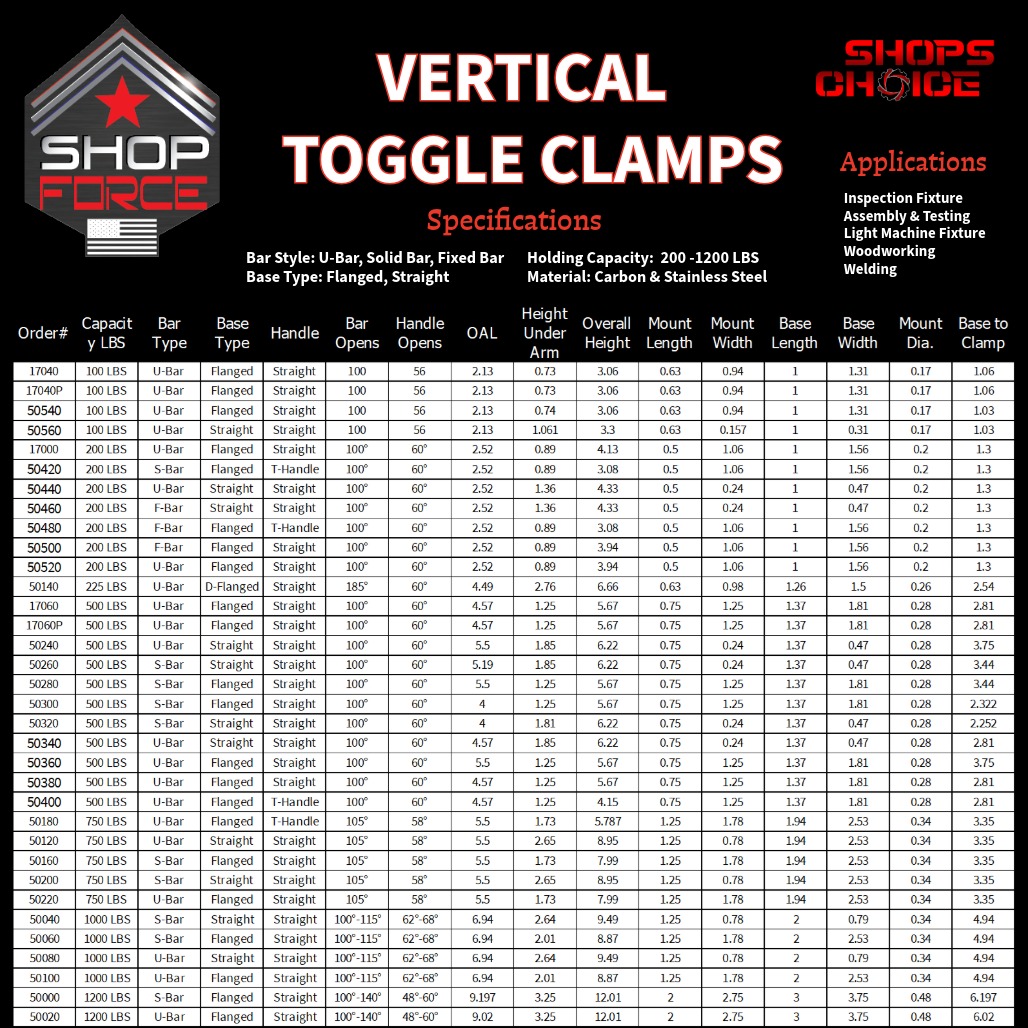

Order#	Capacity LBS	Bar Type	Base Type	Handle	Bar Opens	Handle Opens	OAL	Height Under Arm	Overall Height	Mount Length	Mount Width	Base Length	Base Width	Mount Dia.	Base to Clamp
17040	100	U-Bar	Flanged	Straight	100	56	2.13	0.73	3.06	0.63	0.94	1	1.31	0.17	1.06
17040P	100	U-Bar	Flanged	Straight	100	56	2.13	0.73	3.06	0.63	0.94	1	1.31	0.17	1.06
50540	100	U-Bar	Flanged	Straight	100	56	2.13	0.74	3.06	0.63	0.94	1	1.31	0.17	1.03
50560	100	U-Bar	Straight	Straight	100	56	2.13	1.061	3.3	0.63	0.157	1	0.31	0.17	1.03
17000	200	U-Bar	Flanged	Straight	100°	60°	2.52	0.89	4.13	0.5	1.06	1	1.56	0.2	1.3
50420	200	S-Bar	Flanged	T-Handle	100°	60°	2.52	0.89	3.08	0.5	1.06	1	1.56	0.2	1.3
50440	200	U-Bar	Straight	Straight	100°	60°	2.52	1.36	4.33	0.5	0.24	1	0.47	0.2	1.3
50460	200	F-Bar	Straight	Straight	100°	60°	2.52	1.36	4.33	0.5	0.24	1	0.47	0.2	1.3
50480	200	F-Bar	Flanged	T-Handle	100°	60°	2.52	0.89	3.08	0.5	1.06	1	1.56	0.2	1.3
50500	200	F-Bar	Flanged	Straight	100°	60°	2.52	0.89	3.94	0.5	1.06	1	1.56	0.2	1.3
50520	200	U-Bar	Flanged	Straight	100°	60°	2.52	0.89	3.94	0.5	1.06	1	1.56	0.2	1.3
50140	225	U-Bar	D-Flanged	Straight	185°	60°	4.49	2.76	6.66	0.63	0.98	1.26	1.5	0.26	2.54
17060	500	U-Bar	Flanged	Straight	100°	60°	4.57	1.25	5.67	0.75	1.25	1.37	1.81	0.28	2.81
17060P	500	U-Bar	Flanged	Straight	100°	60°	4.57	1.25	5.67	0.75	1.25	1.37	1.81	0.28	2.81
50240	500	U-Bar	Straight	Straight	100°	60°	5.5	1.85	6.22	0.75	0.24	1.37	0.47	0.28	3.75
50260	500	S-Bar	Straight	Straight	100°	60°	5.19	1.85	6.22	0.75	0.24	1.37	0.47	0.28	3.44
50280	500	S-Bar	Flanged	Straight	100°	60°	5.5	1.25	5.67	0.75	1.25	1.37	1.81	0.28	3.44
50300	500	S-Bar	Flanged	Straight	100°	60°	4	1.25	5.67	0.75	1.25	1.37	1.81	0.28	2.322
50320	500	S-Bar	Straight	Straight	100°	60°	4	1.81	6.22	0.75	0.24	1.37	0.47	0.28	2.252
50340	500	U-Bar	Straight	Straight	100°	60°	4.57	1.85	6.22	0.75	0.24	1.37	0.47	0.28	2.81
50360	500	U-Bar	Flanged	Straight	100°	60°	5.5	1.25	5.67	0.75	1.25	1.37	1.81	0.28	3.75
50380	500	U-Bar	Flanged	Straight	100°	60°	4.57	1.25	5.67	0.75	1.25	1.37	1.81	0.28	2.81
50400	500	U-Bar	Flanged	T-Handle	100°	60°	4.57	1.25	4.15	0.75	1.25	1.37	1.81	0.28	2.81
50180	750	U-Bar	Flanged	T-Handle	105°	58°	5.5	1.73	5.787	1.25	1.78	1.94	2.53	0.34	3.35
50120	750	U-Bar	Straight	Straight	105°	58°	5.5	2.65	8.95	1.25	0.78	1.94	2.53	0.34	3.35
50160	750	S-Bar	Flanged	Straight	105°	58°	5.5	1.73	7.99	1.25	1.78	1.94	2.53	0.34	3.35
50200	750	S-Bar	Straight	Straight	105°	58°	5.5	2.65	8.95	1.25	0.78	1.94	2.53	0.34	3.35
50220	750	U-Bar	Flanged	Straight	105°	58°	5.5	1.73	7.99	1.25	1.78	1.94	2.53	0.34	3.35
50040	1000	S-Bar	Straight	Straight	100°-115°	62°-68°	6.94	2.64	9.49	1.25	0.78	2	0.79	0.34	4.94
50060	1000	S-Bar	Flanged	Straight	100°-115°	62°-68°	6.94	2.01	8.87	1.25	1.78	2	2.53	0.34	4.94
50080	1000	U-Bar	Straight	Straight	100°-115°	62°-68°	6.94	2.64	9.49	1.25	0.78	2	0.79	0.34	4.94
50100	1000	U-Bar	Flanged	Straight	100°-115°	62°-68°	6.94	2.01	8.87	1.25	1.78	2	2.53	0.34	4.94
50000	1200	S-Bar	Flanged	Straight	100°-140°	48°-60°	9.197	3.25	12.01	2	2.75	3	3.75	0.48	6.197
50020	1200	U-Bar	Flanged	Straight	100°-140°	48°-60°	9.02	3.25	12.01	2	2.75	3	3.75	0.48	6.02
