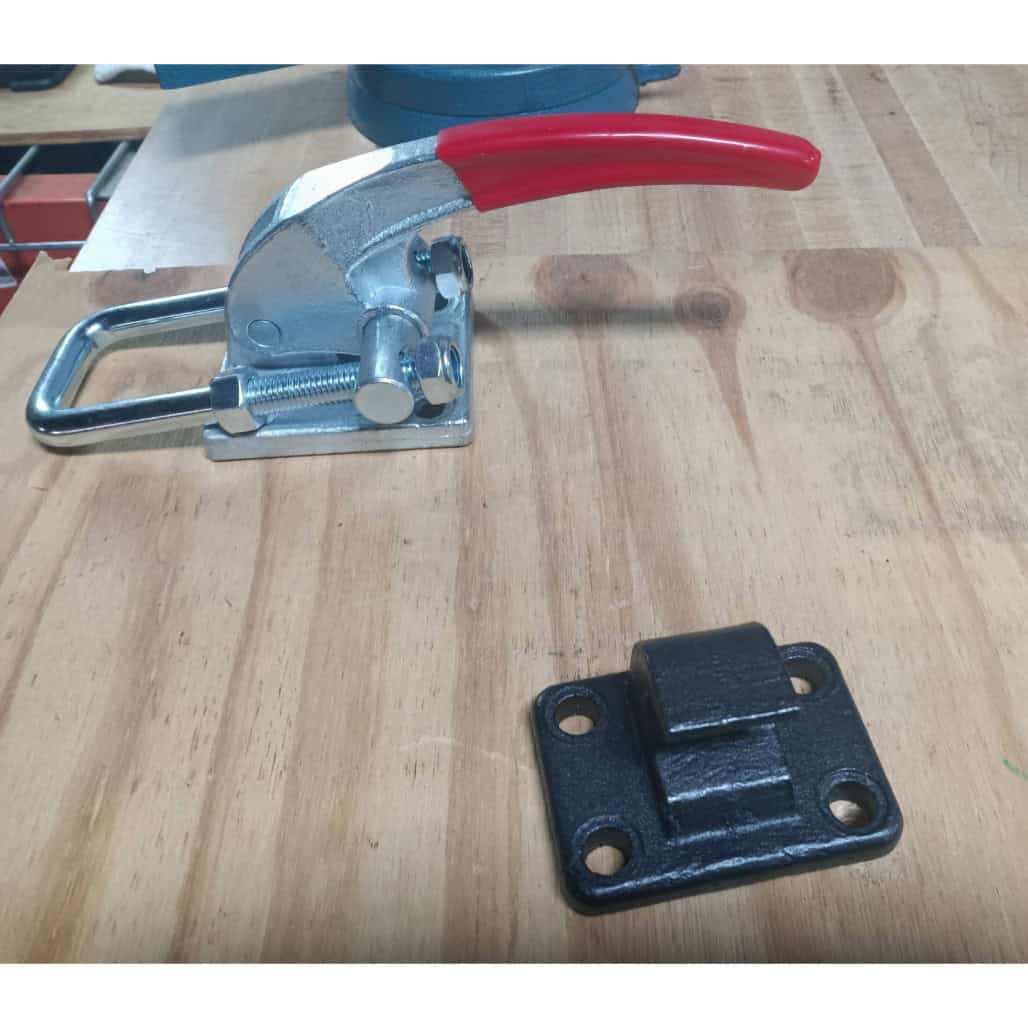

7500lb · U-HOOK · LATCH CLAMP · LATCH PLATE INCLUDED - Shop'sChoice™

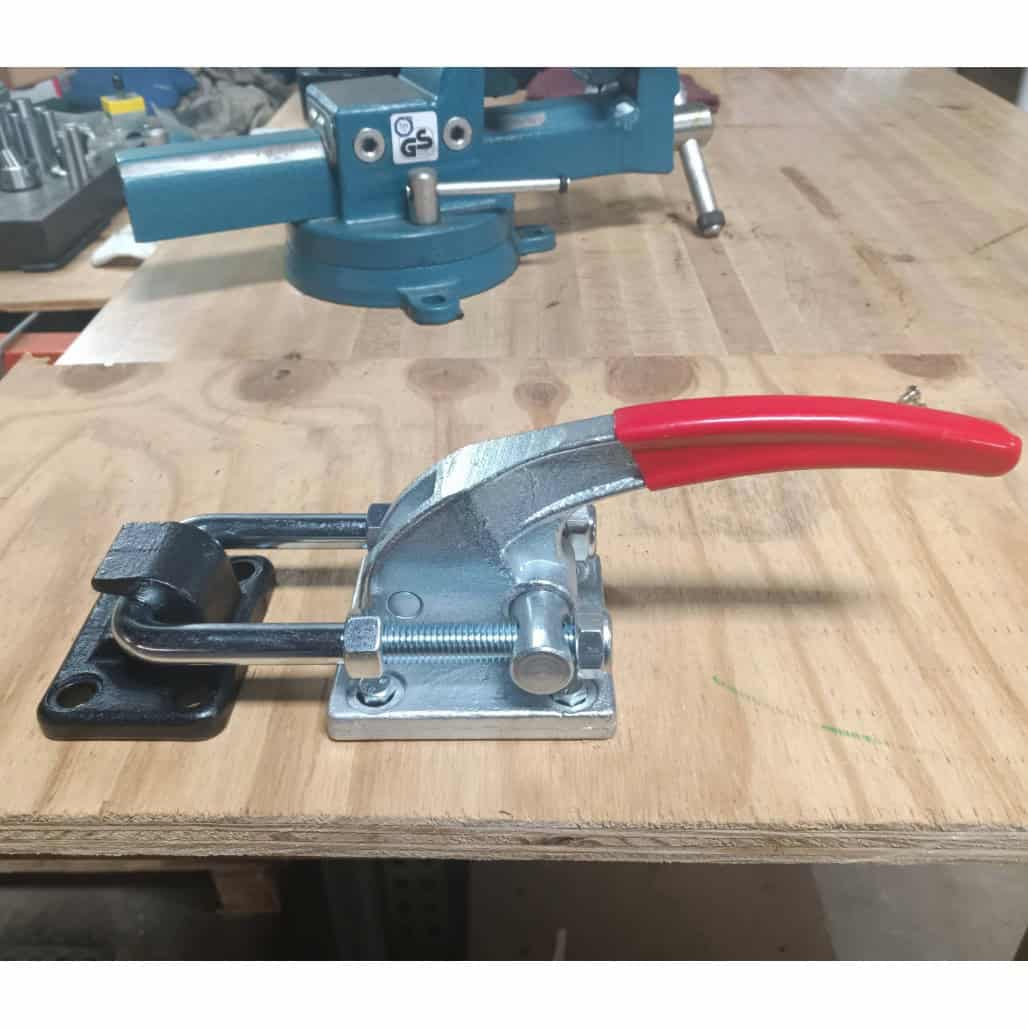

7500lb · U-HOOK · LATCH CLAMP · LATCH PLATE INCLUDED - Shop'sChoice™ - Image 2

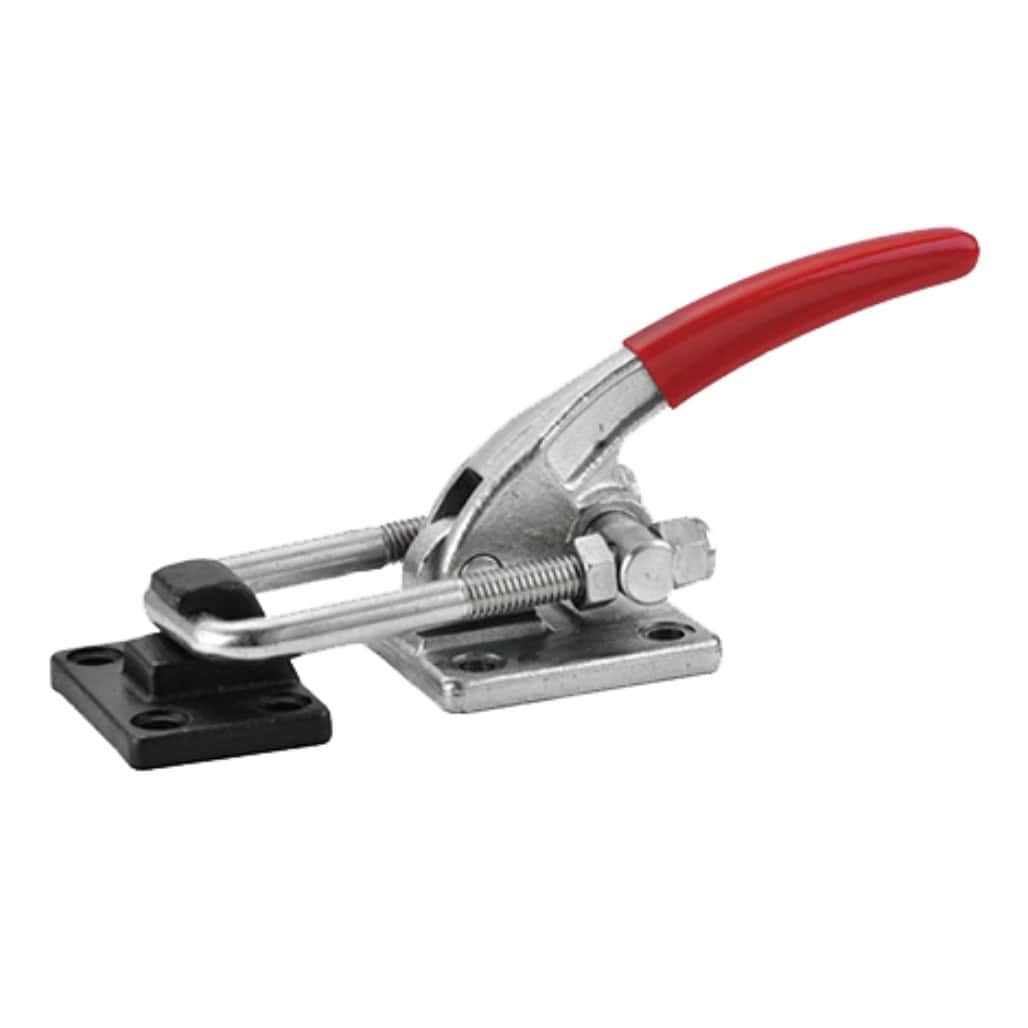

7500lb · U-HOOK · LATCH CLAMP · LATCH PLATE INCLUDED - Shop'sChoice™ - Image 3

7500lb · U-HOOK · LATCH CLAMP · LATCH PLATE INCLUDED – Shop’sChoice™

$91.20

SKU: 40000P

Availability: 8 in stock

Shop-Force 7500 lb 7500lb · u-hook · latch clamp · latch plate included provides secure pull-action clamping for closures, covers, fixtures, and assembly applications. Its over-center latch mechanism draws mating components together for repeatable holding. Constructed from carbon steel, this flanged clamp uses a u-hook latch configuration. Spindle specification: M12 X 5.72 U-BOLT SPINDLE ACCESSORY & Latch Plate: HEAVY DUTY Latch Plate Accessory 3.13L X 2.26W.

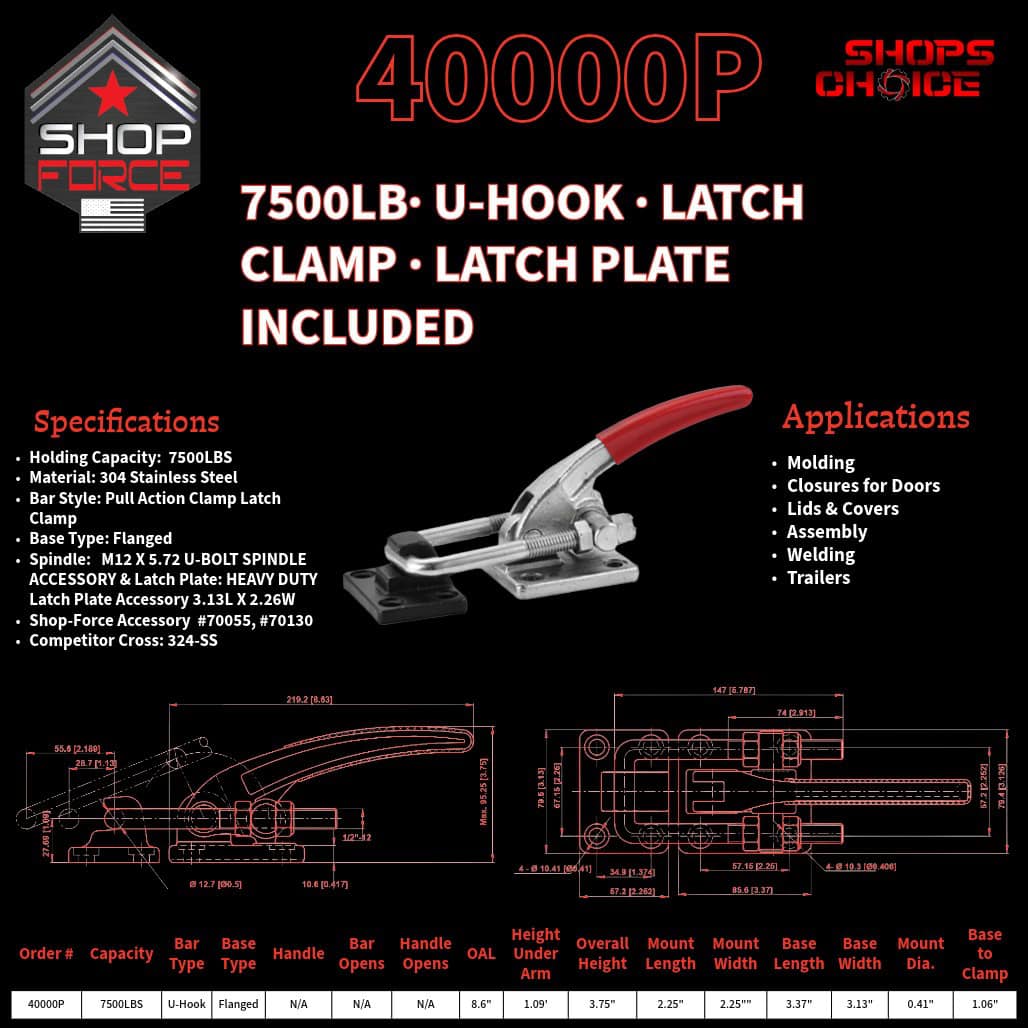

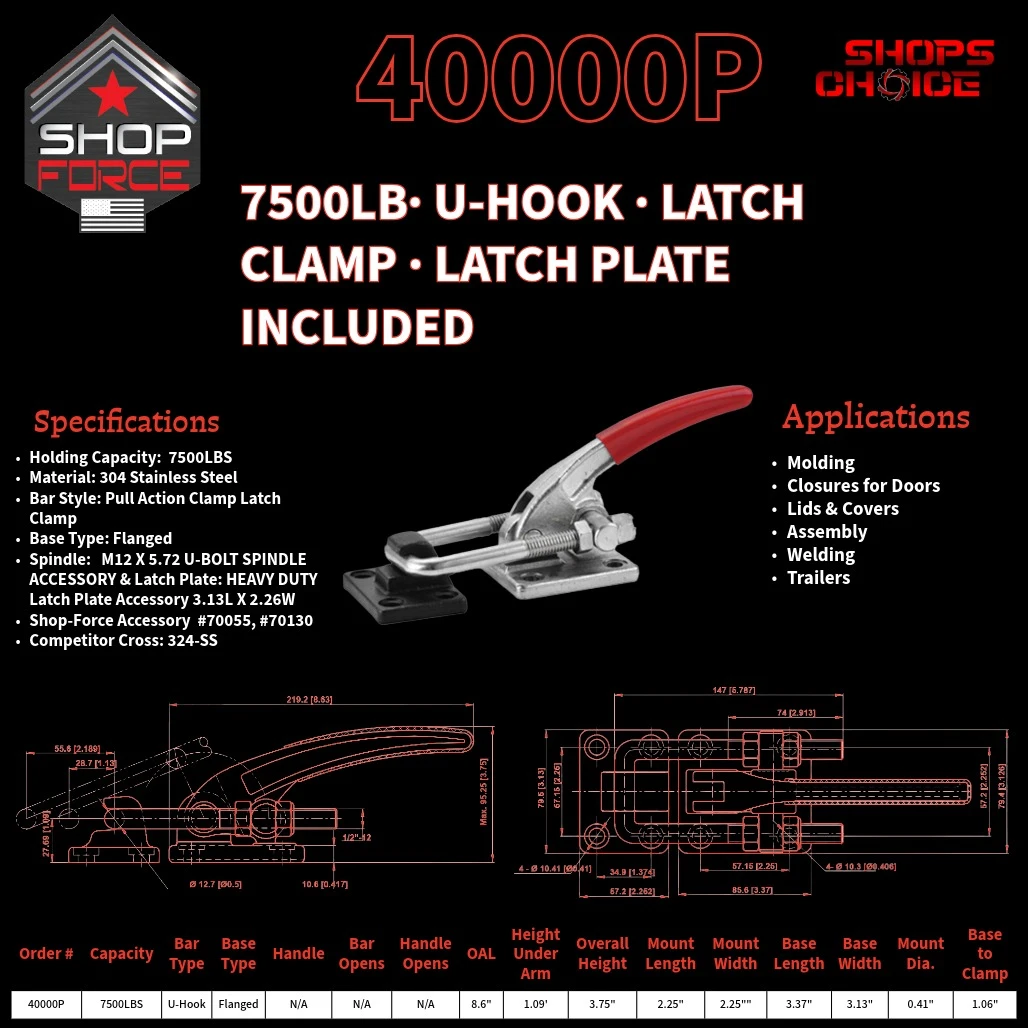

Specifications & Tolerances

Competitor: 385+Plate
Holding Capacity: 7500 LBS Clamping Pressue
Material: Made of High Quality Carbon Steel
Bar Style: Pull Action Latch Clamp
Base Type: Flanged
Spindle Size: M12 X 5.72 U-BOLT SPINDLE ACCESSORY & Latch Plate: HEAVY DUTY Latch Plate Accessory 3.13L X 2.26W
Shop-Force Accesory #70055, 70130
Customer Satisfaction Guarantee
Veteran Owned and Operated

Applications

Molding
Closures for Doors
Lids & Covers
Assembly
Welding
Attachment

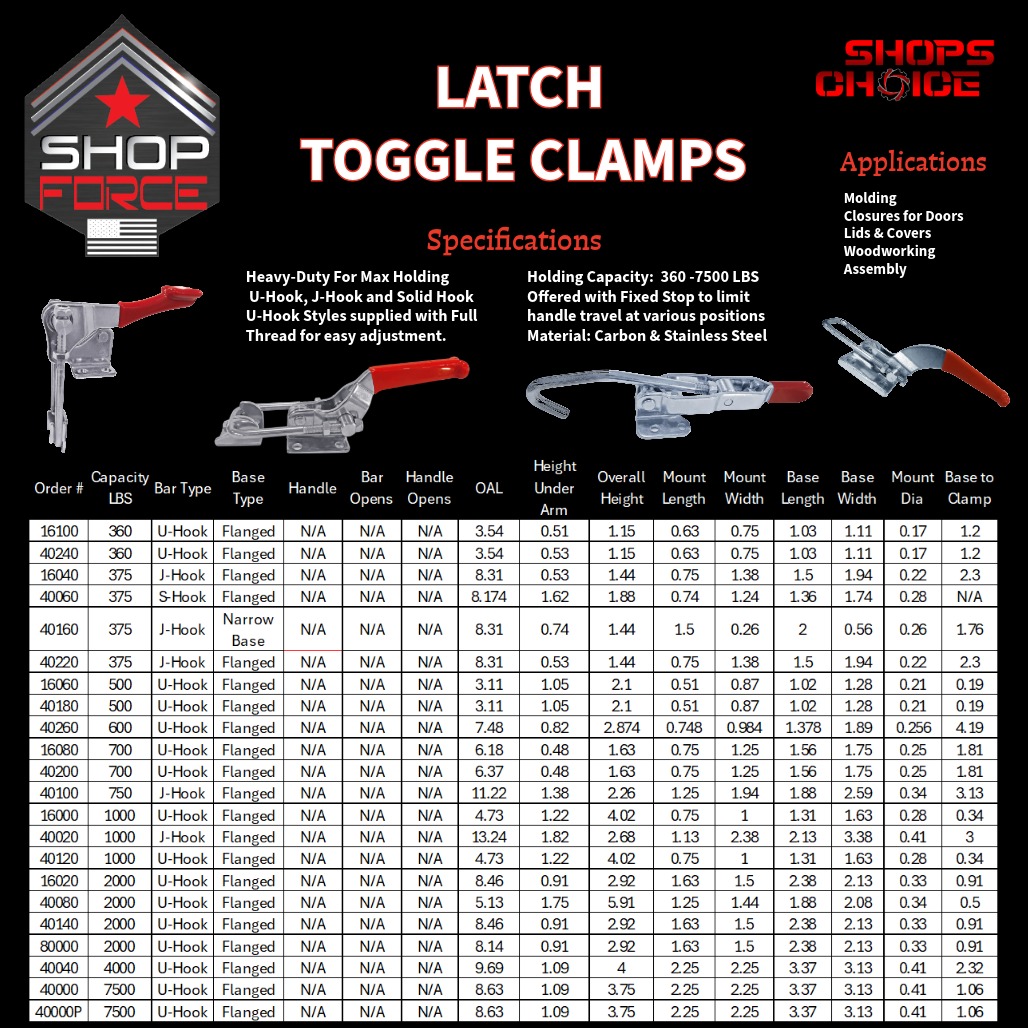

Latch Toggle Clamp Comparison Chart

Compare models, holding capacities, mounting configurations, and dimensions.

Order #	Capacity LBS	Bar Type	Base Type	Handle	Bar Opens	Handle Opens	OAL	Height Under Arm	Overall Height	Mount Length	Mount Width	Base Length	Base Width	Mount Dia	Base to Clamp
16100	360	U-Hook	Flanged	N/A	N/A	N/A	3.54	0.51	1.15	0.63	0.75	1.03	1.11	0.17	1.2
40240	360	U-Hook	Flanged	N/A	N/A	N/A	3.54	0.53	1.15	0.63	0.75	1.03	1.11	0.17	1.2
16040	375	J-Hook	Flanged	N/A	N/A	N/A	8.31	0.53	1.44	0.75	1.38	1.5	1.94	0.22	2.3
40060	375	S-Hook	Flanged	N/A	N/A	N/A	8.174	1.62	1.88	0.74	1.24	1.36	1.74	0.28	N/A
40160	375	J-Hook	Narrow Base	N/A	N/A	N/A	8.31	0.74	1.44	1.5	0.26	2	0.56	0.26	1.76
40220	375	J-Hook	Flanged	N/A	N/A	N/A	8.31	0.53	1.44	0.75	1.38	1.5	1.94	0.22	2.3
16060	500	U-Hook	Flanged	N/A	N/A	N/A	3.11	1.05	2.1	0.51	0.87	1.02	1.28	0.21	0.19
40180	500	U-Hook	Flanged	N/A	N/A	N/A	3.11	1.05	2.1	0.51	0.87	1.02	1.28	0.21	0.19
40260	600	U-Hook	Flanged	N/A	N/A	N/A	7.48	0.82	2.874	0.748	0.984	1.378	1.89	0.256	4.19
16080	700	U-Hook	Flanged	N/A	N/A	N/A	6.18	0.48	1.63	0.75	1.25	1.56	1.75	0.25	1.81
40200	700	U-Hook	Flanged	N/A	N/A	N/A	6.37	0.48	1.63	0.75	1.25	1.56	1.75	0.25	1.81
40100	750	J-Hook	Flanged	N/A	N/A	N/A	11.22	1.38	2.26	1.25	1.94	1.88	2.59	0.34	3.13
16000	1000	U-Hook	Flanged	N/A	N/A	N/A	4.73	1.22	4.02	0.75	1	1.31	1.63	0.28	0.34
40020	1000	J-Hook	Flanged	N/A	N/A	N/A	13.24	1.82	2.68	1.13	2.38	2.13	3.38	0.41	3
40120	1000	U-Hook	Flanged	N/A	N/A	N/A	4.73	1.22	4.02	0.75	1	1.31	1.63	0.28	0.34
16020	2000	U-Hook	Flanged	N/A	N/A	N/A	8.46	0.91	2.92	1.63	1.5	2.38	2.13	0.33	0.91
40080	2000	U-Hook	Flanged	N/A	N/A	N/A	5.13	1.75	5.91	1.25	1.44	1.88	2.08	0.34	0.5
40140	2000	U-Hook	Flanged	N/A	N/A	N/A	8.46	0.91	2.92	1.63	1.5	2.38	2.13	0.33	0.91
80000	2000	U-Hook	Flanged	N/A	N/A	N/A	8.14	0.91	2.92	1.63	1.5	2.38	2.13	0.33	0.91
40040	4000	U-Hook	Flanged	N/A	N/A	N/A	9.69	1.09	4	2.25	2.25	3.37	3.13	0.41	2.32
40000	7500	U-Hook	Flanged	N/A	N/A	N/A	8.63	1.09	3.75	2.25	2.25	3.37	3.13	0.41	1.06
40000P	7500	U-Hook	Flanged	N/A	N/A	N/A	8.63	1.09	3.75	2.25	2.25	3.37	3.13	0.41	1.06
