CAT/BT 40 CNC Tightening Fixture – Universal Tool Holder Assembly Fixture | Shop’sChoice™

$154.77

SKU: T0100

Availability: 95 in stock

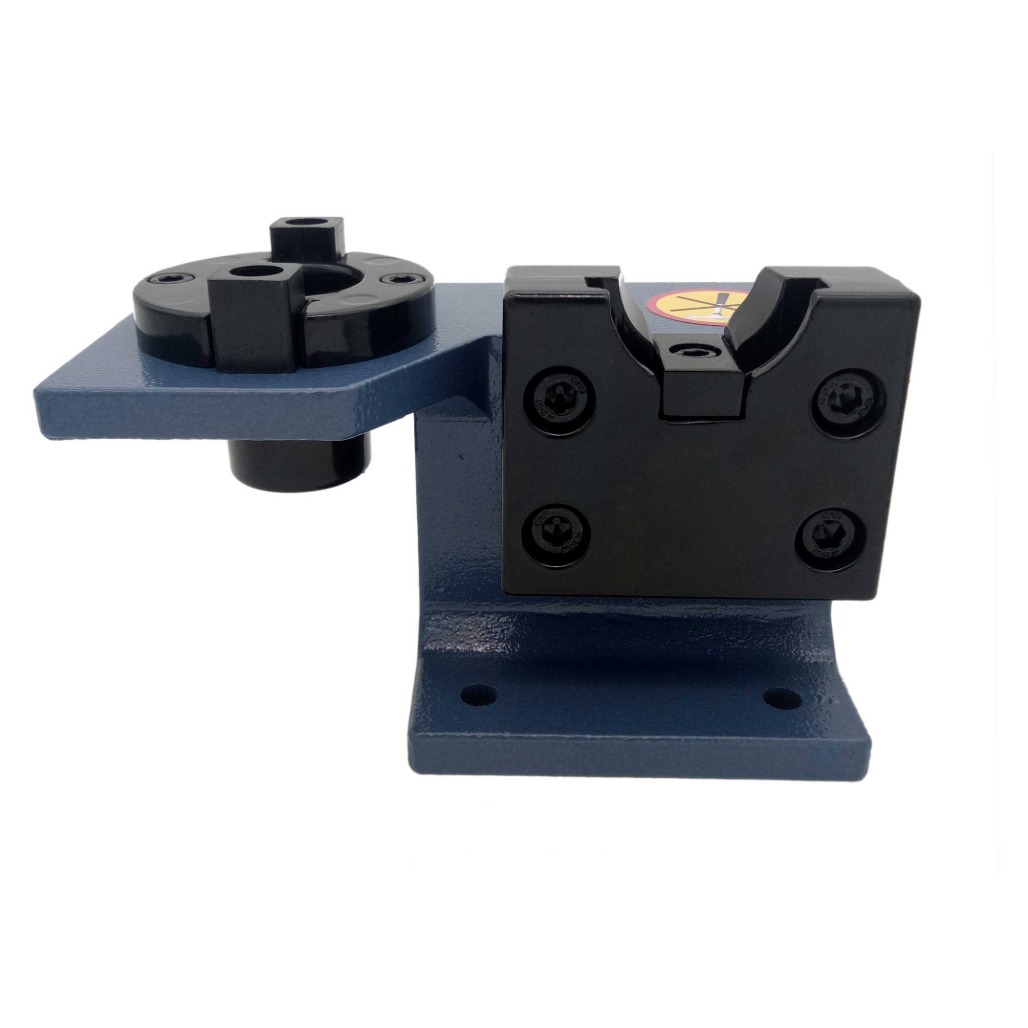

Shop-Force CAT/BT 40 precision CNC tightening fixture provides stable, bench-mounted support for CAT and BT toolholder setup, assembly, and tool changes. Designed for use in both vertical and horizontal positions.

Features

* UNIVERSAL FIXTURE: To be used with CAT and or BT Collet Chucks
* HEAVY DUTY CONSTRUCTION: Made of High Qualiyt Steel.
* POSITIONING: Can be used Vertical and Horzontal
* EASY INSTALLATION: Mount on Bench to tighten holders to allowable pressure.
* Customer Satisfaction Guarantee
* Veteran Owned Business

Specifications & Tolerances

SKU: T0100
Toolholder taper: CAT/BT 40
Package dimensions (L × W × H): 8.5 × 4 × 5 in
Package weight: 9.7 lb

Applications

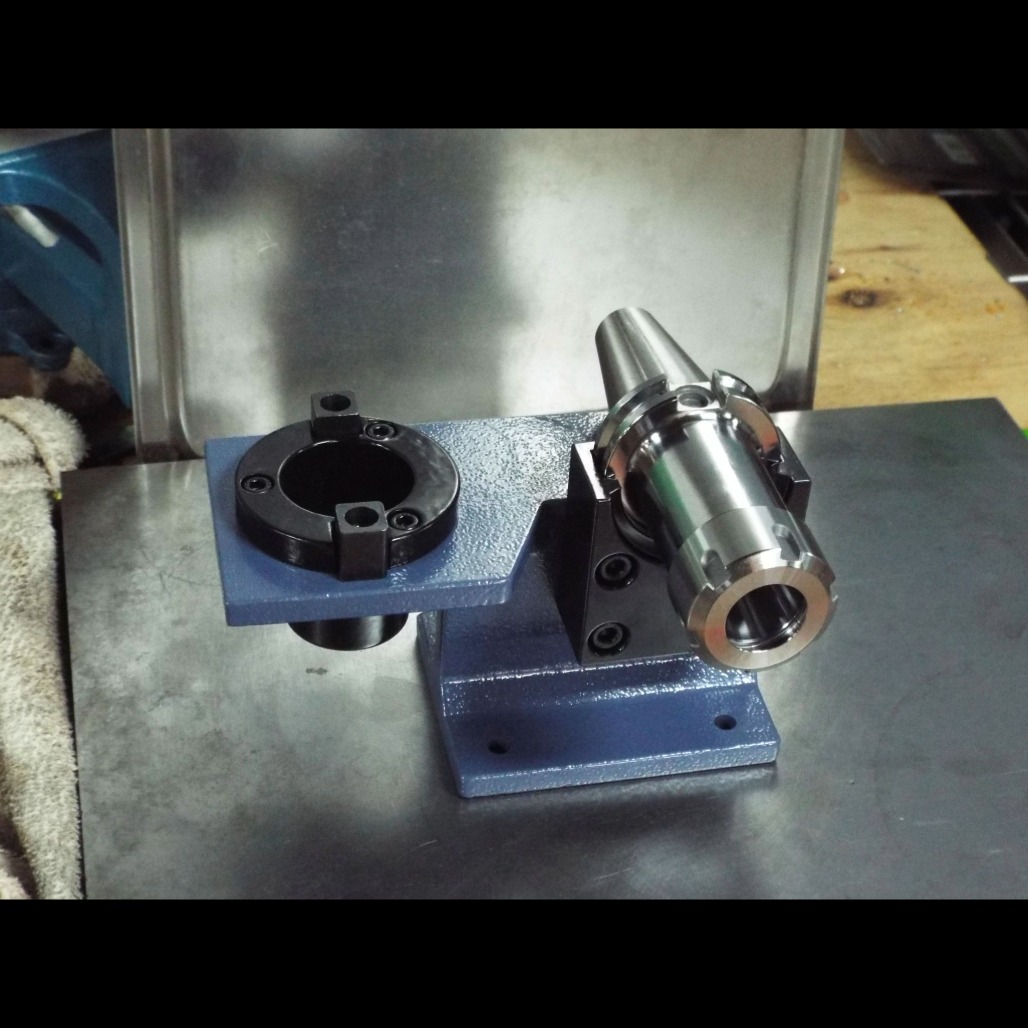

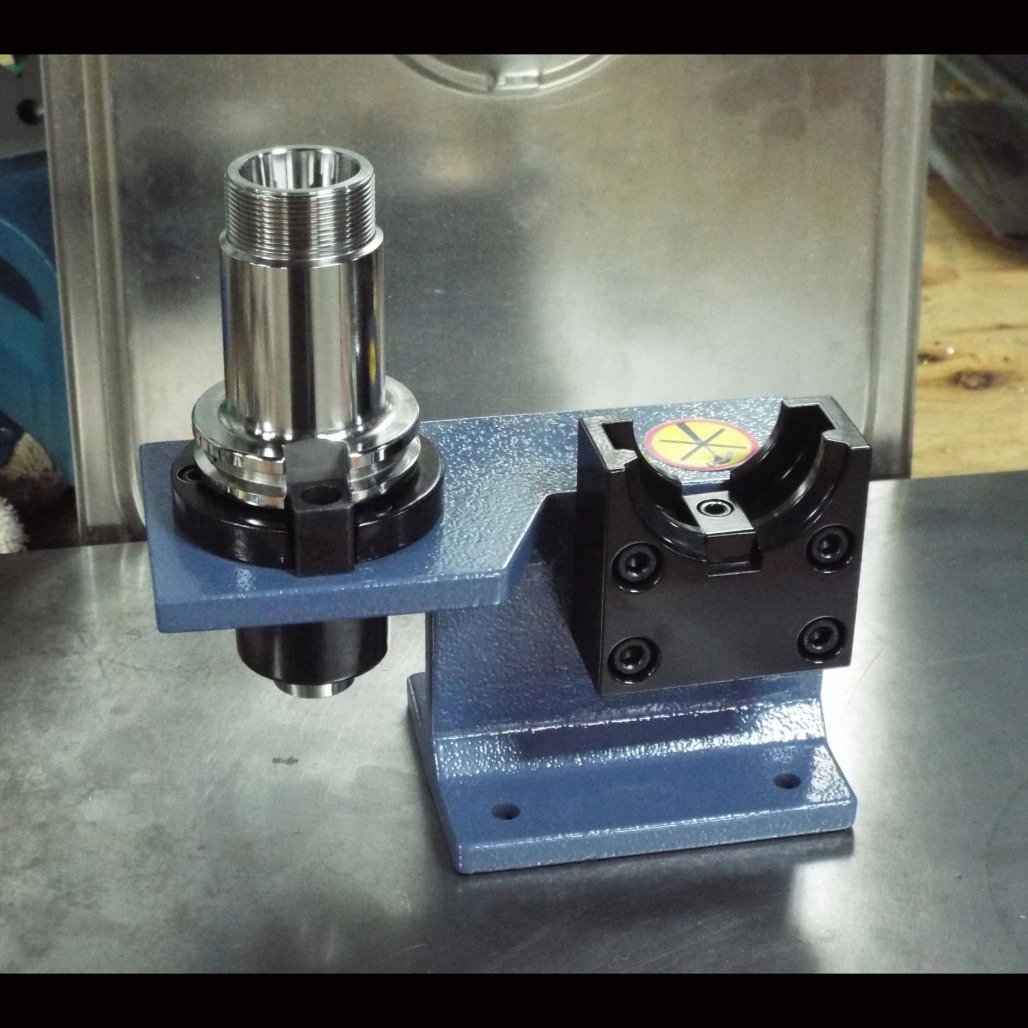

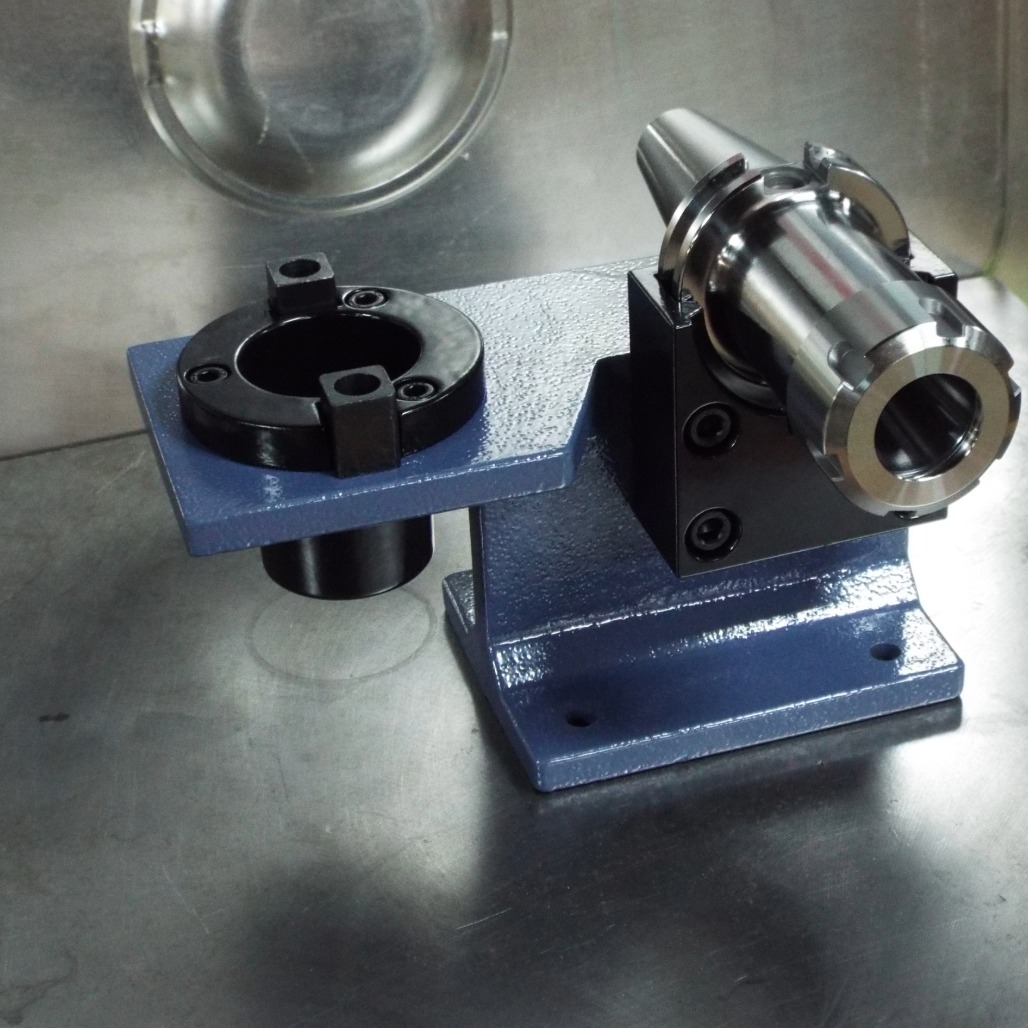

VERTICAL & HORIZONTAL TOOL SETUP: Designed to securely hold CAT and BT toolholders for convenient tightening and loosening in either position.
ER COLLET CHUCK ASSEMBLY: Provides a stable fixture for properly tightening ER collet nuts when installing or changing cutting tools.
SAFE TOOL CHANGES: Helps prevent toolholder movement while applying the required torque to collet nuts and other tooling components.
IDEAL FOR CNC TOOL PRESETTING: Perfect for preparing and assembling CNC tooling at the workbench before loading it into the machine spindle.
MACHINE SHOP & TOOLROOM USE: A practical setup fixture for CNC machining centers, production shops, toolrooms, and general machining applications.

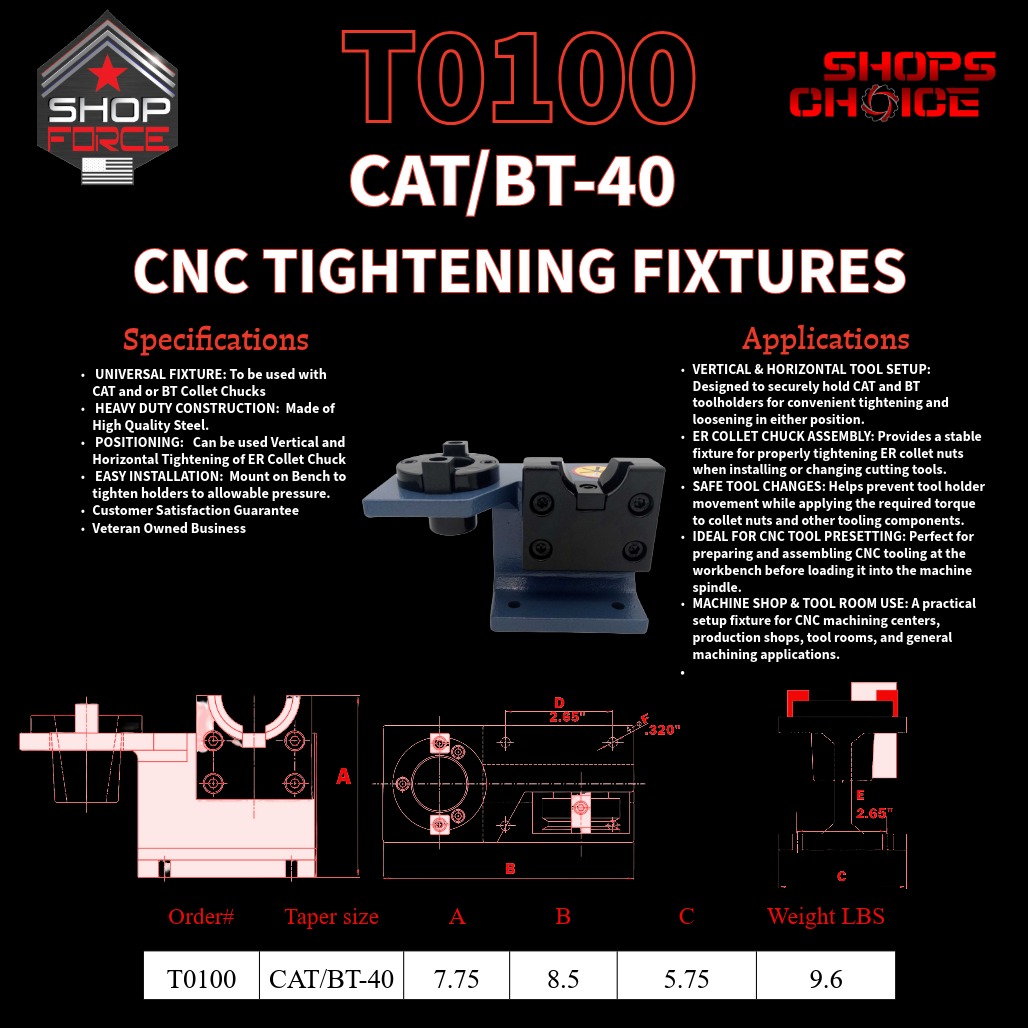

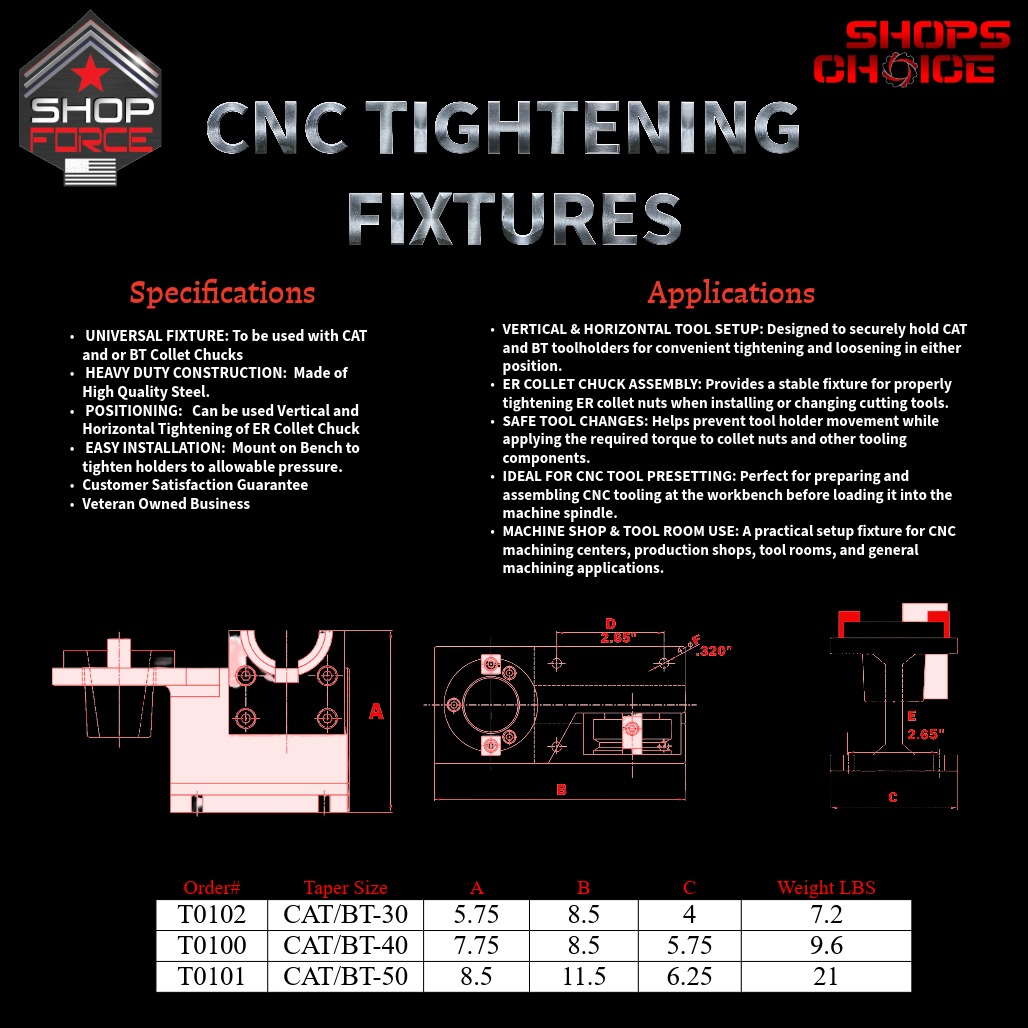

CAT/BT CNC Tightening Fixture Comparison Chart

SF SKU	Taper Size	A (in)	B (in)	C (in)	Weight (lb)
T0102	CAT/BT-30	5.75	8.5	4	7.2
T0100	CAT/BT-40	7.75	8.5	5.75	9.6
T0101	CAT/BT-50	8.5	11.5	6.25	21

Dimensional Disclaimer: Product dimensions are subject to change without notice. If a specific dimension is critical to your application, please contact Shop-Force to confirm the current specifications before ordering.
