ER40 HIGH PRECISION SPRING COLLET METRIC 9MM – CS188
$23.83
SKU: CS188
Availability: 13 in stock

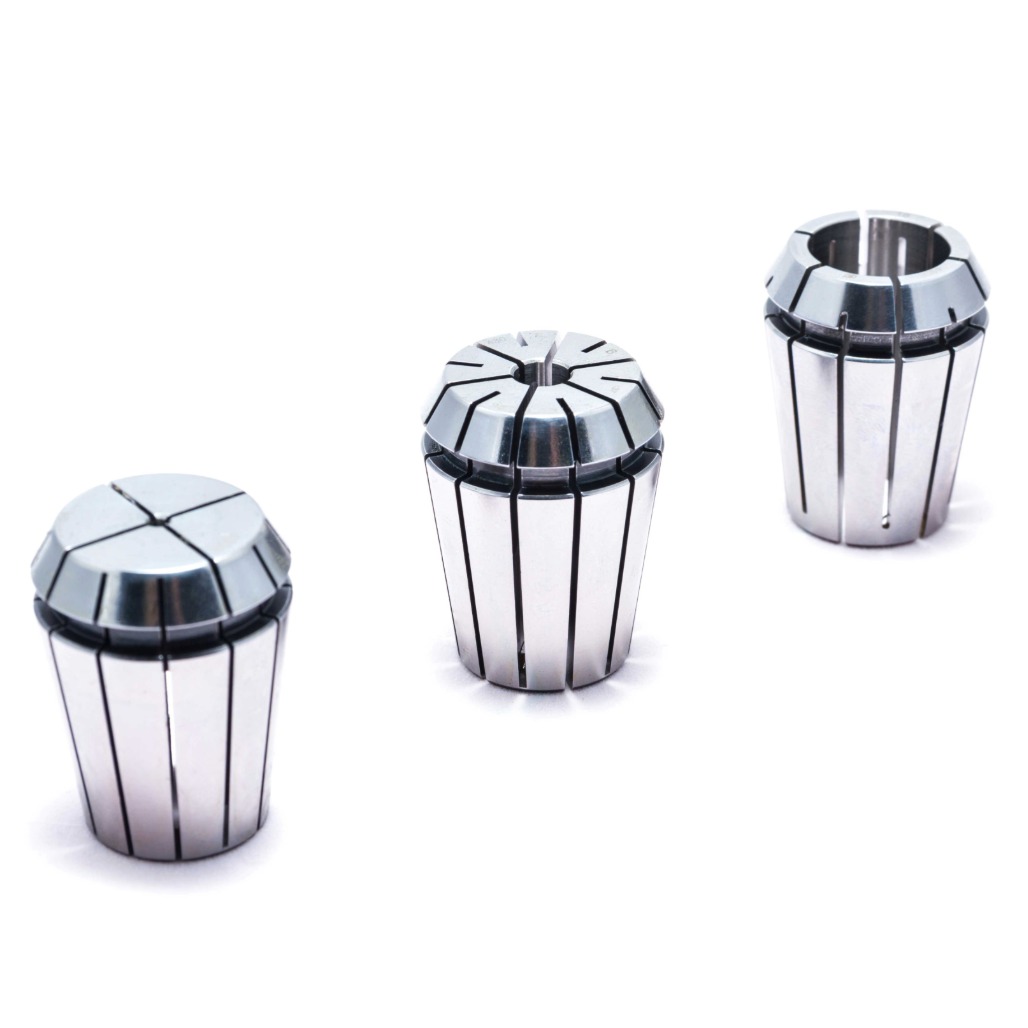

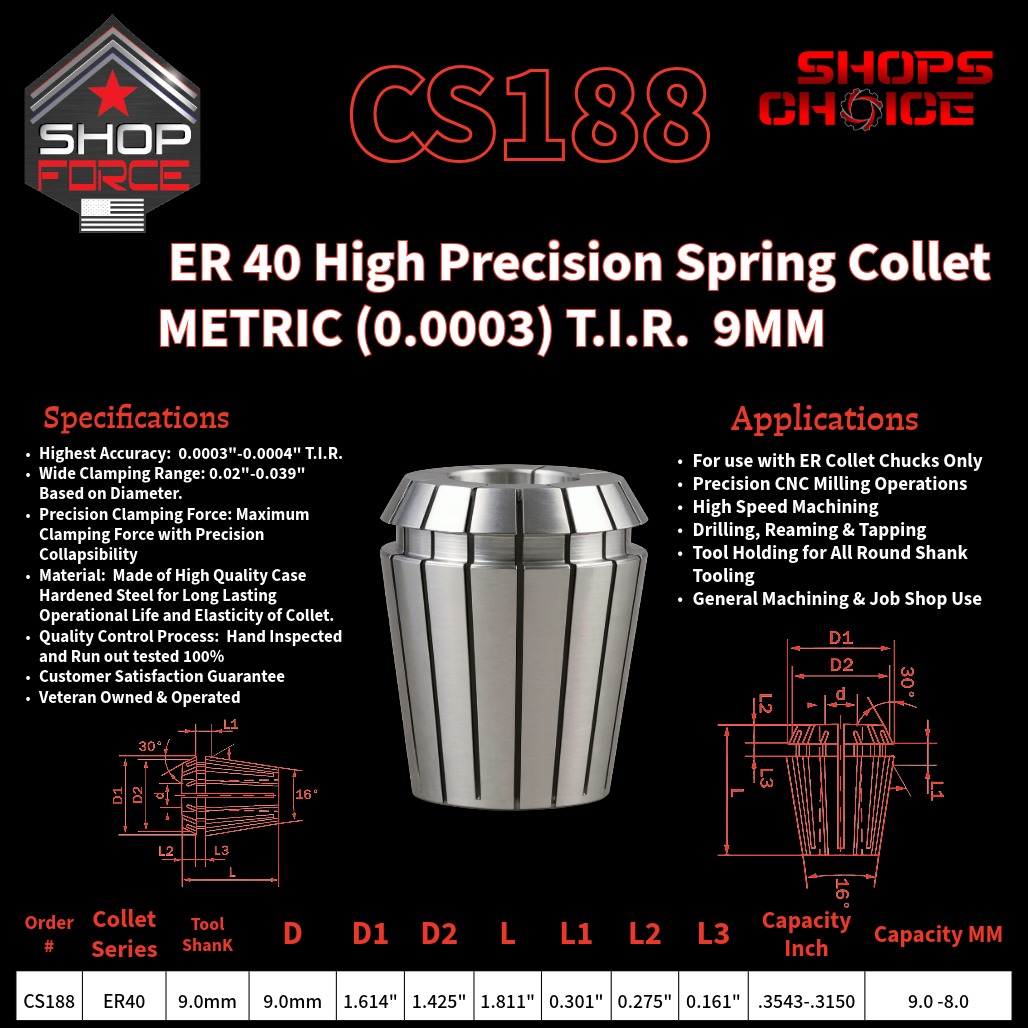

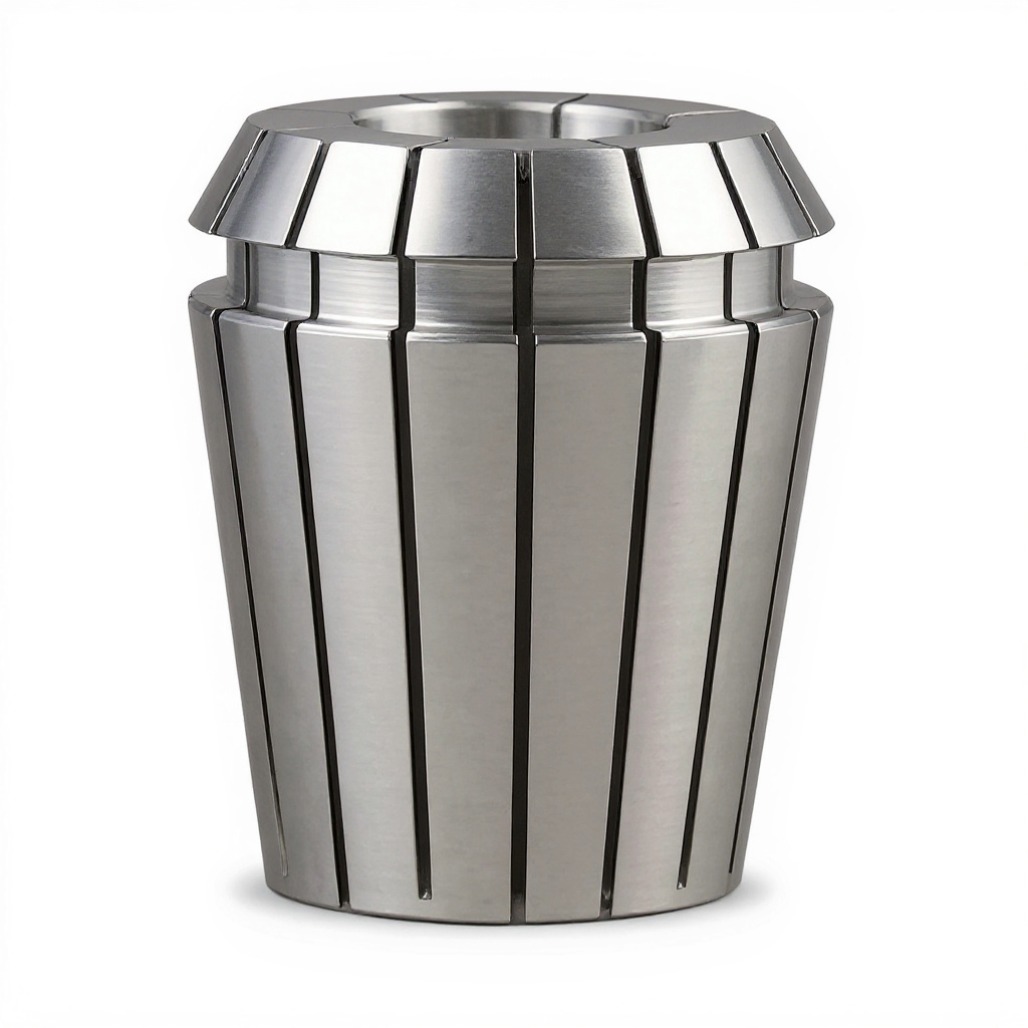

Shop-Force ER 40 High Precision Spring Collet Metric Shop’sChoice™ 9mm. Designed for accurate, repeatable tool holding in ER collet chuck systems for precision machining applications.
Specifications & Tolerances
- HIGHEST ACCURACY: Collet Accuracy: 0.0003"-0.0004" T.I.R
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force with Precision Collapsability
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications

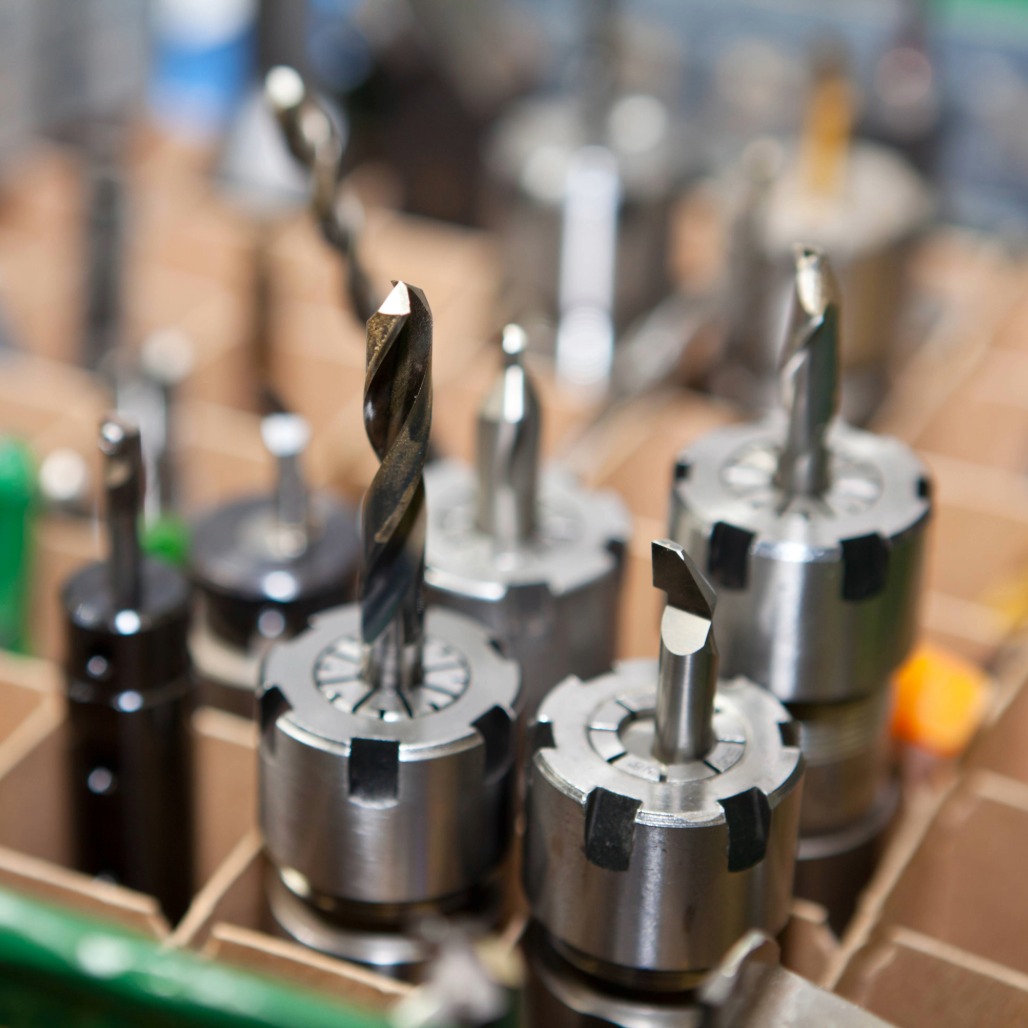

- For Use with ER Collet Chucks

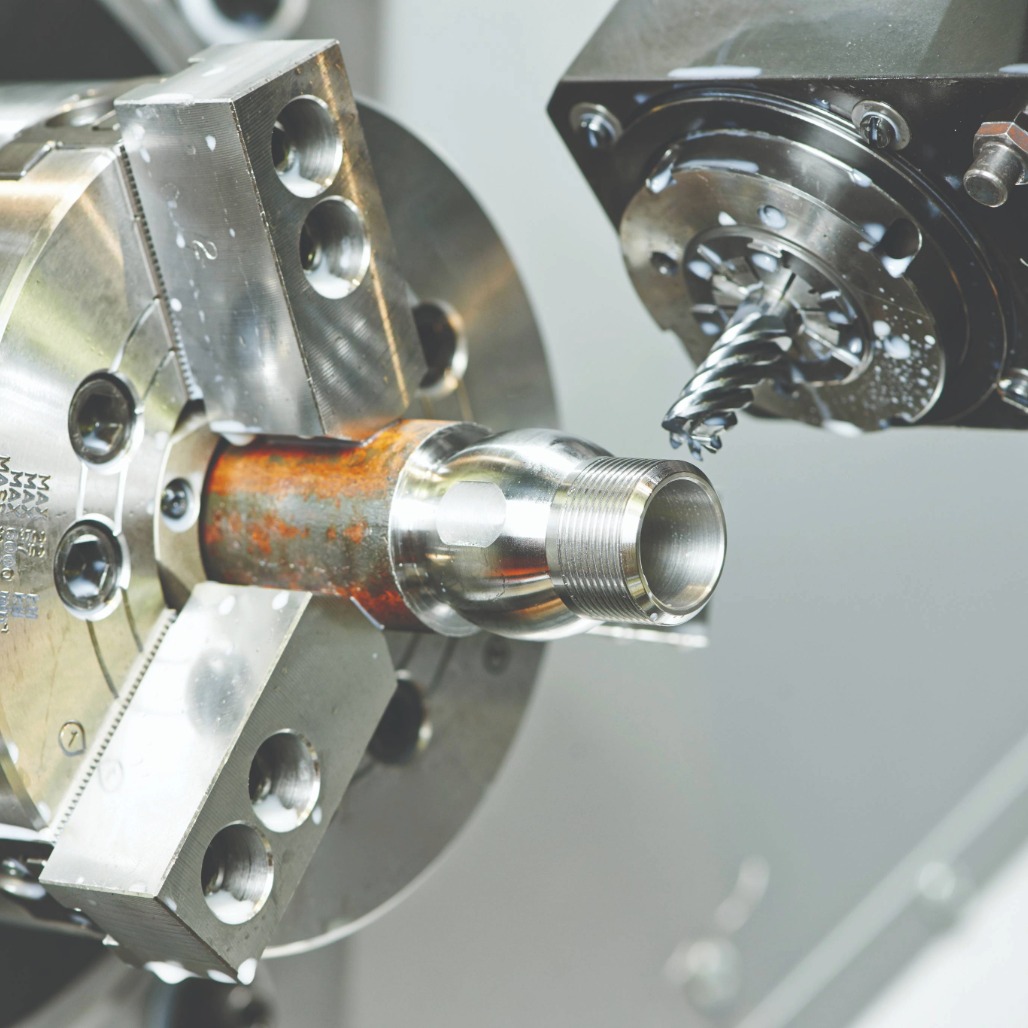

- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping

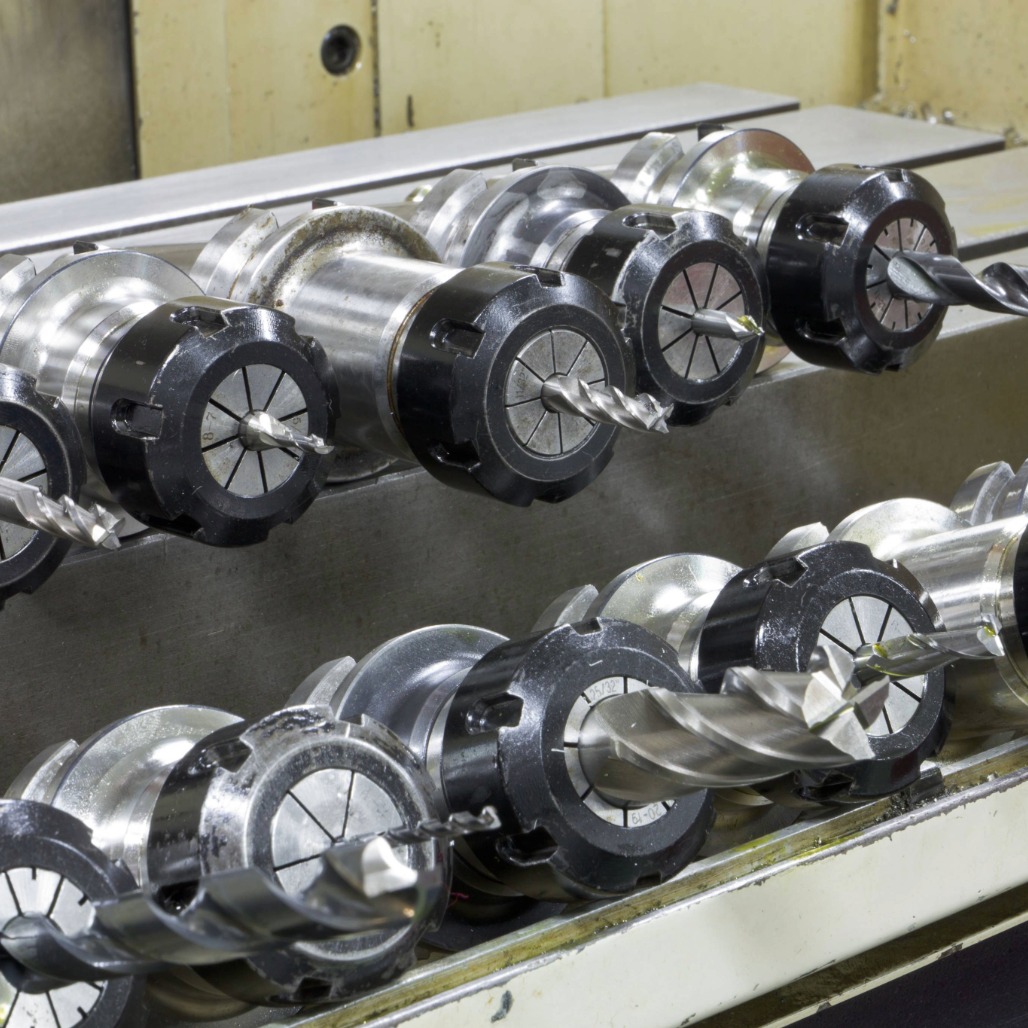

- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

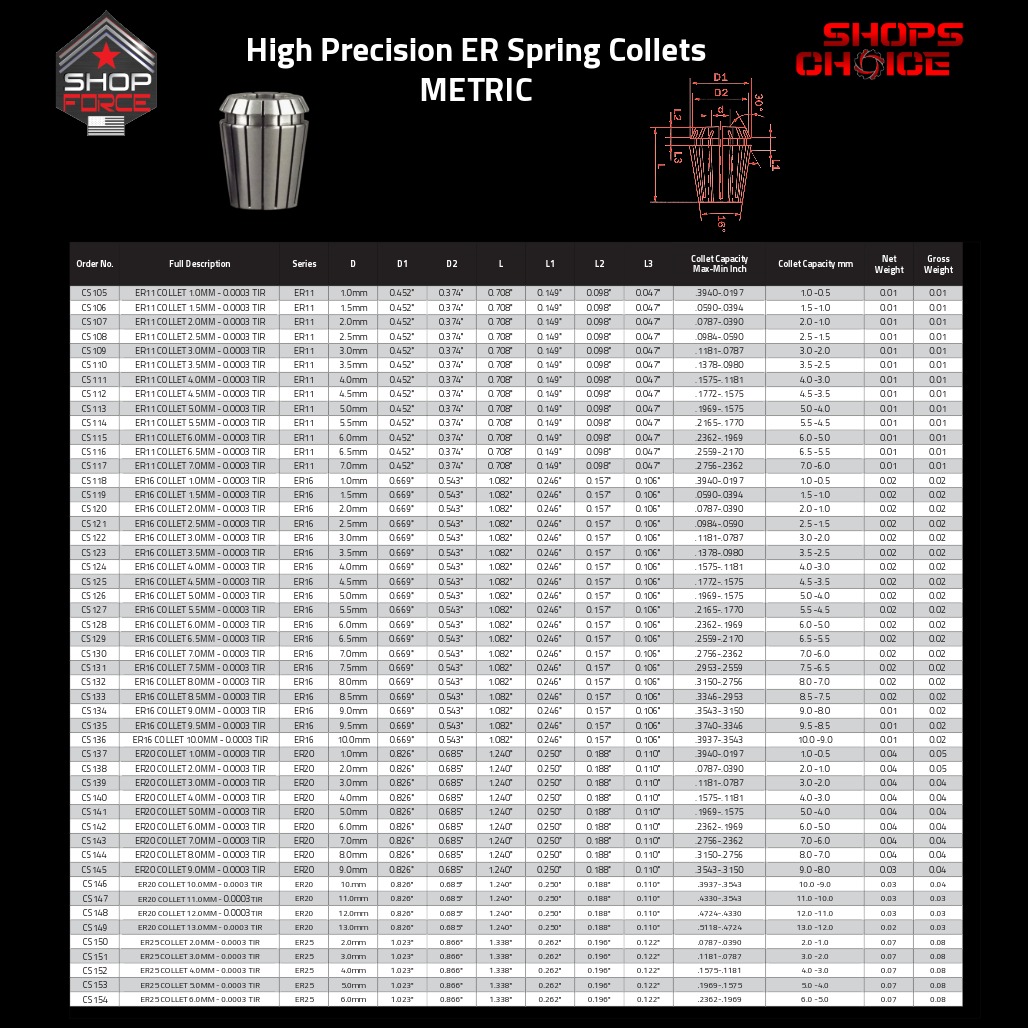

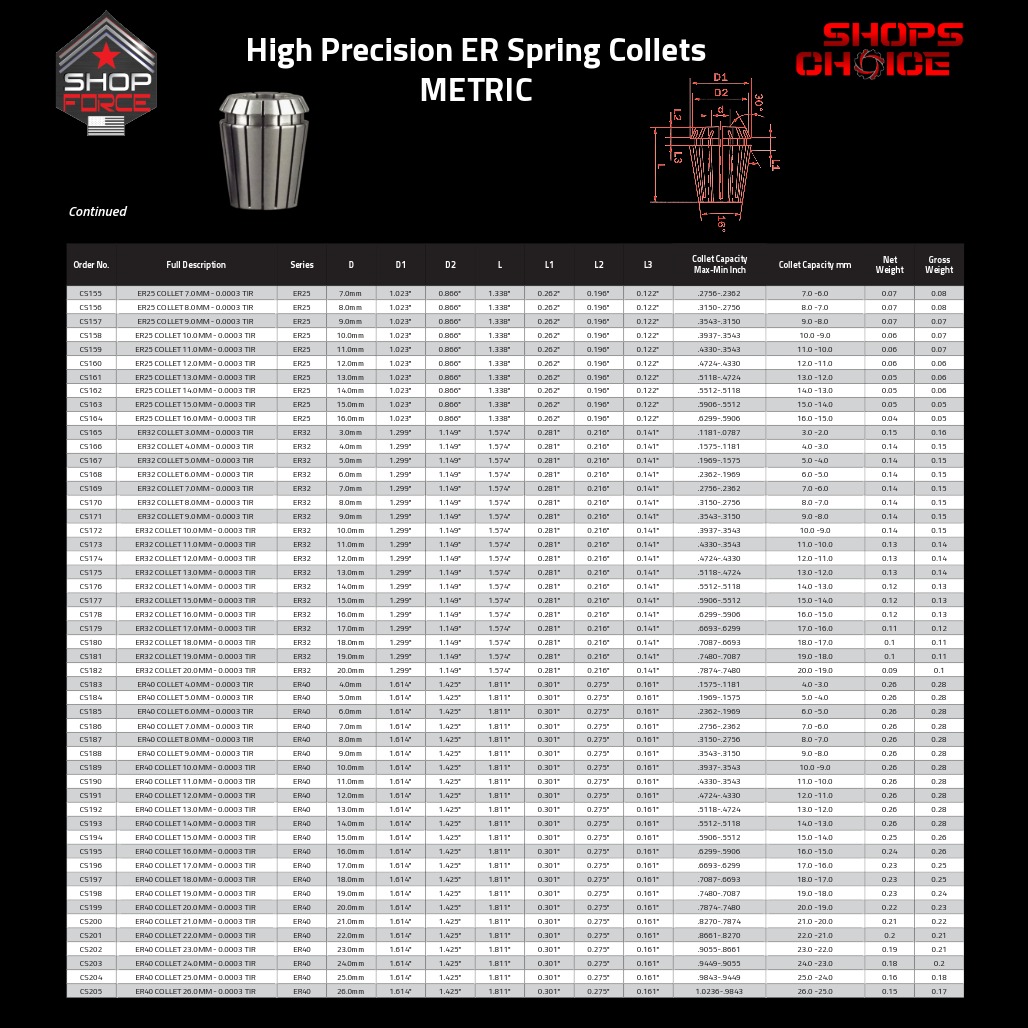

High Precision Metric ER40 ER Collets — Complete Size Chart
| Order# | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity Max-Min MM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS183 | ER40 | 4.0mm | 4.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .1575-.1181 | 4.0 -3.0 |
| CS184 | ER40 | 5.0mm | 5.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .1969-.1575 | 5.0 -4.0 |
| CS185 | ER40 | 6.0mm | 6.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .2362-.1969 | 6.0 -5.0 |
| CS186 | ER40 | 7.0mm | 7.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .2756-.2362 | 7.0 -6.0 |
| CS187 | ER40 | 8.0mm | 8.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .3150-.2756 | 8.0 -7.0 |
| CS188 | ER40 | 9.0mm | 9.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .3543-.3150 | 9.0 -8.0 |
| CS189 | ER40 | 10.0mm | 10.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .3937-.3543 | 10.0 -9.0 |
| CS190 | ER40 | 11.0mm | 11.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .4330-.3543 | 11.0 -10.0 |
| CS191 | ER40 | 12.0mm | 12.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .4724-.4330 | 12.0 -11.0 |
| CS192 | ER40 | 13.0mm | 13.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .5118-.4724 | 13.0 -12.0 |
| CS193 | ER40 | 14.0mm | 14.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .5512-.5118 | 14.0 -13.0 |
| CS194 | ER40 | 15.0mm | 15.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .5906-.5512 | 15.0 -14.0 |
| CS195 | ER40 | 16.0mm | 16.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .6299-.5906 | 16.0 -15.0 |
| CS196 | ER40 | 17.0mm | 17.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .6693-.6299 | 17.0 -16.0 |
| CS197 | ER40 | 18.0mm | 18.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .7087-.6693 | 18.0 -17.0 |
| CS198 | ER40 | 19.0mm | 19.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .7480-.7087 | 19.0 -18.0 |
| CS199 | ER40 | 20.0mm | 20.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .7874-.7480 | 20.0 -19.0 |
| CS200 | ER40 | 21.0mm | 21.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .8270-.7874 | 21.0 -20.0 |
| CS201 | ER40 | 22.0mm | 22.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .8661-.8270 | 22.0 -21.0 |
| CS202 | ER40 | 23.0mm | 23.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .9055-.8661 | 23.0 -22.0 |
| CS203 | ER40 | 24.0mm | 24.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .9449-.9055 | 24.0 -23.0 |
| CS204 | ER40 | 25.0mm | 25.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | .9843-.9449 | 25.0 -24.0 |
| CS205 | ER40 | 26.0mm | 26.0mm | 1.614" | 1.425" | 1.811" | 0.301" | 0.275" | 0.161" | 1.0236-.9843 | 26.0 -25.0 |
Shop-Force Quality
Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
