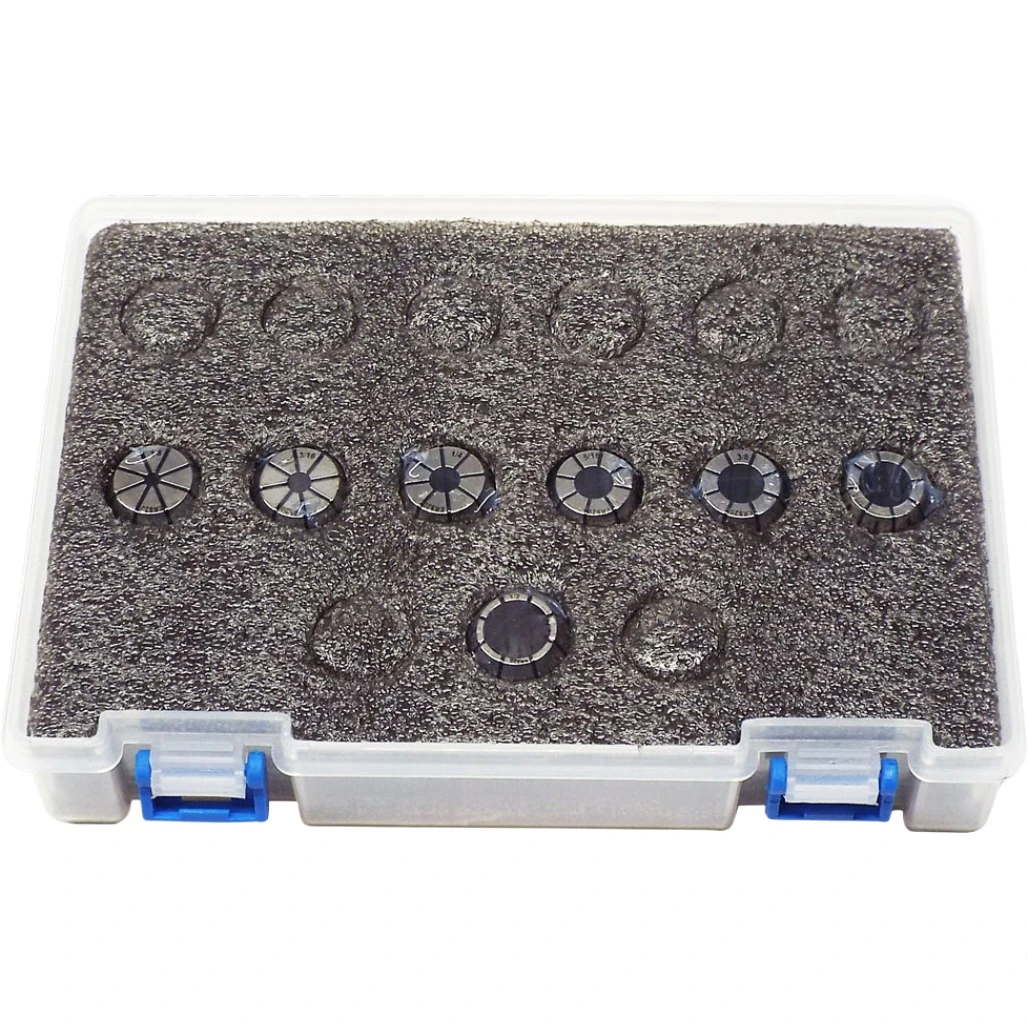

ER20 STEEL SEALED SPRING COLLET INCH SET 1/8-1/2" - CSS175

ER20 STEEL SEALED SPRING COLLET INCH SET 1/8-1/2" - CSS175 - Image 2

ER20 STEEL SEALED SPRING COLLET INCH SET 1/8-1/2" - CSS175 - Image 3

ER20 STEEL SEALED SPRING COLLET INCH SET 1/8-1/2″ – CSS175

$189.02

SKU: CSS175

Availability: 6 in stock

Shop-Force Steel Sealed ER20 Inch Collet Set. Designed for coolant-through precision toolholding and dependable performance in CNC machining applications.

Specifications & Tolerances

PRECISION ACCURACY: Collet Accuracy : 0.0003"-0.0004" T.I.R
SPECIAL DESIGN: Eliminates Sealed Plugs and Coolant Discs
COOLANT THROUGH SEALED: Manufactured with Precision Coolant Slots within collet.
COOLANT PRESSURE: Allowable Max Pressure is 1500 PSI.
USE OF PRODUCT5: For optimal collet performance use on size shank diameter ONLY. Non-nominal sizes will perform but you may see small amount of leaking on collet.
Customer Satisfaction Guarantee
Veteran Owned and Operated

Applications

For Use with ER Collet Chucks
Precision CNc Milling Operations
High-Speed Machining (HSM)
Drilling, Reaming & Tapping
Tool Holding for all Round Shank Tooling
General Machining & Job Shop Use.

Order#	Collet Series	# of Pieces	Increments	Sizes in Set
CSS174	ER16	10	1/32"	1/8”, 5/32”, 3/16”, 7/32”, 1/4”, 9/32”, 5/16”, 11/32”, 3/8”, 13/32”
CSS175	ER20	7	1/16"	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”
CSS176	ER25	9	1/16"	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”
CSS177	ER32	12	1/16"	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16"
CSS178	ER32	18	1/32"	7/32”, 1/4”, 9/32”, 5/16”, 11/32”, 3/8”, 13/32”, 7/16”, 15/32”, 1/2”, 17/32”, 9/16”, 19/32”, 5/8”, 21/32”, 11/16”, 23/32”, 3/4”
CSS179	ER40	15	1/16"	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1”

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
