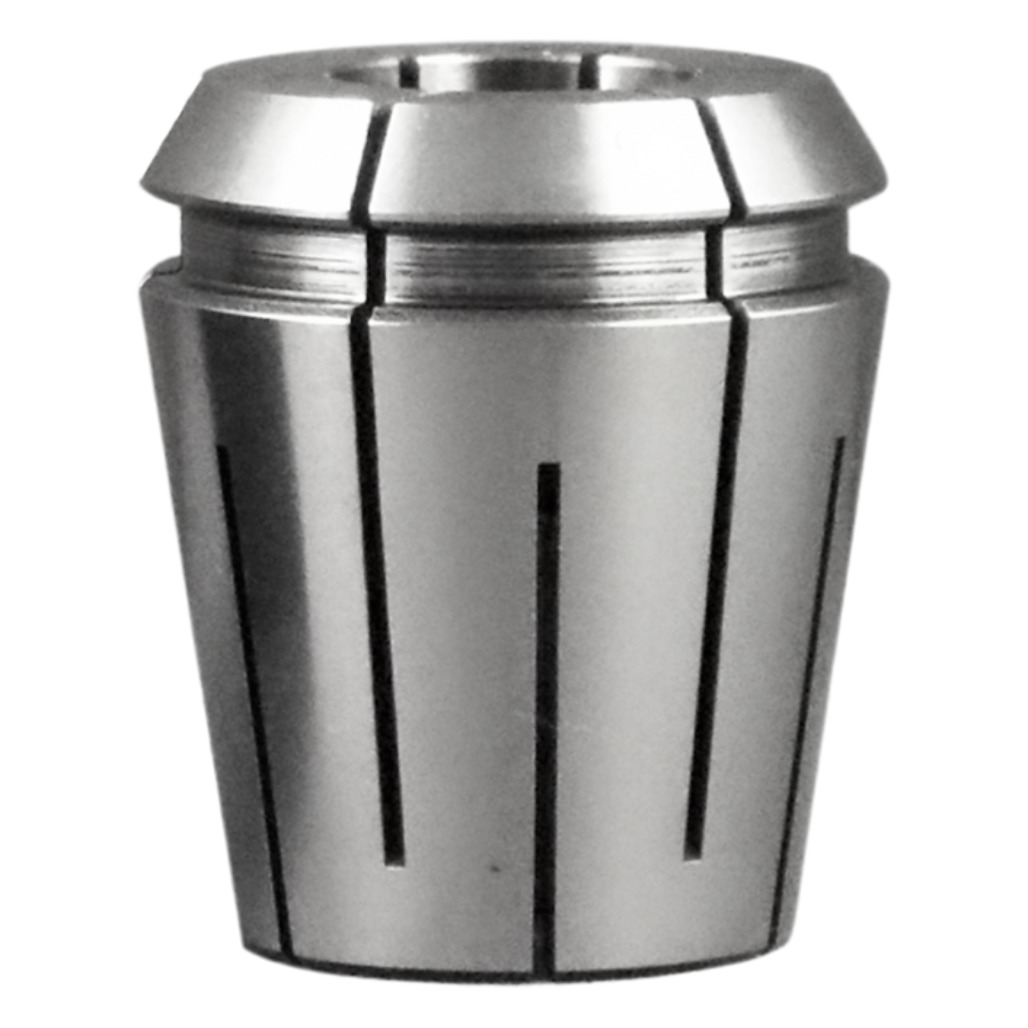

ER25 STEEL SEALED SPRING COLLET INCH 9/16″ – CSS64
$31.76
SKU: CSS64
Availability: 6 in stock
Shop-Force Steel Sealed ER25 Inch ER Spring Collet. Designed for coolant-through precision toolholding and dependable performance in CNC machining applications.
Specifications & Tolerances
- PRECISION ACCURACY: Collet Accuracy : 0.0003"-0.0004" T.I.R
- SPECIAL DESIGN: Eliminates Sealed Plugs and Coolant Discs
- COOLANT THROUGH SEALED: Manufactured with Precision Coolant Slots within collet.
- COOLANT PRESSURE: Allowable Max Pressure is 1500 PSI.
- USE OF PRODUCT5: For optimal collet performance use on size shank diameter ONLY. Non-nominal sizes will perform but you may see small amount of leaking on collet.
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks
- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

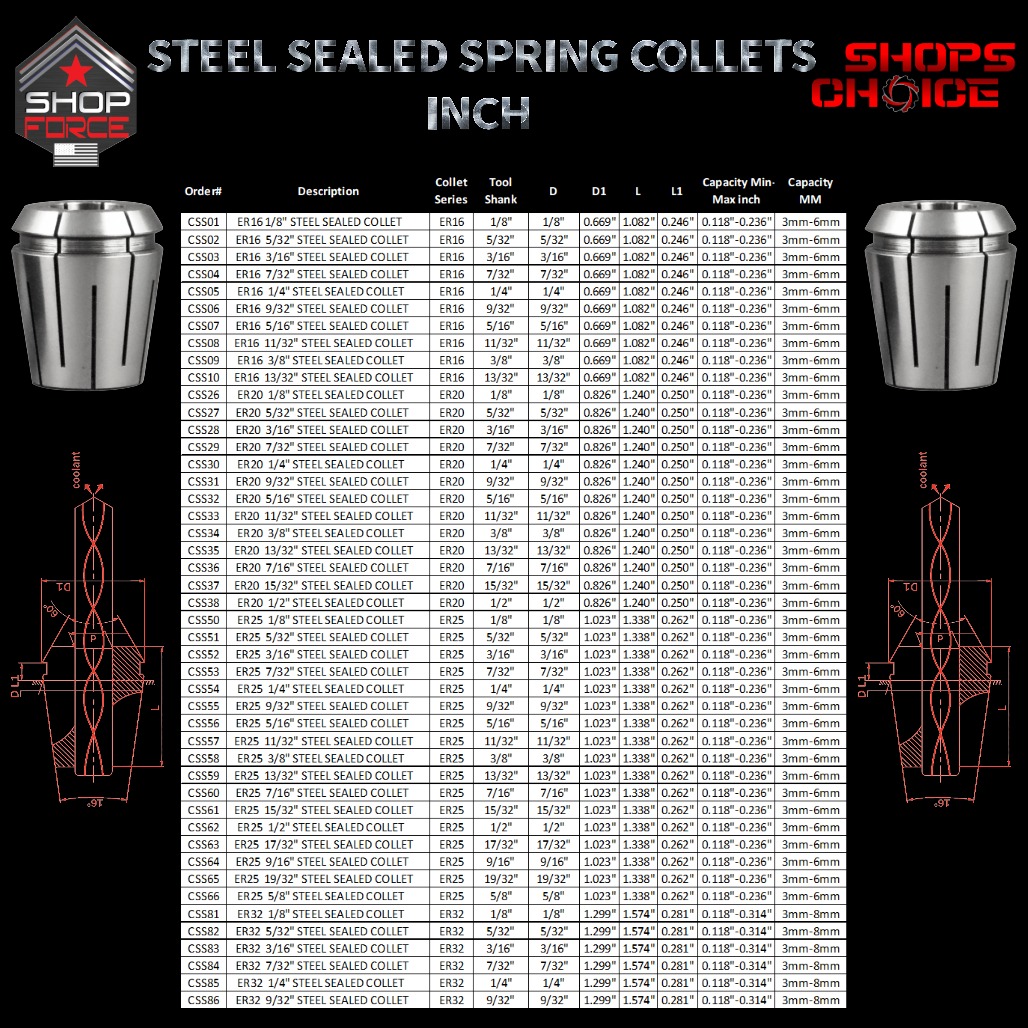

| Order# | Description | Collet Series | Tool Shank | D | D1 | L | L1 | Capacity Min-Max inch | Capacity MM | Net Weight | Gross Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSS50 | ER25 1/8" STEEL SEALED COLLET | ER25 | 1/8" | 1/8" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS51 | ER25 5/32" STEEL SEALED COLLET | ER25 | 5/32" | 5/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS52 | ER25 3/16" STEEL SEALED COLLET | ER25 | 3/16" | 3/16" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS53 | ER25 7/32" STEEL SEALED COLLET | ER25 | 7/32" | 7/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS54 | ER25 1/4" STEEL SEALED COLLET | ER25 | 1/4" | 1/4" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS55 | ER25 9/32" STEEL SEALED COLLET | ER25 | 9/32" | 9/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS56 | ER25 5/16" STEEL SEALED COLLET | ER25 | 5/16" | 5/16" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.09 |
| CSS57 | ER25 11/32" STEEL SEALED COLLET | ER25 | 11/32" | 11/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.08 | 0.08 |
| CSS58 | ER25 3/8" STEEL SEALED COLLET | ER25 | 3/8" | 3/8" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.07 | 0.08 |
| CSS59 | ER25 13/32" STEEL SEALED COLLET | ER25 | 13/32" | 13/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.07 | 0.08 |
| CSS60 | ER25 7/16" STEEL SEALED COLLET | ER25 | 7/16" | 7/16" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.07 | 0.08 |
| CSS61 | ER25 15/32" STEEL SEALED COLLET | ER25 | 15/32" | 15/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.07 | 0.08 |
| CSS62 | ER25 1/2" STEEL SEALED COLLET | ER25 | 1/2" | 1/2" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.06 | 0.07 |
| CSS63 | ER25 17/32" STEEL SEALED COLLET | ER25 | 17/32" | 17/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.06 | 0.07 |
| CSS64 | ER25 9/16" STEEL SEALED COLLET | ER25 | 9/16" | 9/16" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.06 | 0.06 |
| CSS65 | ER25 19/32" STEEL SEALED COLLET | ER25 | 19/32" | 19/32" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.05 | 0.06 |
| CSS66 | ER25 5/8" STEEL SEALED COLLET | ER25 | 5/8" | 5/8" | 1.023" | 1.338" | 0.262" | 0.118"-0.236" | 3mm-6mm | 0.05 | 0.05 |
Shop-Force Quality
Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
