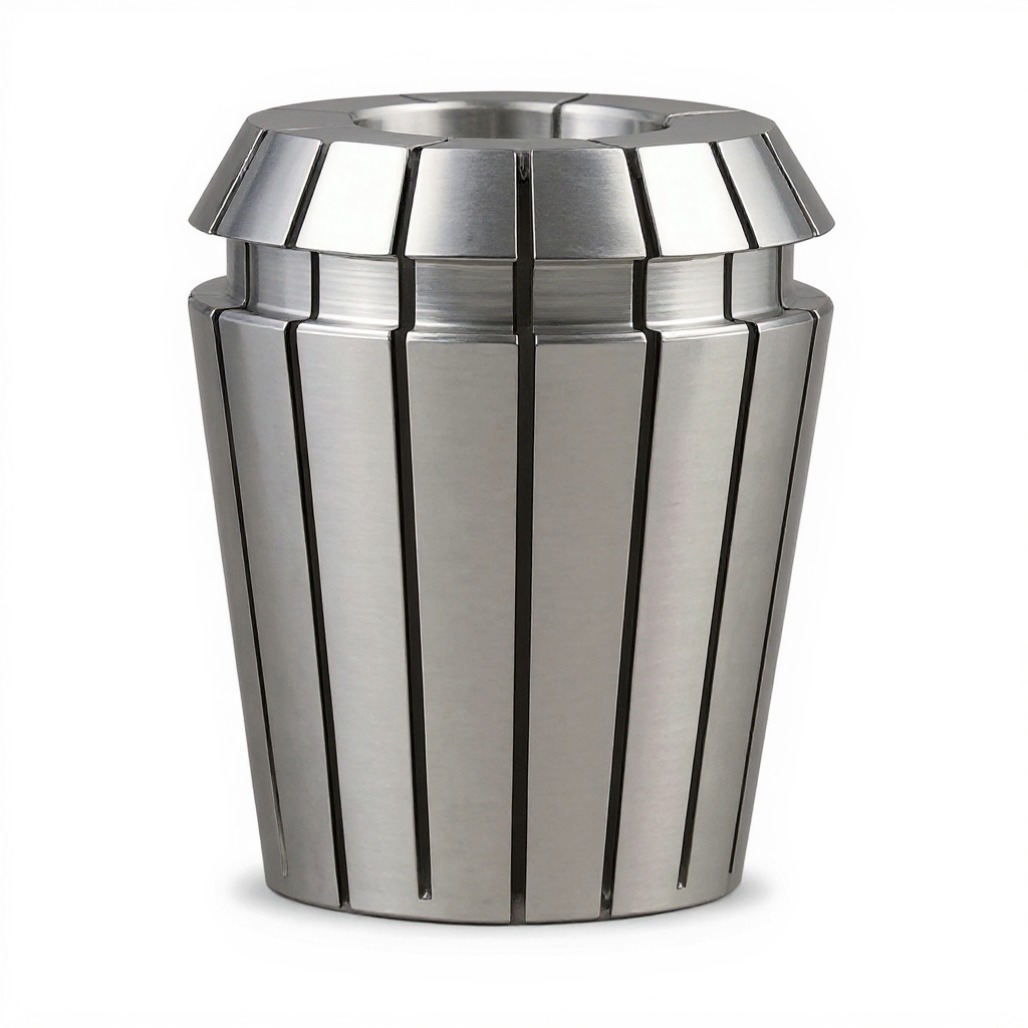

ER25 ULTRA HIGH PRECISION SPRING COLLET INCH 9/16″ – CP043
$23.78
SKU: CP043
Availability: 11 in stock
ER25 ULTRA Precision Spring Collet Shop’sChoice™ 9/16″. Ultra Precision ER spring collet for accurate, secure toolholding in professional machining applications.
Specifications & Tolerances
- HIGHEST ACCURACY: Ultra Precision Spring Collets 0.0001"-0.0002" T.I.R.
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter.
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force around tool with Precision Collapsability.
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks
- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

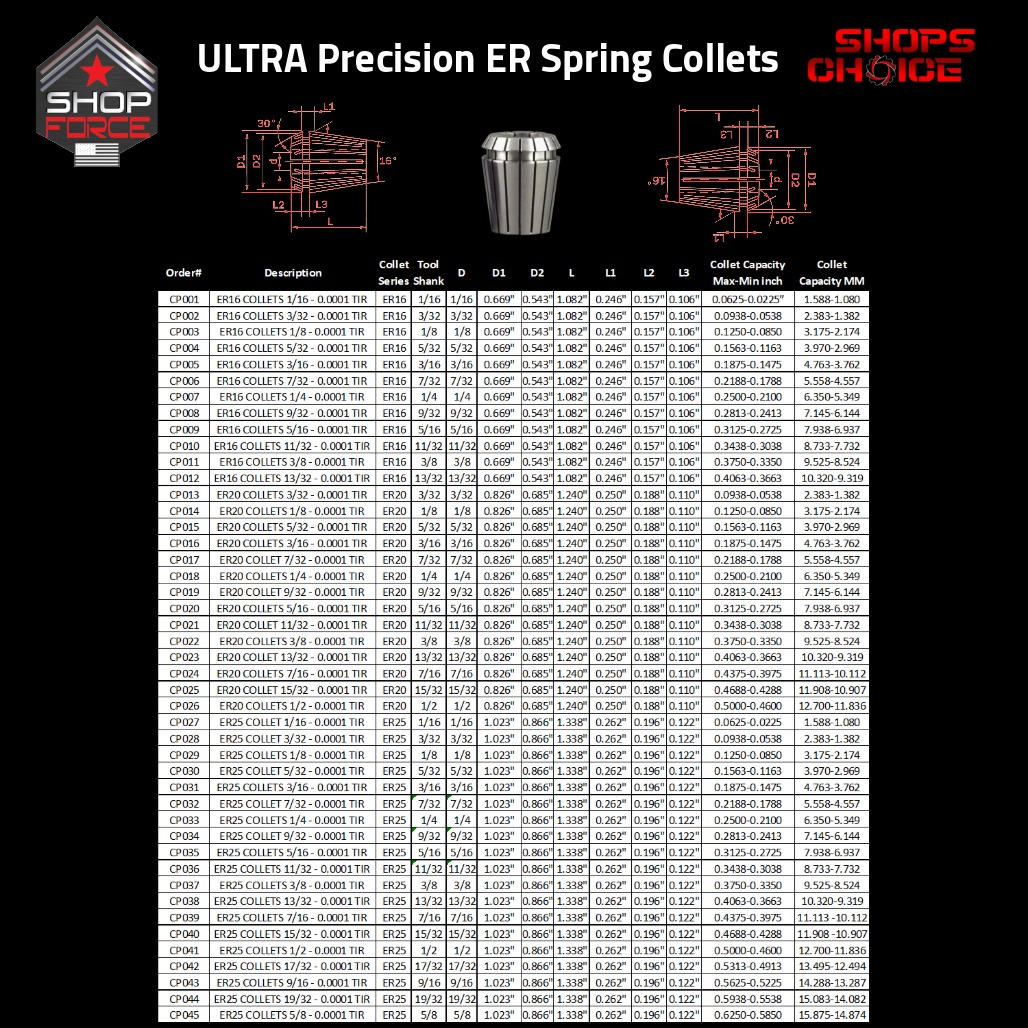

| Order# | Description | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CP027 | ER25 COLLET 1/16 – 0.0001 TIR | ER25 | 1/16 | 1/16 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.0625-0.0225 | 1.588-1.080 |
| CP028 | ER25 COLLET 3/32 – 0.0001 TIR | ER25 | 3/32 | 3/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.0938-0.0538 | 2.383-1.382 |
| CP029 | ER25 COLLETS 1/8 – 0.0001 TIR | ER25 | 1/8 | 1/8 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.1250-0.0850 | 3.175-2.174 |
| CP030 | ER25 COLLET 5/32 – 0.0001 TIR | ER25 | 5/32 | 5/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.1563-0.1163 | 3.970-2.969 |
| CP031 | ER25 COLLETS 3/16 – 0.0001 TIR | ER25 | 3/16 | 3/16 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.1875-0.1475 | 4.763-3.762 |
| CP032 | ER25 COLLET 7/32 – 0.0001 TIR | ER25 | 7/32 | 7/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.2188-0.1788 | 5.558-4.557 |
| CP033 | ER25 COLLETS 1/4 – 0.0001 TIR | ER25 | 1/4 | 1/4 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.2500-0.2100 | 6.350-5.349 |
| CP034 | ER25 COLLET 9/32 – 0.0001 TIR | ER25 | 9/32 | 9/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.2813-0.2413 | 7.145-6.144 |
| CP035 | ER25 COLLETS 5/16 – 0.0001 TIR | ER25 | 5/16 | 5/16 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.3125-0.2725 | 7.938-6.937 |
| CP036 | ER25 COLLETS 11/32 – 0.0001 TIR | ER25 | 11/32 | 11/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.3438-0.3038 | 8.733-7.732 |
| CP037 | ER25 COLLETS 3/8 – 0.0001 TIR | ER25 | 3/8 | 3/8 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.3750-0.3350 | 9.525-8.524 |
| CP038 | ER25 COLLETS 13/32 – 0.0001 TIR | ER25 | 13/32 | 13/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.4063-0.3663 | 10.320-9.319 |
| CP039 | ER25 COLLETS 7/16 – 0.0001 TIR | ER25 | 7/16 | 7/16 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.4375-0.3975 | 11.113 -10.112 |
| CP040 | ER25 COLLETS 15/32 – 0.0001 TIR | ER25 | 15/32 | 15/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.4688-0.4288 | 11.908 -10.907 |
| CP041 | ER25 COLLETS 1/2 – 0.0001 TIR | ER25 | 1/2 | 1/2 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.5000-0.4600 | 12.700-11.836 |
| CP042 | ER25 COLLETS 17/32 – 0.0001 TIR | ER25 | 17/32 | 17/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.5313-0.4913 | 13.495-12.494 |
| CP043 | ER25 COLLETS 9/16 – 0.0001 TIR | ER25 | 9/16 | 9/16 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.5625-0.5225 | 14.288-13.287 |
| CP044 | ER25 COLLETS 19/32 – 0.0001 TIR | ER25 | 19/32 | 19/32 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.5938-0.5538 | 15.083-14.082 |
| CP045 | ER25 COLLETS 5/8 – 0.0001 TIR | ER25 | 5/8 | 5/8 | 1.023" | 0.866" | 1.338" | 0.262" | 0.196" | 0.122" | 0.6250-0.5850 | 15.875-14.874 |
