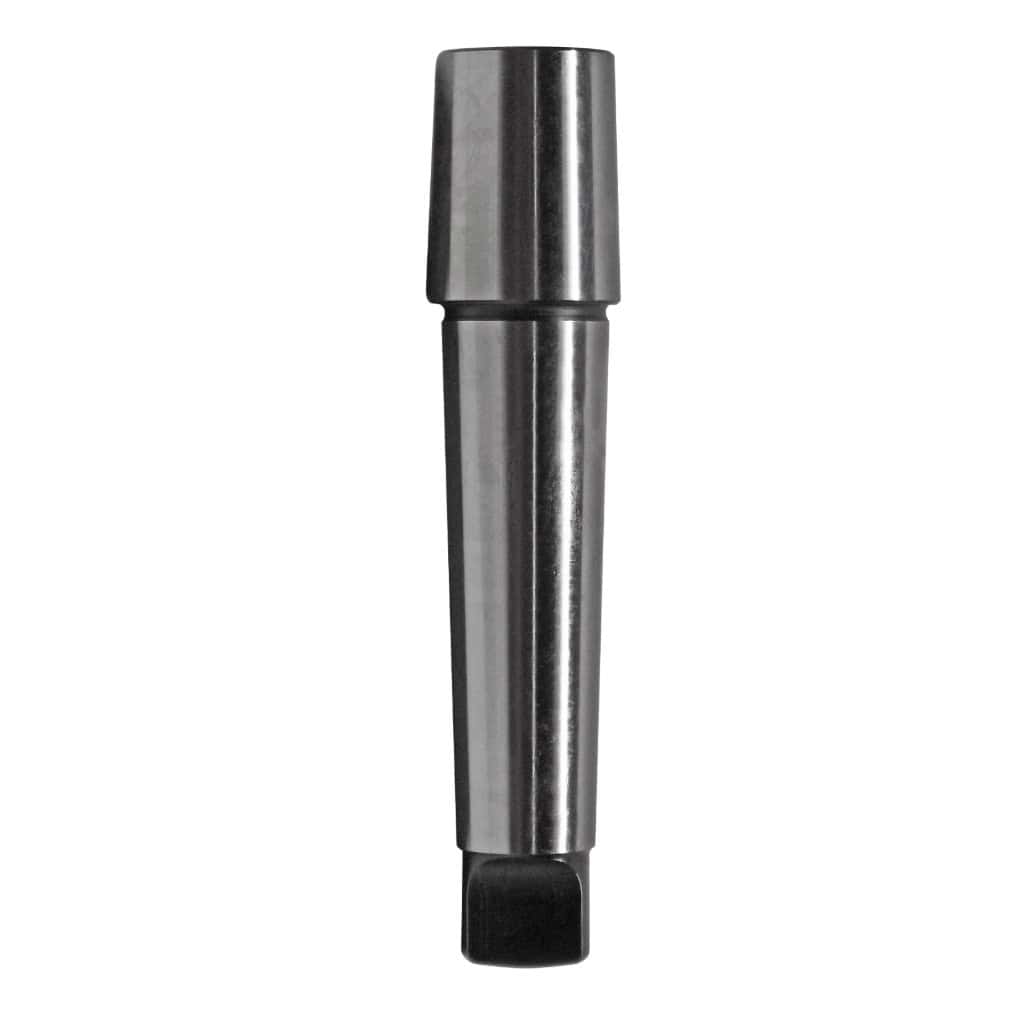

MT4 to JT5 Drill Chuck Arbor with Tang – A0016 – Shop-Force

$25.27

SKU: A0016

Availability: 24 in stock

MT4 to JT5 Drill Chuck Arbor With Tang- Shop’sChoice™ (A0016). Precision-ground Morse taper to Jacobs taper drill chuck arbor with tang, designed for secure drill chuck mounting on compatible machines.

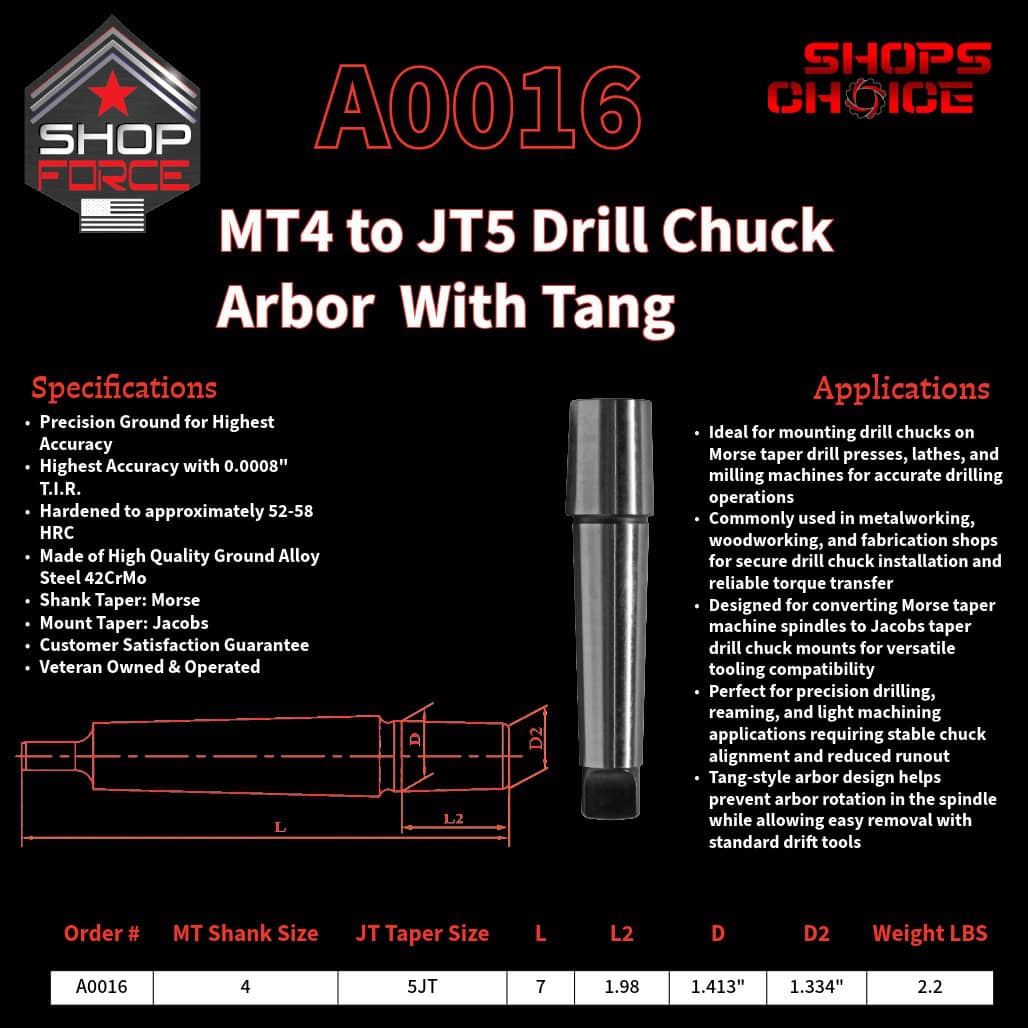

Specifications & Tolerances

HIGHEST ACCURACY: Precision Ground
HIGHEST TOLERANCE: Taper to Shank Runout < 0.0008"
Hardened to approximately 52-58 HRC
Shank Taper: Morse Taper
Mount Taper: Jacobs Taper
Made of High Quality Ground Alloy Steel 42CrMo
Customer Satisfaction Guarantee
Veteran Owned & Operated

Applications

Ideal for mounting drill chucks on Morse taper drill presses, lathes, and milling machines for accurate drilling operations
Commonly used in metalworking, woodworking, and fabrication shops for secure drill chuck installation and reliable torque transfer
Designed for converting Morse taper machine spindles to Jacobs taper drill chuck mounts for versatile tooling compatibility
Perfect for precision drilling, reaming, and light machining applications requiring stable chuck alignment and reduced runout
Tang-style arbor design helps prevent arbor rotation in the spindle while allowing easy removal with standard drift tools

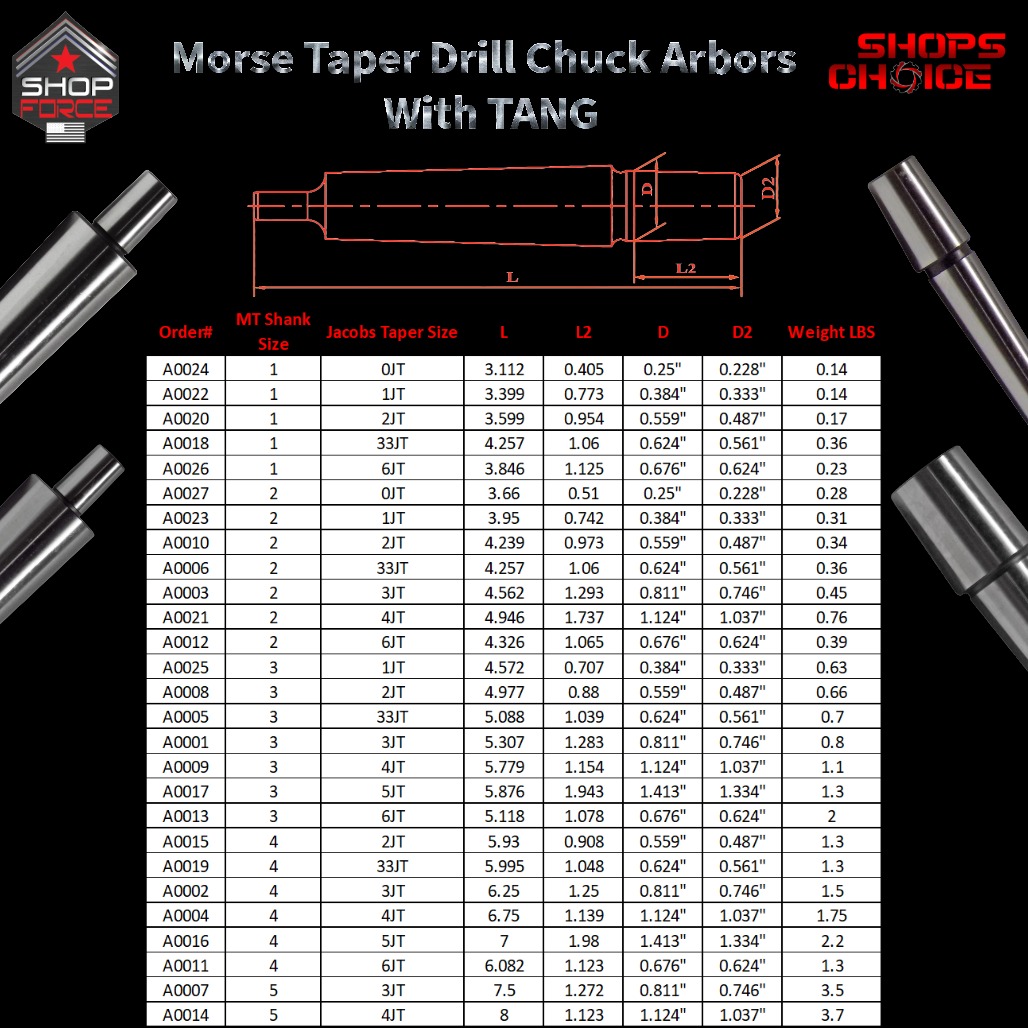

MT4 Morse Taper With Tang Arbor Comparison
Order#	MT Size	JT Size	L	L2	D	D2	Weight LBS
A0015	4	2JT	5.93	0.908	0.559"	0.487"	1.3
A0019	4	33JT	5.995	1.048	0.624"	0.561"	1.3
A0002	4	3JT	6.25	1.25	0.811"	0.746"	1.5
A0004	4	4JT	6.75	1.139	1.124"	1.037"	1.75
A0016	4	5JT	7	1.98	1.413"	1.334"	2.2
A0011	4	6JT	6.082	1.123	0.676"	0.624"	1.3

Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
